BODYWORK

Parts list

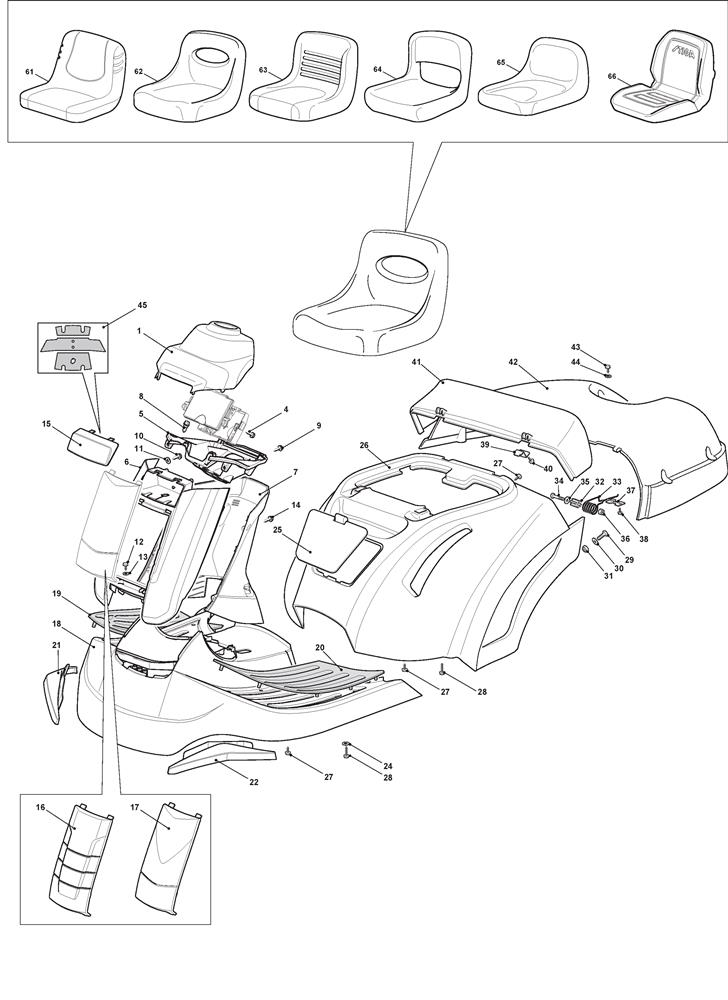

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327109535/0DASHBOARD COVER [GREY]£32.45 Add to
004112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
005327787084/0LIGHT AND PC BOARD SUPPORT£19.36 Add to
006327787114/0FRONT DASHBOARD SUPPORT [GREEN]£42.53 Add to
007327787104/0REAR DASHBOARD SUPPORT [BLACK]£45.26 Add to
008125943010/0FLANGED SCREW£2.06 Add to
009112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
010112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
011112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
012112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
013112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
014112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
015325410913/0HEADLIGHT GRILL£11.04 Add to
018327110458/2FOOTBOARDS COVER [GREEN]£150.18 Add to
019127110304/0RIGHT FOOTBOARD COVER [BLACK]£10.23 Add to
020127110305/1LEFT FOOTBOARD COVER [BLACK]£10.23 Add to
021327110501/0RIGHT FRONT COVER [BLACK]£7.78 Add to
022327110502/0LEFT FRONT COVER [BLACK]£8.52 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025327109528/0FRONT COVER CAP [GREEN]£11.67 Add to
026384110164/1WHEELS COVER [GREEN]£177.43 Add to
027112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
028112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
029112791213/1SCREW M6 X 18£1.74 Add to
030112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
031112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
032127047003/0BUSH£2.06 Add to
033127430551/1SPRING£3.15 Add to
034112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
035112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
036112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
037327546001/0SPRING PLATE£1.79 Add to
038112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
039327546003/0COVER PLATE£2.06 Add to
040112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
041327110461/0FIXED GRASSCATCHER COVER [GREEN]£41.97 Add to
042327110462/0GRASSCATCHER TOP [GREEN]£71.33 Add to
043112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
044112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
045114366202/0LIGHT REFLECTOR DECAL£4.52 Add to
061125722463/0SEAT£205.11 Add to
