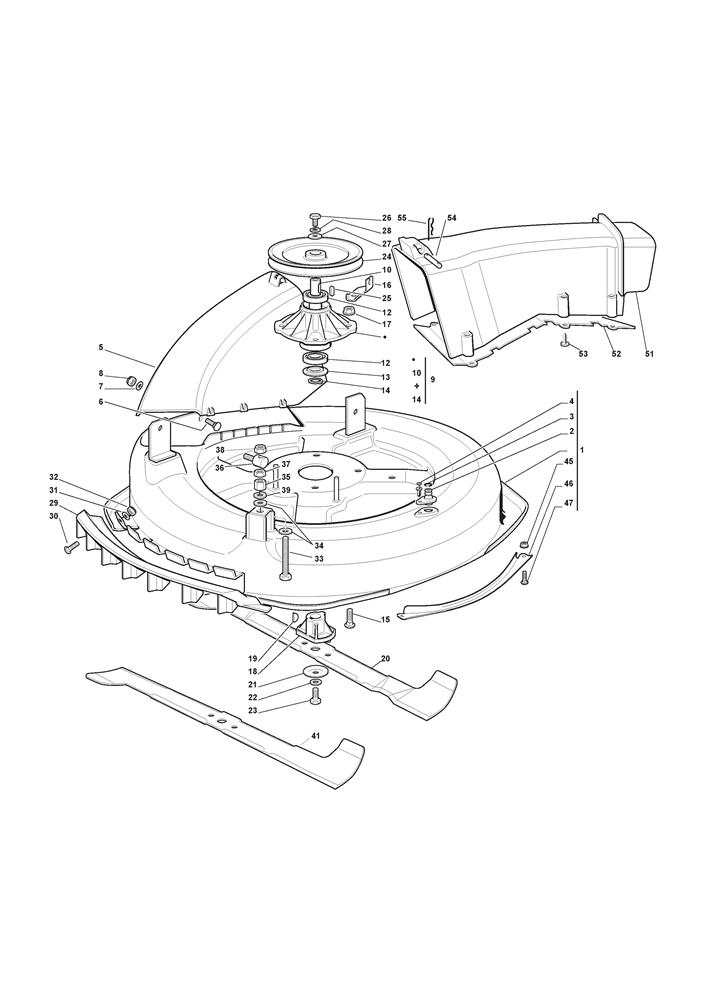

CUTTING PLATE 1

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384564111/0CUTTER DECK CASING F72 [BLACK]£463.60 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
005327045000/1DECK INLET CHUTE£18.20 Add to
006112815210/0SCREW M6 x 20£2.06 Add to
007112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
009384207250/0BLADE SHAFT ASSEMBLY£105.21 Add to
010127023000/0BLADE SHAFT£34.35 Add to
013325160501/1DUST COVER WASHER£2.06 Add to
014112609260/0CIRCLIP D=20£2.02 Add to
015112818700/0SCREW M8 x 25£2.81 Add to
016327787067/0BLADE BRAKE SUPPORT BRACKET£3.00 Add to
017112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
018125463200/0BLADE BOSS£9.82 Add to
019112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
020184109503/0WINGED MULCHING BLADE 72cm/28"£57.95 Add to
021122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
022112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
023112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
024127604009/0BLADE SHAFT PULLEY£58.87 Add to
025112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
026112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
027125670007/0FIXING WASHER£2.06 Add to
028112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
029127488000/0AIR INTAKE GRILL£10.80 Add to
030112815200/0SCREW TTDQ M6X16£2.06 Add to
031112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033112794970/0HEX-HEAD SCREW M10 x 90£3.15 Add to
034112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
035112154250/0HEXAGONAL NUT M10£5.19 Add to
036125510007/2CONNECTING PIN£5.76 Add to
037112295200/0HEXAGON NUT M10£1.79 Add to
038112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
039112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
041184109500/0WINGED BLADE 28"/72cm£56.99 Add to
045112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
046327543009/0SIDE DECK PLATE£16.79 Add to
047112815210/0SCREW M6 x 20£2.06 Add to
051127107501/0DISCHARGE CHUTE£56.15 Add to
052327140051/1CHUTE DEFLECTOR PLATE£12.61 Add to
053112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
054127510097/1FIXING PIN£2.74 Add to
055124487997/0SPRING CLIP D=1.8£2.06 Add to
