ELECTRICAL PARTS

Parts list

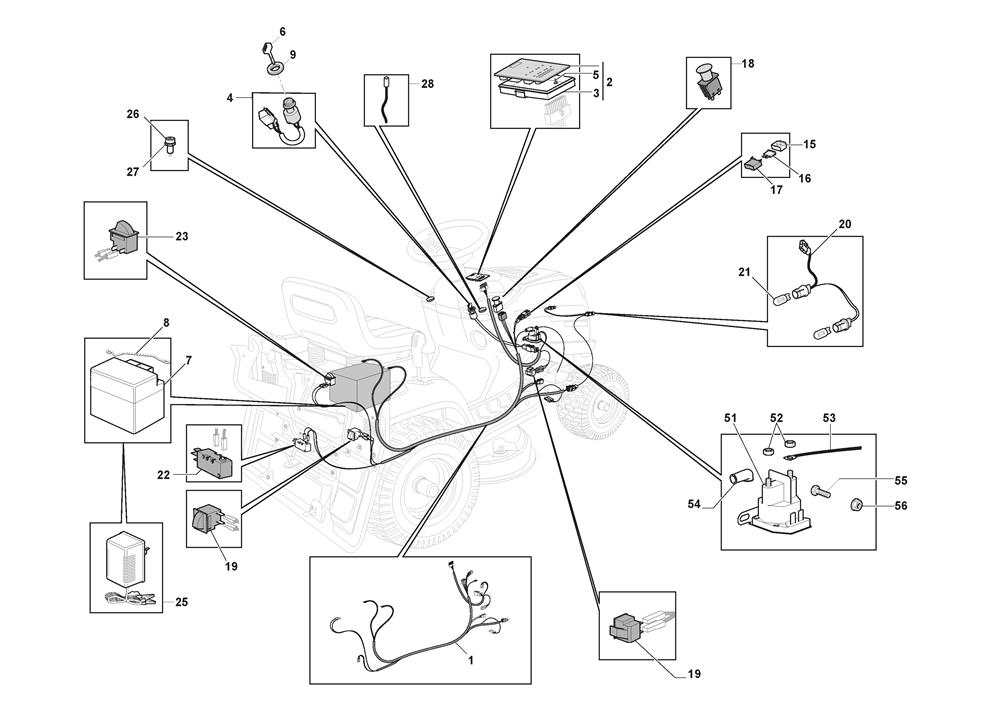

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040199/2WIRING HARNESS (MP HYDRO)£147.00 Add to
002382722472/1PC BOARD MP84 (ISO)No Returns on This item£65.13 Add to
003325600090/1PC BOARD COVER£4.99 Add to
004118450075/1STARTING SWITCH£20.45 Add to
005112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
006118210023/0IGNITION KEY [PAIR]£6.29 Add to
007118120068/0BATTERY 12V 18AH£109.15 Add to
008125430265/1SPRING ROD£1.91 Add to
009118400863/0LOCKING RING£2.06 Add to
015133215000/0FUSE HOLDER COVER£3.83 Add to
016133340036/0FUSE 25A£2.06 Add to
016133340040/0FUSE 10A£2.47 Add to
017133500007/0FUSE HOLDER£7.64 Add to
018118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
019119410622/1MICRO SWITCH N.O.£7.10 Add to
020182040186/0HEADLIGHTS CABLE (FOR LAMP VERSION)£11.18 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
022119410605/1MICRO SWITCH£36.77 Add to
023119410623/0MICRO SWITCH N.C.£7.92 Add to
0251134-9250-01BATTERY CHARGER KIT 1.0A UK-CE PLUG£61.27 Add to
026325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
027325256250/0THREADED RING NUT£2.87 Add to
028182040174/0LED WIRING CABLE£5.87 Add to
051118736112/0SOLENOID£39.80 Add to
052112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
053125065002/0SOLENOID STARTING CABLE£10.91 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
055112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
056112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
