TRANSMISSION - K574D

Parts list

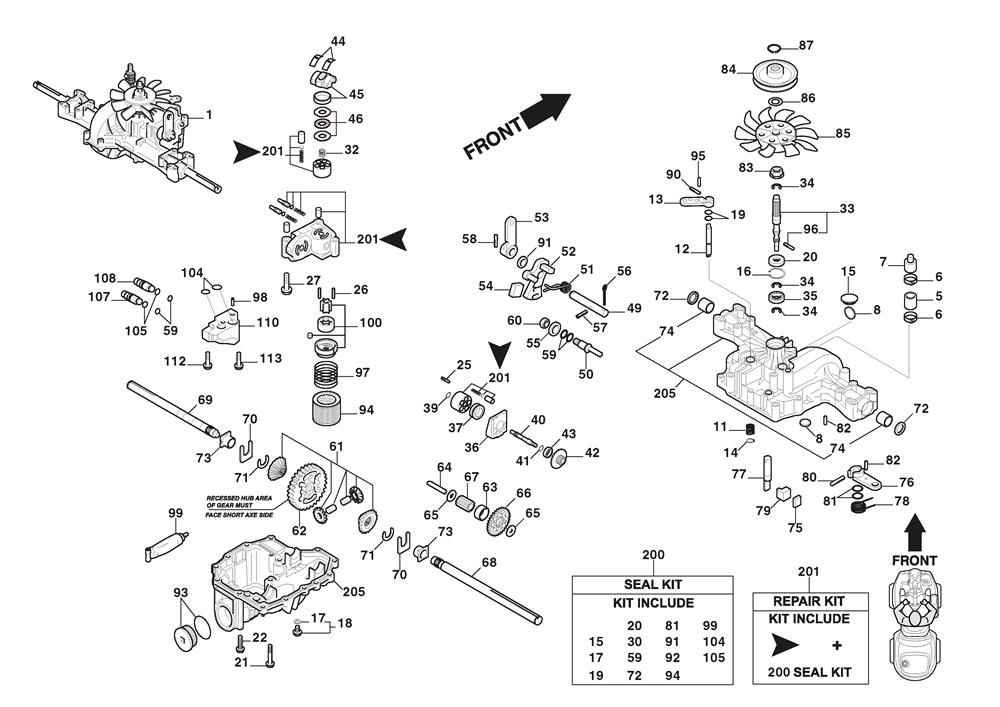

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118400975/0	HYDRO TRANSAXLE K574D	£1,635.51	Add to
005	1139-1301-01	TUBE	£9.41	Add to
006	1139-1336-01	COBRA CLIP	£5.19	Add to
007	1139-1306-01	ADAPTOR	£4.78	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
012	1139-1251-01	BY-PASS SHAFT	£34.80	Add to
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
014	1139-1161-01	RING	£1.58	Add to
016	1139-1104-01	CIRCLIP	£2.06	Add to
017	1139-1103-01	SEAL WASHER	£6.31	Add to
018	1139-1500-01	DRAIN BOLT KIT	£6.59	Add to
019	1139-1117-01	O RING	£1.50	Add to
020	1139-1119-01	SEAL 15.35.7	£5.37	Add to
025	1139-1158-01	PIN	£1.58	Add to
032	1139-1245-01	PUMP SPRING	£4.80	Add to
033	1139-1493-01	PUMP SHAFT	£101.13	Add to
034	1139-1750-01	E-RING	£2.06	Add to
035	1139-1110-01	BEARING	£10.77	Add to
036	1139-1458-01	HOUSING	£19.22	Add to
037	1139-1438-01	BEARING	£115.86	Add to
039	1139-1160-01	WASHER	£1.58	Add to
040	1139-1353-01	MOTOR SHAFT	£33.69	Add to
041	1139-1021-01	CIRCLIP	£2.06	Add to
043	1139-1453-01	BEARING	£18.75	Add to
045	1139-1067-01	SWASH PLATE ASSY	£38.19	Add to
046	1139-1508-01	THRUST BEARING KIT	£58.10	Add to
052	1139-1409-01	CONTROL ARM	£45.26	Add to
055	1139-1102-01	WASHER	£5.75	Add to
056	1139-1355-01	COTTER PIN	£2.32	Add to
057	1139-1329-01	PIN	£2.06	Add to
058	1139-1285-01	PIN	£1.58	Add to
059	1139-1115-01	O RING	£1.79	Add to
060	1139-1127-01	NUT	£3.40	Add to
061	1139-1404-01	DIFFERENTIAL GEAR KIT	£61.56	Add to
062	1139-1258-01	FINAL GEAR	£92.95	Add to
063	1139-1255-01	COLLAR	£5.46	Add to
064	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
065	1139-1398-01	WASHER	£5.21	Add to
067	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
068	1139-1748-01	AXLE SHAFT LH [L=349mm]	£59.19	Add to
069	1139-1749-01	AXLE SHAFT RH [L=488mm]	£72.26	Add to
070	1139-1078-01	THRUST WASHER	£10.36	Add to
071	1139-1163-01	RING	£1.79	Add to
072	1139-1080-01	SEAL 19328	£11.32	Add to
073	1139-1164-01	BUSH	£3.15	Add to
074	1139-1414-01	BUSH (19.05)	£4.35	Add to
075	1139-1260-01	BRAKE SHOE	£2.18	Add to
076	1139-1261-01	BRAKE ARM	£10.03	Add to
077	1139-1320-01	BRAKE SHAFT	£47.74	Add to
078	1139-1411-01	RETURN SPRING	£9.22	Add to
079	1139-1264-01	BRAKE ACTUATOR	£5.60	Add to
080	1139-1282-01	PIN	£5.03	Add to
081	1139-1114-01	O RING	£4.80	Add to
083	1139-1248-01	SPLINE COLLAR	£3.96	Add to
084	1134-5821-01	BELT PULLEY	£31.89	Add to
085	1134-4190-01	FAN	£22.35	Add to
086	1139-1266-01	LOCK WASHER	£1.79	Add to
087	1139-1149-01	CIRCLIP	£1.58	Add to
089	1139-1166-01	PIN	£4.94	Add to
092	1139-2744-01	SEAL KIT	£282.41	Add to
093	1139-1510-01	CAP KIT	£7.10	Add to
094	1139-1488-01	FILTER	£40.78	Add to
095	1139-1279-01	PIN	£1.58	Add to
096	1139-1495-01	PIN	£1.38	Add to
097	1139-1492-01	CHARGE SPRING	£4.52	Add to
099	1139-1443-01	SEALANT (TUBE)	£38.16	Add to
100	1139-1608-01	CHARGE PUMP KIT	£53.06	Add to
105	1139-0239-01	O RING	£2.32	Add to
108	1139-1460-01	PIPING	£45.28	Add to
200	1139-2746-01	SEAL KIT	£400.96	Add to
201	1139-2747-01	REPAIR KIT	£1,390.88	Add to
