TRANSMISSION -KXH7ND

Parts list

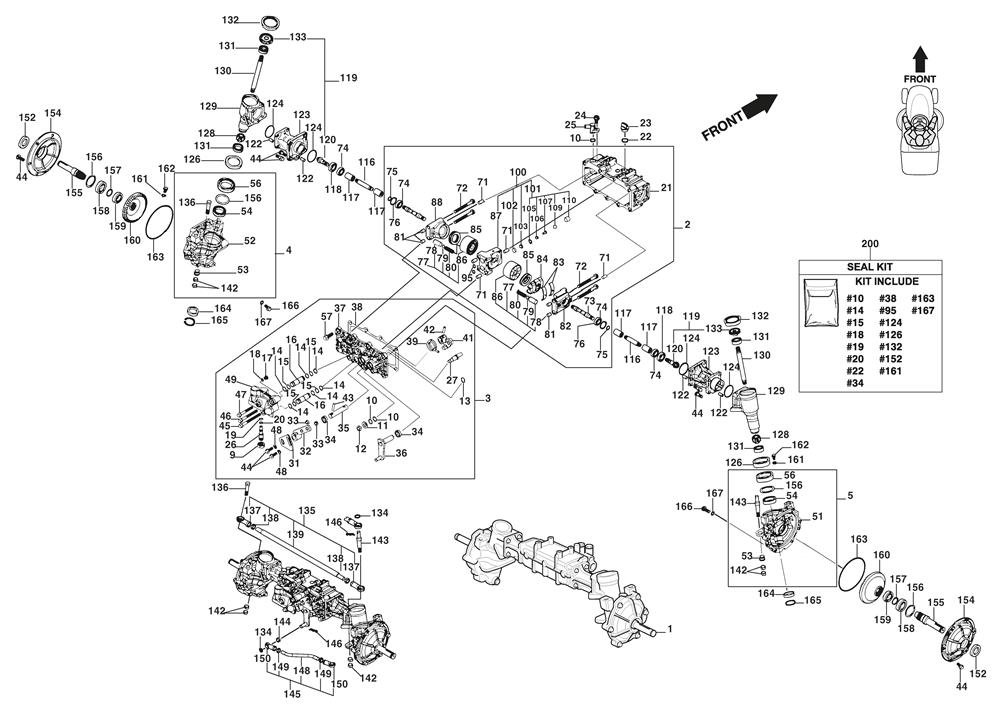

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118400974/0	HYDRO TRANSAXLE KXH7N	£2,310.04	Add to
003	1139-2700-01	MOTOR COVER COMPLETE	£2,288.69	Add to
004	1139-2731-01	FRONT GEAR BOX LEFT COMPLETE	£1,198.76	Add to
005	1139-2732-01	FRONT GEAR BOX RIGHT COMPLETE	£1,245.86	Add to
010	1139-1115-01	O RING	£1.79	Add to
011	1139-1102-01	WASHER	£5.75	Add to
012	1139-1127-01	NUT	£3.40	Add to
015	1139-2679-01	BACK-UP RING	£26.63	Add to
016	1139-2706-01	JOINT PIPE	£48.29	Add to
018	1139-2683-01	PACKING P8.0	£6.13	Add to
020	1139-2688-01	BACKUP RING T2P 9	£10.61	Add to
021	1139-2721-01	FRONT AXLE CASE	£956.57	Add to
022	1139-1116-01	O RING	£2.87	Add to
025	1139-2680-01	ELBOW	£16.55	Add to
026	1139-2736-01	BYPASS PIN	£75.20	Add to
027	1139-2710-01	FULCRUM	£63.11	Add to
031	1139-2705-01	ADJUST PLATE	£38.87	Add to
032	1139-2709-01	CONTROL LEVER	£104.81	Add to
033	1139-1589-01	NUT 8	£2.47	Add to
035	1139-2704-01	CONTROL SHAFT	£114.24	Add to
036	1139-2708-01	CAM LEVER	£142.48	Add to
037	1139-2701-01	MOTOR COVER	£539.44	Add to
038	1139-2702-01	GASKET COVER	£34.85	Add to
039	1139-2707-01	RETURN SPRING	£30.80	Add to
041	1139-2703-01	CONTROL ARM	£110.20	Add to
049	1139-2735-01	CONNECTING BLOCK BPS	£485.62	Add to
054	1139-2724-01	BEARING 6906 C3	£75.20	Add to
056	1139-2725-01	BEARING 6908 C3	£96.73	Add to
073	1139-2741-01	MOTOR SHAFT 7CC	£112.88	Add to
074	1139-2711-01	BEARING 6001 C3	£23.14	Add to
082	1139-2738-01	SWASH SUPPORT RIGHT	£149.21	Add to
084	1139-1475-01	SWASH PLATE	£20.04	Add to
085	1139-1501-01	BEARING	£40.64	Add to
088	1139-2737-01	SWASH SUPPORT LEFT	£155.94	Add to
100	1139-2742-01	CENTER CASE (7CC) COMPLETE	£700.90	Add to
101	1139-2739-01	CHECK VALVE COMPLETE	£55.28	Add to
102	1139-2740-01	COLLAR	£11.96	Add to
103	1139-2678-01	SCREEN	£32.15	Add to
116	1139-2713-01	JOINT SHAFT N	£98.08	Add to
117	1139-2712-01	SPLINE COLLAR B	£69.82	Add to
118	1139-2714-01	BEARING 6002 C3	£24.22	Add to
119	1139-2733-01	BEVEL GEAR SET	£297.23	Add to
123	1139-2718-01	AXLE FLANGE	£310.69	Add to
126	1139-2690-01	SEAL TC466411	£29.46	Add to
128	1139-2716-01	FINAL PINION GEAR (9T)	£182.86	Add to
129	1139-2722-01	FRONT GEAR CASE	£909.47	Add to
130	1139-2715-01	SHAFT FRONT 2ND	£90.00	Add to
131	1139-2717-01	BEARING 6003 C3	£25.56	Add to
132	1139-2723-01	SEAL CAP 56	£26.36	Add to
135	1139-2697-01	TIE ROD COMPLETE N	£431.78	Add to
136	1139-2698-01	TIE ROD PIN LEFT	£118.26	Add to
143	1139-2699-01	TIE ROD PIN RIGHT	£169.39	Add to
144	1139-2719-01	BUSHING 10	£6.42	Add to
145	1139-2720-01	STEERING ROD COMPLETE N	£256.86	Add to
152	1139-2689-01	SEAL TC254707	£26.63	Add to
154	1139-2728-01	FRONT BEARING COVER	£377.96	Add to
155	1139-2726-01	FRONT AXLE SHAFT	£357.78	Add to
158	1139-2730-01	BEARING 6005 C3	£36.19	Add to
159	1139-2729-01	BEARING 6004 C3	£30.80	Add to
160	1139-2727-01	FINAL GEAR (51T)	£324.14	Add to
164	1139-2681-01	COLLAR 30 38 4	£13.58	Add to
167	1139-1103-01	SEAL WASHER	£6.31	Add to
200	1139-2734-01	SEAL KIT (KXH7ND)	£322.70	Add to
