ENGINE - B&S

Parts list

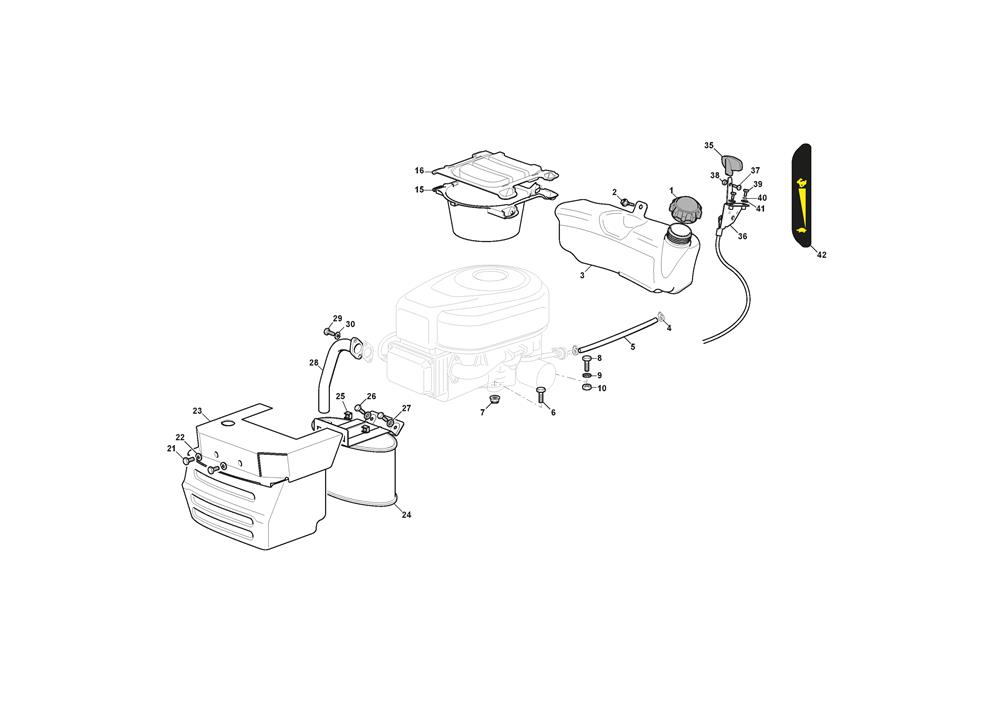

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
002125943010/0FLANGED SCREW£2.06 Add to
003325735126/1FUEL TANK [6 LT]£47.97 Add to
004118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
005325869057/0FUEL TUBE L=1000£20.72 Add to
006112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
007112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
008112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
009112540260/0INNER TOOTHED WASHER M8£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
015325108044/1LONG AIR CONVEYOR£11.46 Add to
016325263318/0AIR INTAKE GRILL [BLACK]£13.23 Add to
021112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
022112540260/0INNER TOOTHED WASHER M8£2.06 Add to
023382598047/2MUFFLER GUARD B&S 13,5 HP SD CTF£53.29 Add to
024182750010/0MUFFLER£117.75 Add to
025112360425/0SQUARE NUT M8£2.18 Add to
026112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
027112540260/0INNER TOOTHED WASHER M8£2.06 Add to
028118738206/0EXHAUST PIPE£83.40 Add to
029112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
030112540260/0INNER TOOTHED WASHER M8£2.06 Add to
035325394531/0THROTTLE CONTROL KNOB£1.91 Add to
036182000216/0THROTTLE CABLE£20.58 Add to
037112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
038112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
039112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
039112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
040112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
041112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
042114363697/0THROTTLE DECAL£2.06 Add to
