BODY

Parts list

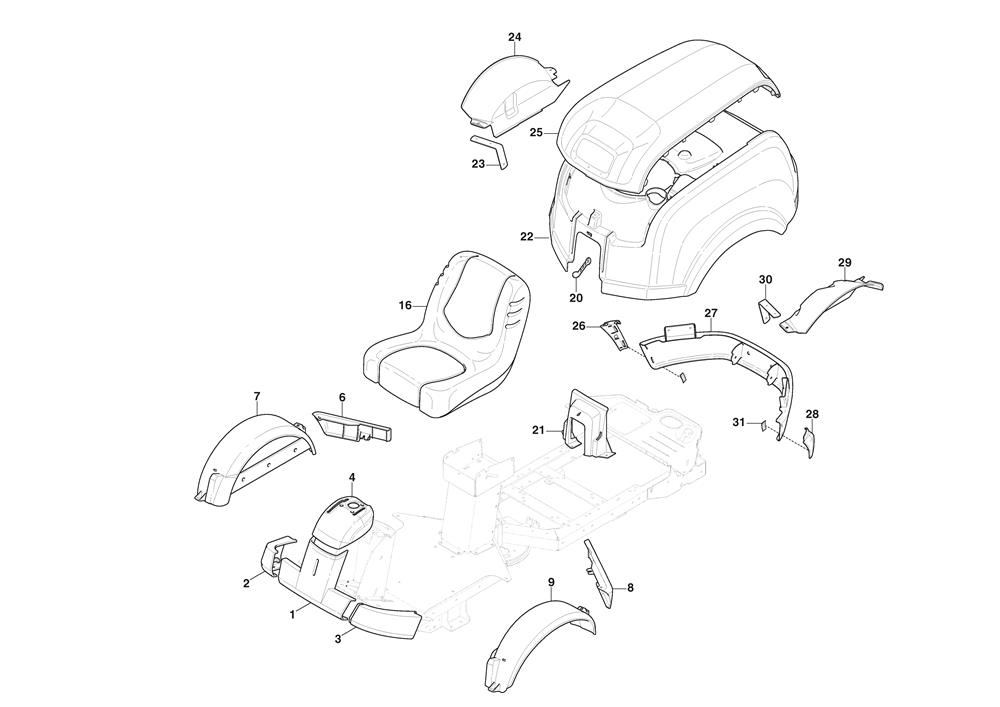

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337110389/0UPPER FRONTAL COVER [GREEN]£44.04 Add to
002337502508/0RIGHT FRONT BUMPER [GREY]£50.94 Add to
003337502509/0LEFT FRONT BUMPER [GREY]£53.42 Add to
004337110388/0UPPER FRONT COVER [GREEN]£62.39 Add to
006337110331/0LEFT MOULDING [GREY]£57.15 Add to
007337491254/0RIGHT MUDGUARD [GREY]£114.74 Add to
008337110332/0RIGHT MOULDING [GREY]£54.79 Add to
009337491255/0LEFT MUDGUARD [GREY]£114.74 Add to
0161134-5534-01SEAT£449.97 Add to
0201134-9028-01RUBBER STRAP (3 PCS)£26.46 Add to
0211134-6241-01HOOD SUPPORT£42.53 Add to
022337076808/0ENGINE HOOD [GREEN]£281.20 Add to
0231134-4012-03RIGHT BRACKET£18.82 Add to
024337491256/0INNR MUDGUARD R/H (PARK)£102.93 Add to
025337110334/0TOP ENGINE COVER [GREY]£77.95 Add to
026337110335/0RIGHT BUMPER END£14.32 Add to
027387457003/0REAR BUMPER£231.93 Add to
028337110336/0LEFT BUMPER END£15.00 Add to
029337491257/0INNER MUDGUARD L/H (PARK)£102.93 Add to
0301134-4012-04LEFT BRACKET£18.82 Add to
0311134-6310-01CLIP£2.32 Add to
