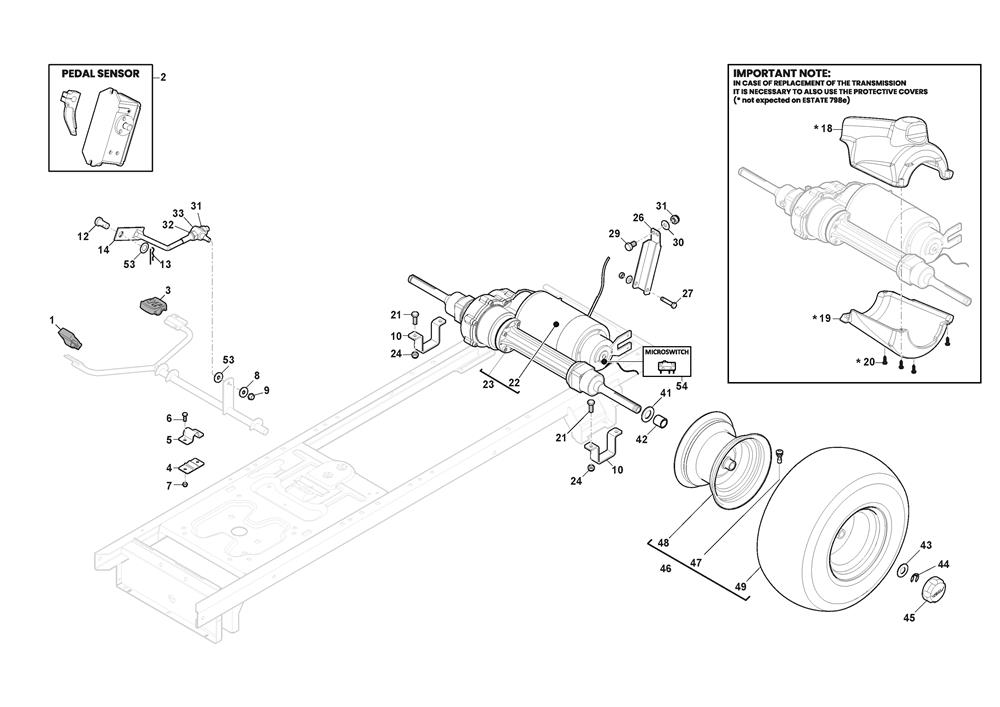

ELECTRICAL TRANSMISSION

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
002118361037/1PEDAL SENSOR£110.00 Add to
003325110331/0REVERSE GEAR PEDAL [BLACK]£7.36 Add to
004325785350/0AXLE FEED PEDA SUPPORT SD98 HYDRO£2.06 Add to
005325547231/1LIFTING DECK AXLE PLATE£4.78 Add to
006112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010382785311/0SUPPORT BRACKET£10.89 Add to
012125510022/1PIN£3.40 Add to
013124487997/0SPRING CLIP D=1.8£2.06 Add to
014382000717/0FORWARD CONTROL ROD (BLACK)£21.65 Add to
018325600158/0LINIX UPPER PROTECTION COVER MP/SD BAT£5.50 Add to
019325600159/0LINIX LOWER PROTECTION COVER MP/SD BAT£4.40 Add to
020112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
021112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
022118870397/0MOTOR ASSY (TRANSAXLE MP/SD EL)£460.30 Add to
023118400899/1LINIX ELECTRIC TRANSAXLE MP/SD EL£1,124.80 Add to
024112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
026325785349/1TRANSAXLE SUPPORT£13.08 Add to
027112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
029112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
030112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
031112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
032112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
033125510054/1PIN£3.69 Add to
041125670005/2SPINDLE WASHER£3.89 Add to
042125160058/1SPACER£4.52 Add to
043125670005/2SPINDLE WASHER£3.89 Add to
044112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
045322110233/0HUB CAP [BLACK]£2.06 Add to
046382680094/0WHEEL ASSEMBLY 18" [WANDA] P512 BLK£180.76 Add to
046382680104/0WHEEL ASSEMBLY 18" [WANDA] P512 DG£167.64 Add to
047125950000/0PNEUMATIC VALVE£5.73 Add to
048182001509/1REAR WHEEL RIM 7.5" X 8" DARK GREY£83.78 Add to
053325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
054118870327/0MICROSWITCH£38.38 Add to
