SEAT AND STREERING WHEEL

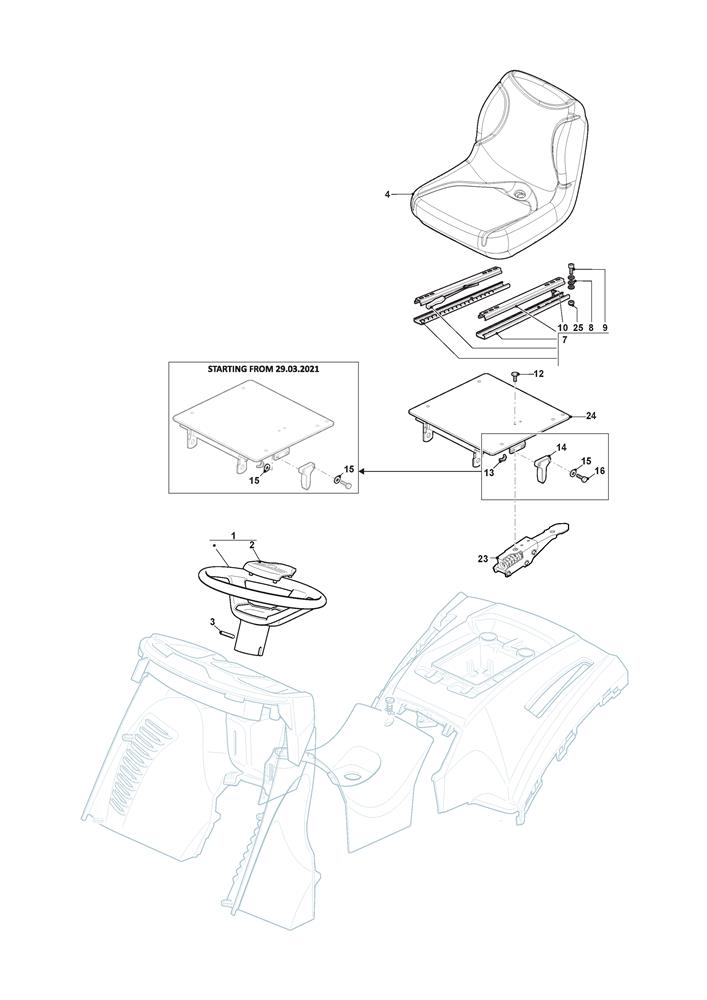

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125961217/1	STEERING WHEEL [BLACK]	£93.73	Add to
002	325580505/0	CENTRAL STEERING WHEEL CAP	£7.92	Add to
003	112620250/0	PIN 6 x 24	£2.06	Add to
004	125722482/0	MOUNTFIELD CZ SEAT TC/HE	£340.96	Add to
007	382180115/0	HE SEAT GUIDE KIT ASSY	£74.62	Add to
008	112540060/0	SERRATED LOCK WASHER M8	£2.06	Add to
009	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
010	112760605/0	SCREW TBEI M8 X 20MM	£2.53	Add to
011	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
012	112788910/0	HEX-HEAD SCREW M5 x 16	£2.06	Add to
013	112372550/0	NUT WITH WING M5	£2.06	Add to
014	325060049/0	SEAT SWITCH CAM	£2.74	Add to
015	112521320/0	WASHER M5 5.3 x 10 x 1	£2.06	Add to
015	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
016	112789100/0	HEX-HEAD SCREW M5 x 30	£2.06	Add to
023	382318316/1	OPC SPRING LEVER ASSEMBLY	£42.53	Add to
024	382735809/1	FIXED SEAT SUPPORT	£143.37	Add to
025	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
