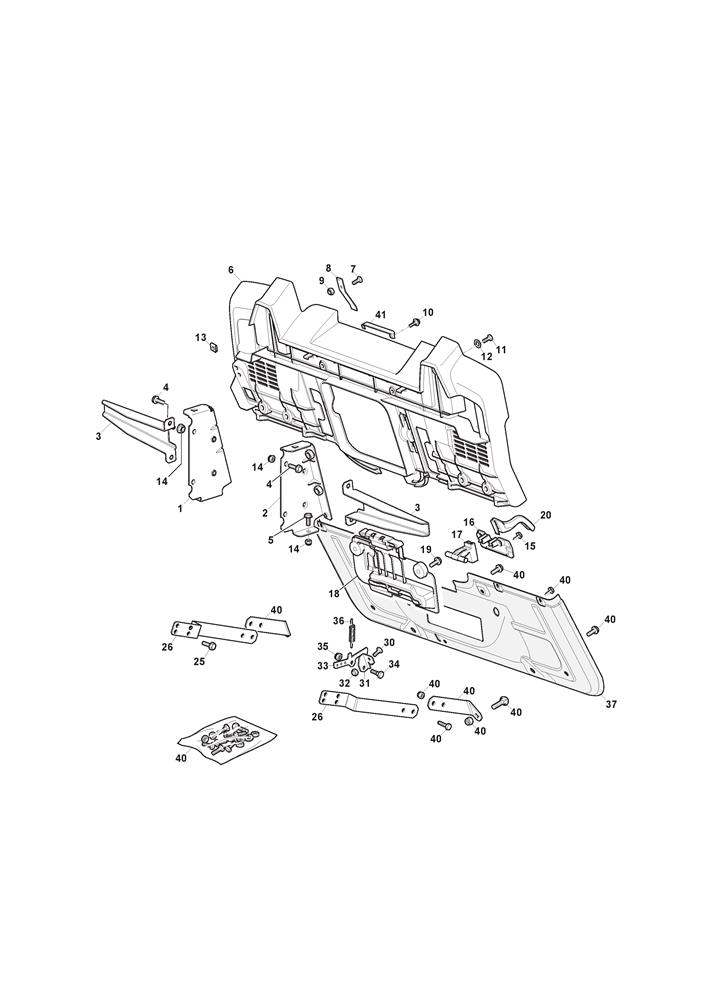

FRAME - REAR PLATE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325774501/0RIGHT CLAMP BRACKET£13.91 Add to
002325774507/0LEFT CLAMP BRACKET£13.91 Add to
002325774507/1LEFT CLAMP BRACKET£14.20 Add to
003325650163/0SUPPORT BRACKET£11.46 Add to
004125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
005125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
006325547299/2UPPER REAR PLATE (BLACK)£44.04 Add to
007112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
008127430600/0MICRO LIFT SEAT SPRING£2.74 Add to
009112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
010125943010/0FLANGED SCREW£2.06 Add to
011112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
012112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
013112437503/0LOCK PLATE£2.06 Add to
014112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
015112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
016325109522/0MICRO LEVER COVER£2.87 Add to
017325318276/0FULCRUM LEVER£3.83 Add to
018325785428/0MICRO SWITCH SUPPORT PLATE£10.09 Add to
019125943010/0FLANGED SCREW£2.06 Add to
020325318277/0MICRO SWITCH LEVER£2.06 Add to
025112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
026325774521/0CLAMP BRACKET£9.23 Add to
030112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
031325755061/0SUPPORT BRACKET£2.86 Add to
032112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
033325774533/0LOWER HOOKING CLAMP£5.05 Add to
034125510080/2CLAMP PIN£1.79 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036125430282/1HOOKING SPRING£1.91 Add to
037382547071/1LOWER REAR PLATE£105.95 Add to
040382180146/0FIX GRASSCATCHER ENDOW. ASSY MP£34.35 Add to
041325600107/0BAG SWITCH PROTECTION£5.32 Add to
