GRASSCATCHER

Parts list

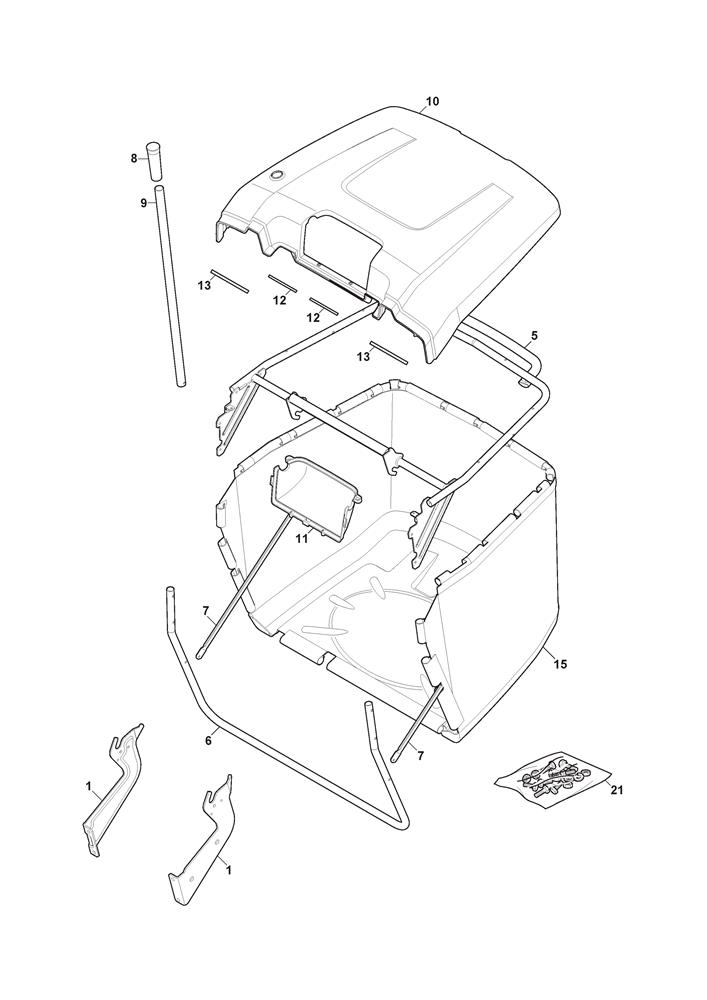

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382785289/1GRASSCATCHER SUPPORT BRACKETS£81.54 Add to
005382800139/1UPPER GRASSCATCHER FRAME MP84C HE£116.81 Add to
005382800139/2UPPER GRASSCATCHER FRAME£116.81 Add to
006382800141/0LOWER GRASSCATCHER FRAME£37.87 Add to
007325650149/0REINFORCEMENT ROD£8.37 Add to
008125394508/0KNOB£4.52 Add to
009325869087/1TIPPING LEVER£24.95 Add to
010325110447/1GRASSCATCHER COVER [GREEN]£130.00 Add to
010325110447/2GRASSCATCHER COVER [GREEN]£130.00 Add to
011325207195/1HANDLE HOLE COVER (BLACK)£11.78 Add to
012125270802/0R/H REAR PLATE STRIP£4.52 Add to
013125270803/0L/H REAR PLATE STRIP£4.52 Add to
015182105947/0GRASSCATCHER BAG 84cm [HE]£163.80 Add to
021382180123/0GRASSCATCHER ASSEMBLY KIT MP84 HE£18.74 Add to
