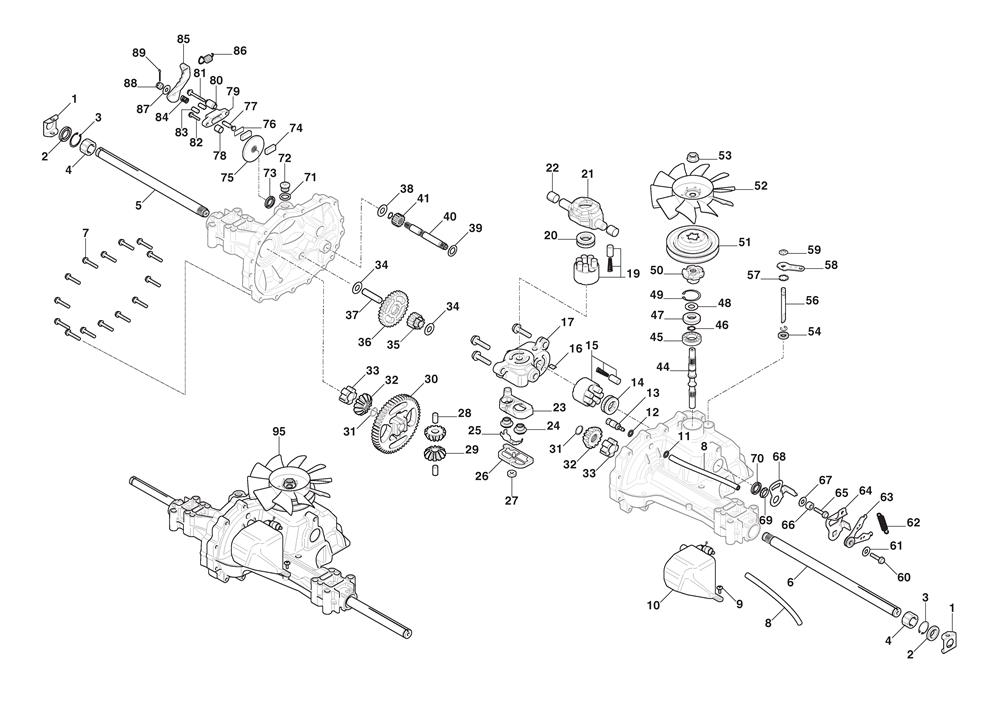

TRANSMISSION UNIT ,LXHT20

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118870341/0CHECK PLATE,COUNTERSHAFT OIL SEAL£8.00 Add to
002118870376/0OIL SEAL£4.00 Add to
003112610095/0CIRCLIP D=28£2.06 Add to
004118870381/0COLLAR 19×28.5×16£5.00 Add to
005118870355/0SEMI-SHAFT£55.00 Add to
006118870356/0SEMI-SHAFT£52.00 Add to
007112674550/0SCREW TE M6 x 30£2.06 Add to
008118870380/0TUBE,BREATHER ?4×?7×142£5.50 Add to
009112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
010118870335/0EXPANSION TANK ASSY.£23.00 Add to
011118870389/0RING,SEAL£4.50 Add to
012118870415/0CONNECTING JOINT BOLT£3.00 Add to
013118870332/0BOLT,CONNECTING JOINT£9.00 Add to
014118870375/0BEARING£25.00 Add to
015118870365/1HYDRAULIC CYLINDER 61 × 35£115.00 Add to
016118870340/0PUSH ROD£4.00 Add to
017118870331/1VALVE SEAT COMPONENT£120.00 Add to
019118870364/1HYDRAULIC CYLINDER 56.5 X 30£115.00 Add to
020118870374/0BEARING£30.00 Add to
021118870338/0SWASH PLATE£85.02 Add to
022118870383/0COLLAR 19×21×20£4.80 Add to
028118870350/0SHAFT OF DRIVING BEVEL GEAR£3.70 Add to
029118870345/0BEVEL GEAR,DRIVING Z=12_M=4.15£6.25 Add to
030118870357/0DIFFERENTIAL GEAR Z=53_M=2.54£34.00 Add to
031118870354/0LOCKED SPACER,DIFFERENTIAL MECHANISM£4.70 Add to
032118870346/0BEVEL GEAR,DRIVEN Z=12 M=4.15£6.25 Add to
033118870382/0COLLAR 19×36×15.8£4.30 Add to
034118870412/0CHECK RING,SHOULDER D=15 D=25 T=1£3.20 Add to
035118870347/0DRIVING GEAR,DUPLEX GEAR Z=11_M=2.54£6.74 Add to
036118870348/0DRIVEN GEAR,DUPLEX GEAR Z=48_M=1.75£11.26 Add to
037118870344/0SHAFT,DUPLEX GEAR£3.57 Add to
038118870370/0CHECK RING,SHOULDER 13×28×1£3.03 Add to
039118870369/0CHECK RING,SHOULDER D=15 D=25 T=1£3.03 Add to
040118870342/0OUTPUT SHAFT£50.00 Add to
041118870343/0GEAR,OUTPUT SHAFT Z=13_M=1.75£5.80 Add to
042112610800/0CIRCLIP D=35£2.06 Add to
044118870358/0PRIMARY INPUT SHAFT 140,3£46.10 Add to
045118805721/0BEARING 6202£9.74 Add to
046112609200/0CIRCLIP D=15£2.06 Add to
047118870377/0OIL SEAL£3.67 Add to
048118870371/0CHECK RING,SHOULDER 25×35×2£3.03 Add to
049112610800/0CIRCLIP D=35£2.06 Add to
050118870351/0OUTPUT FLANGE PLATE£6.46 Add to
051118870349/0DRIVING WHEEL BELT£27.19 Add to
052118870333/0HYDRO FAN£17.61 Add to
054118870379/0OIL SEAL£3.55 Add to
056118870352/0BYPASS ROD£6.08 Add to
057112000955/0CIRCLIP D=8£1.79 Add to
058118870353/0BYPASS ARM£6.20 Add to
059118870368/0WASHER,LOCK£3.03 Add to
0609959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
061118804818/0WASHER 8 x 26 x 1.5£2.06 Add to
062118870390/0SPRING,DRAG£5.42 Add to
064118870339/0CONTROL ARM£15.01 Add to
065112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
066118870386/0COLLAR 8×15.5×10£4.30 Add to
068118870337/0LIMITING PLATE OF ADJUSTMENT£12.48 Add to
069118870385/0COLLAR 19×25×5£4.30 Add to
070118870376/0OIL SEAL£4.00 Add to
071112520033/0WASHER 14X20X1,5 DIN 988£2.06 Add to
072118870330/0SEALING BOLT£4.94 Add to
073118870378/0OIL SEAL£3.55 Add to
074118870360/0PAD,BRAKE ASSY. 28.5×12.6×7£10.93 Add to
075118870362/0BRAKE DISC 66.5×10.3£7.87 Add to
076118870363/0WASHER OF BRAKE DRUM 28.5×12.6×1£3.79 Add to
078118870387/0COLLAR 6.5×14.3×22£4.69 Add to
079118870359/0BODY SET,BRAKE ASSY. 79.5×20.5×45£15.64 Add to
0819997-0650-12SCREW M6S M6 x 50£2.47 Add to
083118870373/0PIN,CLEVIS ?8×18.7£3.67 Add to
084118870392/0SPRING,COMPRESSION£3.87 Add to
085118870361/0ARM,BRAKE 82.2×91.5×66£14.11 Add to
086118870391/0SPRING,DRAG£4.26 Add to
087122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
088118870366/0NUT,HEXAGON SLOTTED£3.30 Add to
095118400921/0HYDRO TRANSAXLE T2-ADBF-2X3C-1RX1£913.36 Add to
