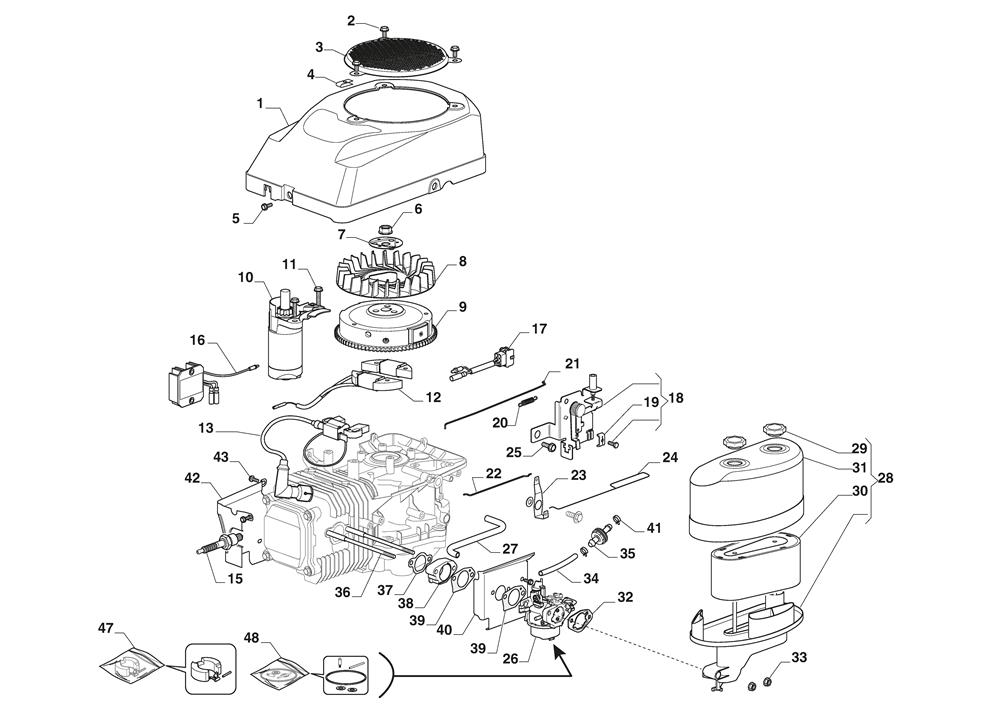

ENGINE - CARBURETTOR , AIR CLEANER ASSY

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551261/0FAN COVER£67.05 Add to
002112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
003118550203/0FAN COVER INSERT£45.26 Add to
004118551280/0PLATE£2.06 Add to
005118552509/0HEXAGONAL BOLT£1.29 Add to
006118550237/0NUT£3.69 Add to
007118550236/0STARTER CUP£6.69 Add to
008118550235/1FLYWHEEL FAN£26.18 Add to
009118550234/2FLYWHEEL£231.93 Add to
010118552635/0STARTER MOTOR (LATEST VERSION)£163.80 Add to
011112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
012118551441/0CHARGE COIL ASSEMBLY (LATEST VERSION)£58.87 Add to
013118551438/0IGNITION COIL (LATEST VERSION)£45.26 Add to
0159400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
016118551428/1RECTIFIER (LATEST VERSION)£58.87 Add to
017118551439/0OUTPUT WIRE-RECTIFIER (LATEST VERSION)£13.23 Add to
018118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
019118550212/0Casing Clamp (OBSOLETE)N/A
020118550213/0SPRING£2.47 Add to
021118551219/0GOVERNOR ROD£5.73 Add to
022118551218/0CHOKE ROD£5.19 Add to
023118551267/0CHOKE LEVER£6.47 Add to
024118551221/0THROTTLE ROD£3.41 Add to
025118551277/0SCREW M6 X 14 (OBSOLETE)N/A
026118552604/0CARBURETTOR£82.00 Add to
027118550225/1BREATHER FUEL PIPE£9.28 Add to
028118550199/0AIR FILTER£25.44 Add to
029118551407/0AIR FILTER KNOB£2.06 Add to
030118550199/0AIR FILTER£25.44 Add to
031118550200/0AIR FILTER COVER£17.04 Add to
032118550762/0CARBURETTOR GASKET£6.88 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
034118550432/0FUEL PIPE£3.15 Add to
035118550427/0FUEL FILTER£5.87 Add to
036118551279/0STUD BOLT£3.55 Add to
037118551263/0INTAKE MANIFOLD GASKET£2.18 Add to
038118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
039118551262/0CARBURETTOR GASKET£2.18 Add to
040118551259/0GUARD£17.72 Add to
041118552508/0PIPE CLIP£1.88 Add to
042118551260/0GUARD£15.39 Add to
043118552646/0BOLT£3.61 Add to
047118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
048118550442/0CARBURETTOR GASKET SET£15.36 Add to
