BODYWORK

Parts list

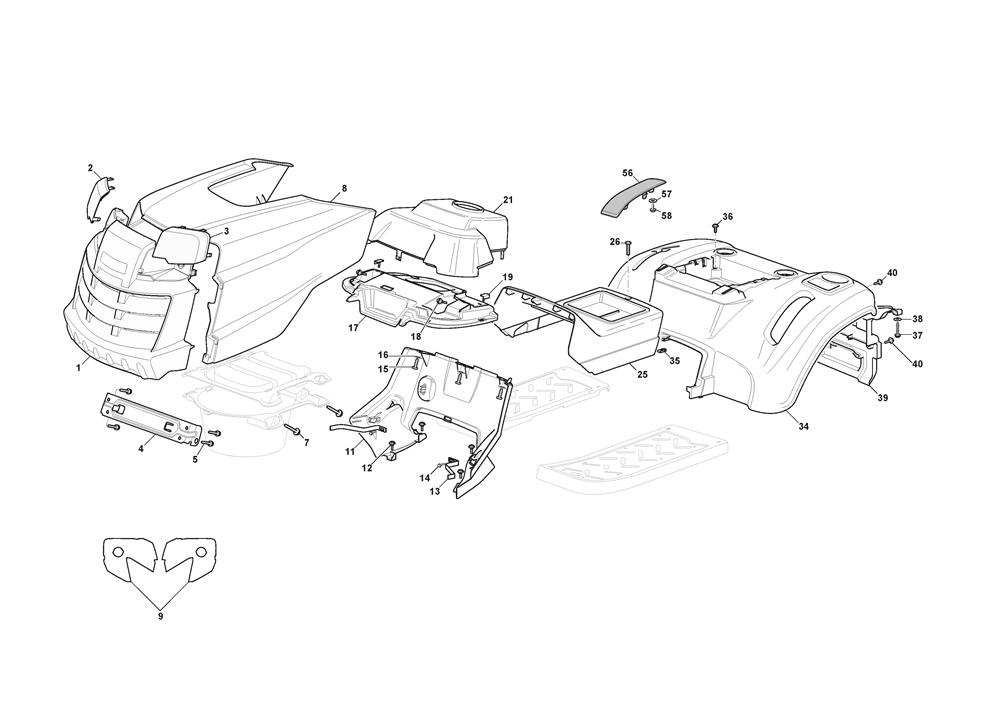

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076922/0FRONT HOOD [BLACK]£66.92 Add to
002325410903/0RIGHT HEADLIGHT LENS£8.73 Add to
003325410904/0LEFT HEADLIGHT LENS£8.73 Add to
004325785365/0HOOD SUPPORT£11.43 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
008325076939/0ENGINE HOOD [GREEN]£137.42 Add to
009114365477/1HEADLIGHT DECAL£5.87 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120259/2DASHBOARD [BLACK]£35.71 Add to
018125943010/0FLANGED SCREW£2.06 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
021325120203/1DASHBOARD COVER [BLACK]£17.20 Add to
025325110541/0CENTRAL COVER (GREY)£40.81 Add to
026125943010/0FLANGED SCREW£2.06 Add to
034325110445/0WHEELS COVER [GREEN]£143.37 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
036125943010/0FLANGED SCREW£2.06 Add to
037112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
038112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
039325547208/3REAR PLATE [BLACK]£20.62 Add to
040125943010/0FLANGED SCREW£2.06 Add to
056325207190/2GEAR LEVER GUIDE COVER SD [BLACK]£5.84 Add to
057112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
058112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
