BRAKE AND GEARBOX CONTROLS

Parts list

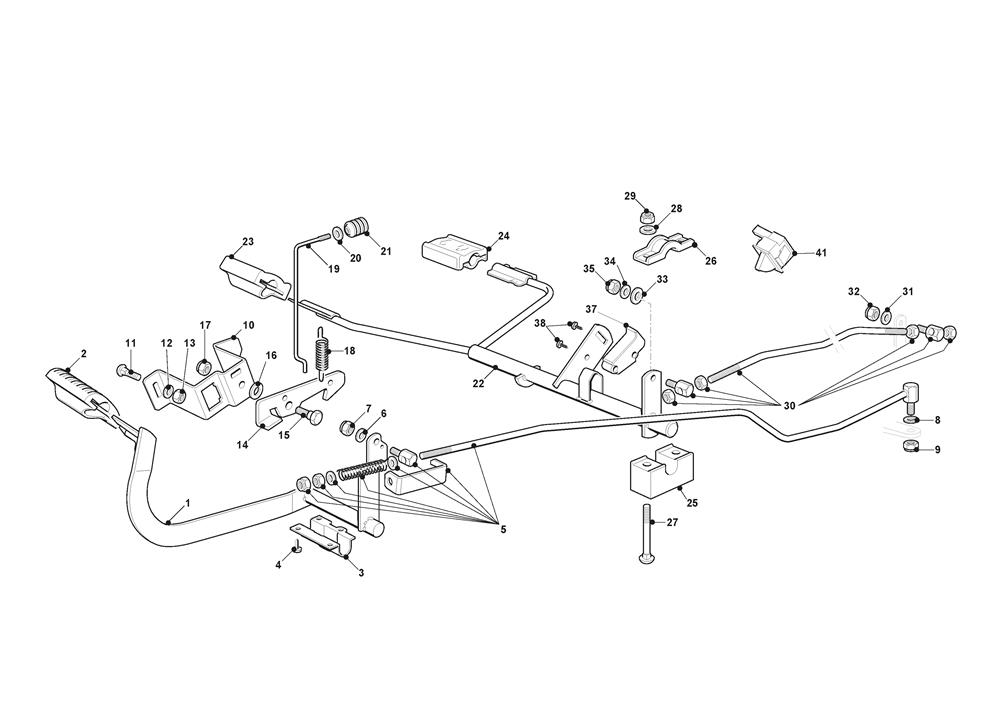

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500011/2BRAKE PEDAL£70.68 Add to
002325110416/0PEDAL COVER [BLACK]£9.41 Add to
003325547081/2BRACKET£5.46 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005382000582/0BRAKE DRIVE ROD£43.89 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
009112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
010325785143/1SUPPORT BRACKET£4.91 Add to
011112815210/0SCREW M6 x 20£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014325253001/0HOOK£4.52 Add to
015122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
016325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
017112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
018125430213/0SPRING£2.06 Add to
019125033034/0PARKING BRAKE ROD£5.60 Add to
021112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
022382000393/0FEED/REVERSE GEAR PEDAL£60.13 Add to
023325110417/0FRONT PEDAL COVER [BLACK]£9.41 Add to
024325110418/0REAR PEDAL COVER [BLACK]£9.41 Add to
025325785185/0AXLE SUPPORT BLOCK£4.10 Add to
026327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
027112815245/0SCREW M6 x 45£2.06 Add to
028112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
029112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
030382000579/0FEED CONTROL ROD£34.35 Add to
031112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
034112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
037325060058/0REVERSE SWITCH CAM£32.48 Add to
038112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
041119410623/0MICRO SWITCH N.C.£7.92 Add to
