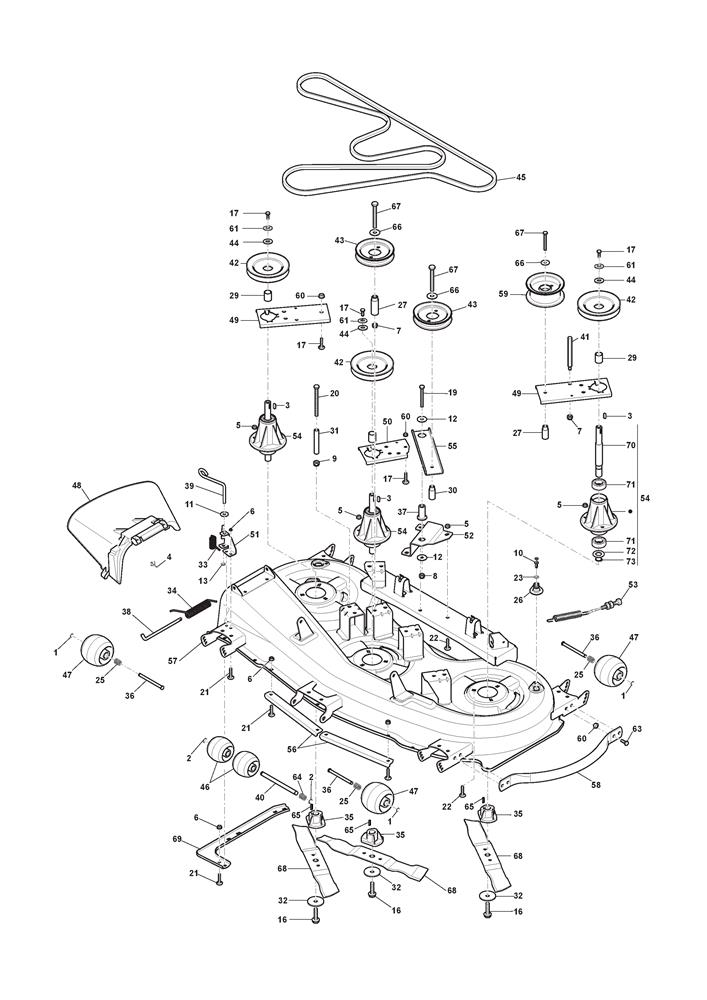

CUTTING PLATE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112000930/0CIRCLIP D=6£0.79 Add to
002112000956/0CIRCLIP D=9£1.79 Add to
003112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
004112141418/0SPLIT PIN 3 x 20£1.76 Add to
005112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008112155020/0SELF-BINDING NUT M10£2.06 Add to
009112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0121134-5406-01WASHER M10 10.5 x 35 x 5£4.23 Add to
013112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
016112735696/0HEX-HEAD SCREW 3/8" x 1"£2.59 Add to
017112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
0199997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
020112794980/0SCREW 10 x 100£2.06 Add to
021112815200/0SCREW TTDQ M6X16£2.06 Add to
0229959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
023119035000/0O RING 10.77 x 2.62£5.46 Add to
025122450115/0SPRING£2.06 Add to
026125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
027125160099/0PULLEY SPACER£8.87 Add to
029125160090/0PULLEY SPACER£10.02 Add to
030125160100/0PULLEY SPACER£8.87 Add to
031125160097/0SPACER£5.71 Add to
032125160503/0SPRING WASHER£4.10 Add to
033125430288/0SPRING£9.39 Add to
034125430289/0SPRING£13.00 Add to
035125463200/0BLADE BOSS£9.82 Add to
036125510121/1DECK FIXING PIN£9.54 Add to
037125510155/0FULCRUM PIN£8.14 Add to
038125510156/0FULCRUM PIN£11.59 Add to
039125510157/1FULCRUM PIN£9.68 Add to
040125510158/0FULCRUM PIN£12.37 Add to
041125510160/0DECK STOP PIN£9.54 Add to
042125601549/0BLADE SHAFT PULLEY£52.06 Add to
043382601521/0PULLEY D=107 H26£47.87 Add to
044125670007/0FIXING WASHER£2.06 Add to
045135062027/0DECK DRIVE BELT BRP 136 MTR118 SD£87.07 Add to
046182700003/0ANTI-SCALP WHEEL D=80mm£10.33 Add to
047182700004/0ANTI-SCALP WHEEL D=100mm£18.04 Add to
048325600129/0DEFLECTOR [BLACK]£32.99 Add to
049325650175/0SHAFT FLANGE PLATE£15.21 Add to
050325650177/0SHAFT FLANGE PLATE£12.61 Add to
051325774633/0FULCRUM CLAMP£17.18 Add to
052325785513/0PULLEY SUPPORT BRACKET£28.68 Add to
053382004627/0BLADE ENGAGE CABLE MTR SD£29.30 Add to
054382207213/0BLADE HOUSING ASSEMBLY£113.39 Add to
055382318299/0UPPER IDLER LEVER£42.53 Add to
056382526251/0GUIDE BRACKET£9.41 Add to
057382565089/0CUTTER DECK CASING MTR118 SD [BLACK]£653.67 Add to
058382869063/0SIDE REINFORCEMENT PLATE£35.71 Add to
059382601520/0PULLEY D=107 H45£41.97 Add to
060112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
061112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0639959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
064122430215/0SPRING£3.69 Add to
065112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
066112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
067112691900/0HEX-HEAD SCREW£1.91 Add to
068182004359/0LEFT WINGED BLADE 84cm£22.76 Add to
068182004361/0LEFT MULCHING BLADE 84cm£20.32 Add to
069382650053/0SIDE DECK REINFORCEMENT£38.44 Add to
070125020829/0BLADE SHAFT MTR118SD£42.05 Add to
072112609260/0CIRCLIP D=20£2.02 Add to
073325160501/1DUST COVER WASHER£2.06 Add to
