GUARDS AND CONVEYOR

Parts list

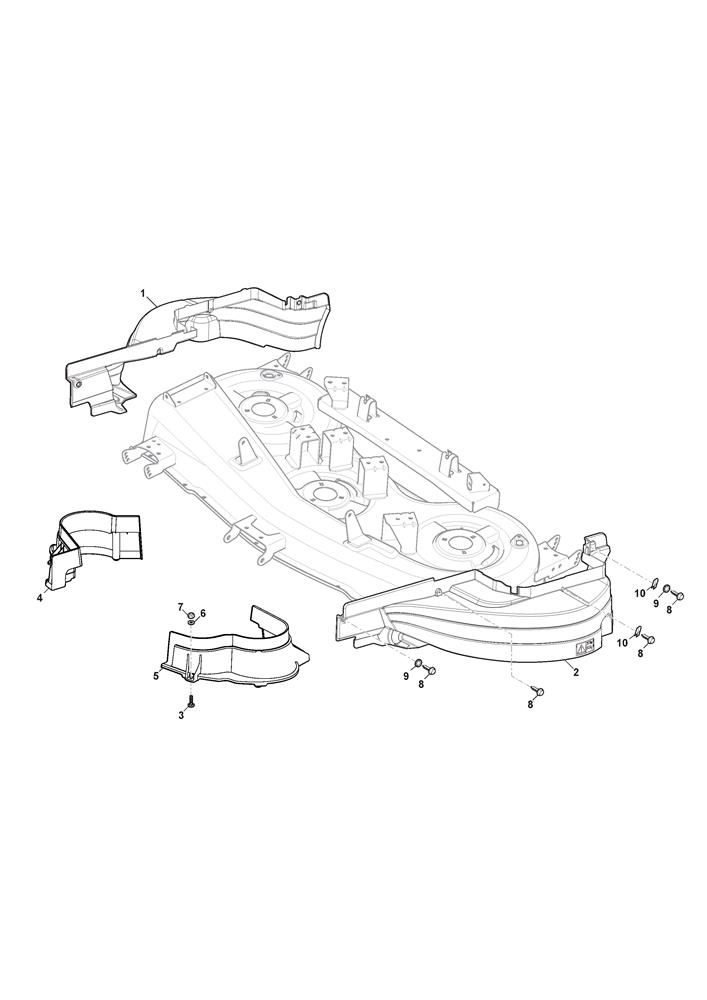

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060183/1R/H EXTERNAL BELT COVER FROM SN 436657£42.53 Add to
002325060184/1L/H EXTERNAL BELT COVER FROM SN 436657£42.53 Add to
003112815210/0SCREW M6 x 20£2.06 Add to
004325060181/1R/H INTERNAL BELT COVER£27.27 Add to
005325060182/1L/H INTERNAL BELT COVER FROM SN 431074£26.18 Add to
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
009112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0101134-4176-01CLIP£5.19 Add to
