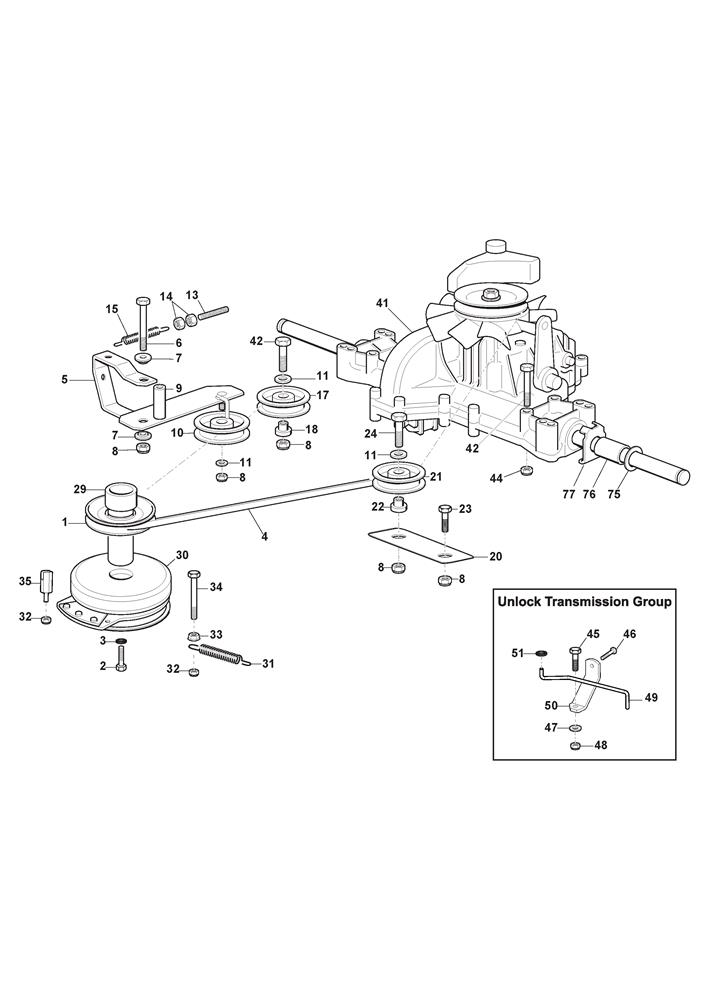

TUFF TORQ TRANSMISSION WITH ELECTROMAGNETIC CLUTCH

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182595501/0MOBILE BELT PULLEY£51.02 Add to
002125943013/0THREADED SCREW 7/16" x 4 1/2"£12.96 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
004135062020/1TRANSMISSION BELT 4L 980£46.61 Add to
005382318165/2LEVER£26.62 Add to
006112793905/0HEX-HEAD SCREW M8 x 70£2.32 Add to
007125038002/1BUSH£2.06 Add to
008112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
009125601554/0PULLEY£26.18 Add to
010125601554/0PULLEY£26.18 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
013125840010/1TIE ROD£2.32 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
015125430219/1SPRING£3.96 Add to
017325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
018125160056/0PULLEY SPACER£4.23 Add to
020325547448/0PULLEY SUPPORT PLATE£7.90 Add to
021382601522/0PULLEY [NTN]£24.95 Add to
022127160064/0TRACTION PULLEY SPACER NR66£5.46 Add to
023112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
024112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
029125160059/0PULLEY SPACER L=25.8£6.69 Add to
030118399069/1ELECTROMAGNETIC CLUTCH I-5217-63 (NO RETURNS ON TH£389.96 Add to
031127430592/0BLADE BRAKE SPRING NR 66£6.14 Add to
032112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
033112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
034112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
035125598055/0CLUTCH PIN EXTENSION£15.13 Add to
041118400950/1HYDRO TRANSAXLE K46F£1,424.29 Add to
042112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
044112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
045112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
046112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
047112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
048112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
049112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
050325785523/0TRANSMISSION REAR SUPPORT BRACKET£7.10 Add to
051112604896/0STARLOCK WASHER D=6£2.06 Add to
075112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
076125160023/0SPACER£7.34 Add to
077325670025/0SPACER WASHER TT£4.27 Add to
