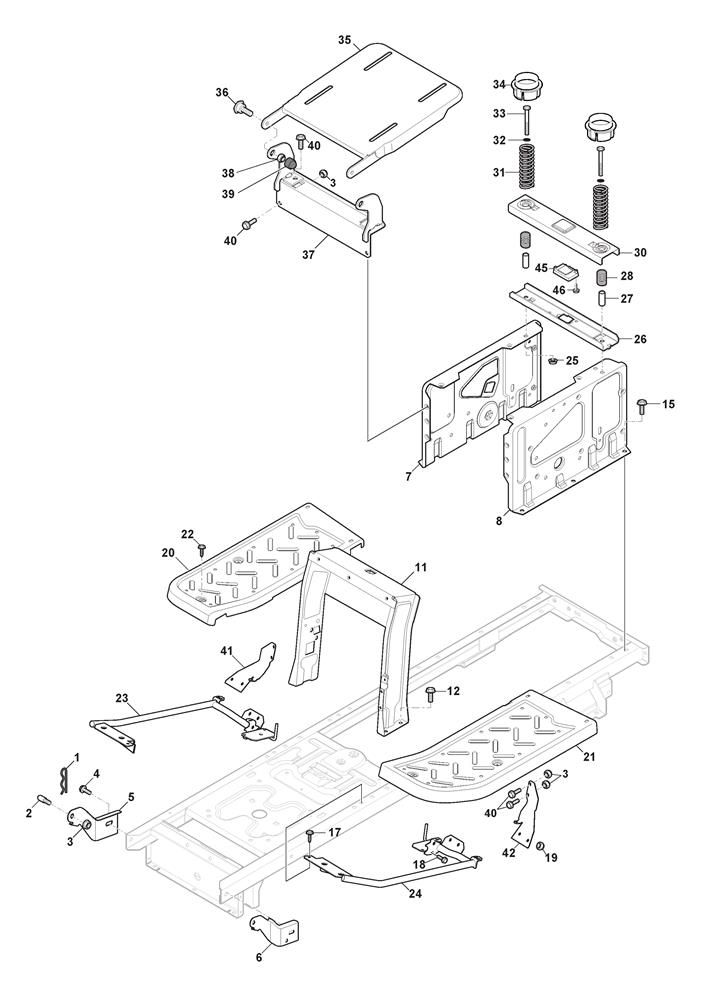

FRAME - FROM S/N 23DA3RON002449

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001124487998/0R CLIP D=2£2.06 Add to
002125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
003112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
004112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
005325547225/0RIGHT HOOD SUPPORT PLATE£6.63 Add to
006325547227/0LEFT HOOD SUPPORT PLATE£6.79 Add to
007325785331/2RIGHT SEAT SUPPORT£30.68 Add to
008325785333/2LEFT SEAT SUPPORT£33.48 Add to
011382785169/1STEERING COLUMN SUPPORT£56.10 Add to
012125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
015125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
017125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
018125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
019112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
020325500050/0RIGHT FOOTBOARD [PLASTIC]£24.00 Add to
020325500050/1RIGHT FOOTBOARD [PLASTIC]£24.00 Add to
021325500051/1LEFT FOOTBOARD [PLASTIC]£24.00 Add to
022112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
023382785223/1RIGHT FOOTBOARD SUPPORT [BLACK]£36.01 Add to
023382785223/2RIGHT FOOTBOARD SUPPORT [BLACK]N/A POA
024382785221/1LEFT FOOTBOARD SUPPORT [BLACK]£36.01 Add to
024382785221/2LEFT FOOTBOARD SUPPORT [BLACK]N/A POA
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026325820109/1SEAT SUPPORT£9.39 Add to
027125160048/0SPACER£2.32 Add to
028125430263/0SEAT SWITCH SPRING£1.79 Add to
030325820113/0SEAT SWITCH SUPPORT BAR£10.82 Add to
031125430264/1SPRING£10.61 Add to
032112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
033112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
034325600148/0PROTECTIVE CAP£2.67 Add to
035382547061/1SEAT PLATE ASSEMBLY£38.44 Add to
036122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
037382820151/3SEAT SUPPORT ASSEMBLY£22.21 Add to
038112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
039118203854/0NUT CAP M8 [BLACK]£2.06 Add to
040125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
041325650155/2RIGHT SUPPORT PLATE FROM S/N 20BA3RON006585£10.77 Add to
042325650157/2LEFT SUPPORT PLATE FROM S/N 20AA3RON007537£11.18 Add to
045325785379/1SEAT MICRO SUPPORT£2.06 Add to
046112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
