ENGINE , FUEL PUMP

Parts list

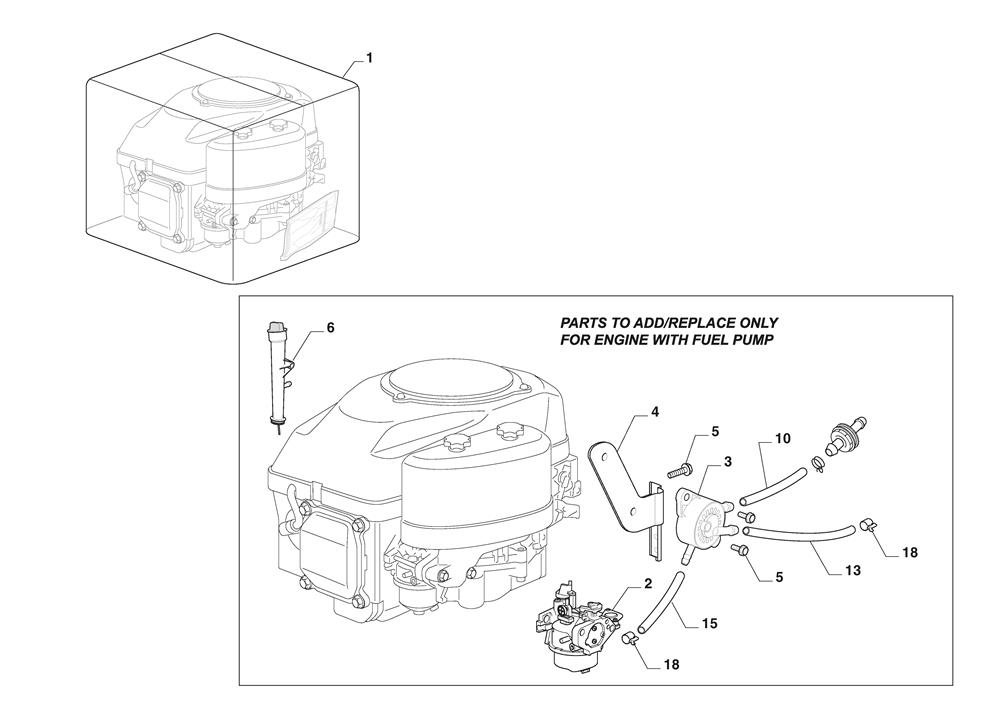

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550451/2ENGINE ASSEMBLY 432CC TRE0701£720.00 Add to
002118552605/0CARBURETTOR£82.00 Add to
003118551578/0FUEL PUMP£62.97 Add to
004118550348/1FUEL PUMP BRACKET£24.95 Add to
005112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
006118550444/1OIL DIPSTICK ASSEMBLY£24.95 Add to
010118552506/0FUEL PIPE£6.81 Add to
013118551371/0FUEL TUBE£2.50 Add to
015118552507/0FUEL PIPE£8.40 Add to
018118552508/0PIPE CLIP£1.88 Add to
2011111-9234-01SAE 30 4 STROKE OIL 0.6 Litre [16]£6.27 Add to
2011111-9237-0110W-30 4 STROKE OIL 0.6 Litre [16]£6.55 Add to
2021111-9235-01SAE 30 4 STROKE OIL 1 Litre [12]£8.73 Add to
2031111-9236-01SAE 30 4 STROKE OIL 1.4 LITRE [12]£10.91 Add to
2031111-9238-0110W-30 4 STROKE OIL 1.4 Litre [12]£12.55 Add to
