BODYWORK

Parts list

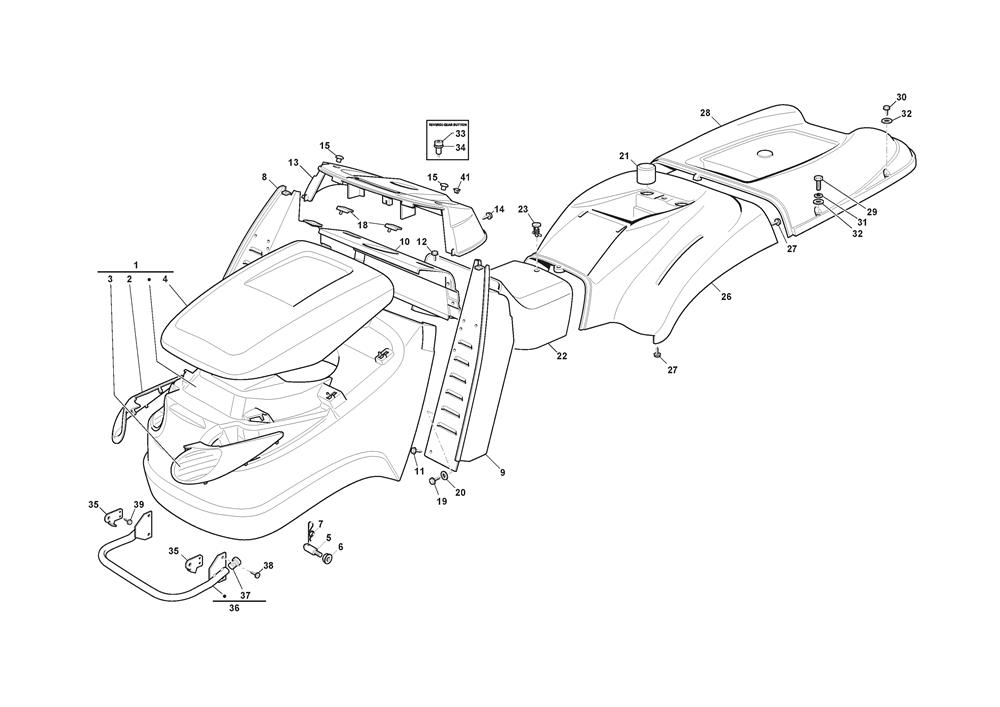

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076940/0UPPER ENGINE HOOD [GREEN]£71.46 Add to
005125510068/0BONNET FULCRUM PIN£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008382785325/0RIGHT DASHBOARD SUPPORT£44.23 Add to
009382785323/0LEFT DASHBOARD SUPPORT£44.23 Add to
010382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
011112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
012112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
013325120275/1PTE HYBRID BLACK DASHBOARD TCP£39.80 Add to
014112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
015112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
019112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
020112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
021325122000/2PROTECTION CAP£2.06 Add to
022325110546/0CENTRAL COVER [BLACK]£48.02 Add to
023125580020/2SPRING TENSIONED SCREW£7.23 Add to
026325109749/0WHEELS COVER [GREEN] HYDRO£113.39 Add to
027112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
028382110246/0GRASSCATCHER TOP [GREEN]£170.61 Add to
029112674700/0SCREW M6 X 35£2.06 Add to
030112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
031112582100/0LOCK WASHER M6£2.06 Add to
032112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
033325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
034325256250/0THREADED RING NUT£2.87 Add to
035325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
036382869025/0FRONT BUMPER BAR£117.75 Add to
037118737860/0END CAP D=40£2.06 Add to
038112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
039112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
041325120233/0CAP (OBSOLETE)£4.28 Add to
