CUTTING PLATE LIFTING

Parts list

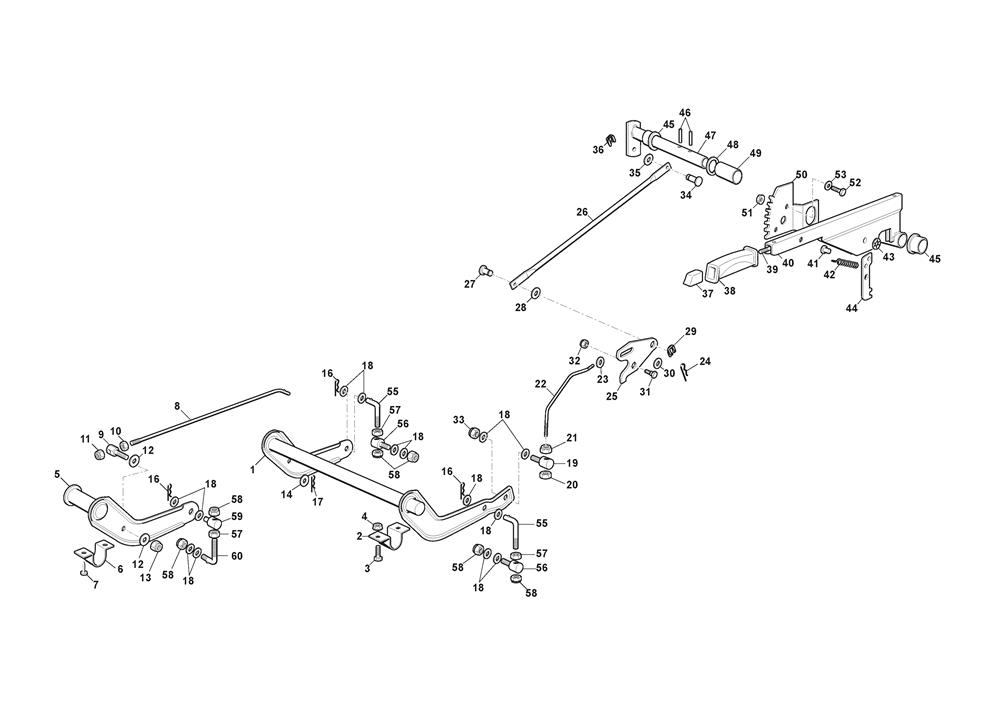

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382000511/0	REAR PLATE AXLE TC 92	£37.88	Add to
002	325547037/2	FIXING CLAMP	£3.69	Add to
003	112791011/0	SCREW TE M6x14 UNI 5739 ACC.8.8	£1.79	Add to
004	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
005	382318137/0	FULCRUM LEVER	£35.71	Add to
006	325547041/1	LEFT PLATE	£5.73	Add to
007	112731601/0	SELF-TAP SCREW 4.8 x 16	£2.32	Add to
008	125033051/1	CONNECTING ROD	£16.41	Add to
009	125510040/2	PIN	£7.11	Add to
010	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
012	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
013	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
016	125110800/0	COTTER PIN D=10	£1.91	Add to
017	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
018	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
019	125510007/2	CONNECTING PIN	£5.76	Add to
020	112295200/0	HEXAGON NUT M10	£1.79	Add to
021	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
023	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
024	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
026	325033049/1	REINFORCEMENT ROD	£17.59	Add to
027	125510053/2	PIN	£2.06	Add to
028	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
029	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
030	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
031	122524970/3	SEAT FULCRUM PIN FROM S/N 88153	£2.06	Add to
032	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
033	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
034	125510053/2	PIN	£2.06	Add to
035	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
036	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
037	125605000/1	BUTTON	£2.74	Add to
038	325394536/0	KNOB	£2.06	Add to
039	125033002/1	PUSH ROD	£4.52	Add to
040	382318139/1	DECK LIFTING LEVER	£42.53	Add to
041	125510011/1	PIN	£2.06	Add to
042	125430208/1	SPRING	£3.83	Add to
043	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
044	325470901/1	DOG PLATE	£11.36	Add to
045	122034523/0	BUSH	£2.06	Add to
046	112620206/0	PIN	£1.79	Add to
048	322672153/0	ANTI-FRICTION WASHER 20.2 x 30 x 0.8	£2.06	Add to
049	125160025/1	SPACER	£6.55	Add to
050	325735506/2	HEIGHT ADJUST QUADRANT	£21.35	Add to
051	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
052	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
053	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
055	125840015/2	TIE ROD	£8.17	Add to
056	125510024/1	PIN	£5.46	Add to
057	112295200/0	HEXAGON NUT M10	£1.79	Add to
058	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
059	125510069/1	PIN	£7.51	Add to
