CYLINDER HEAD

Parts list

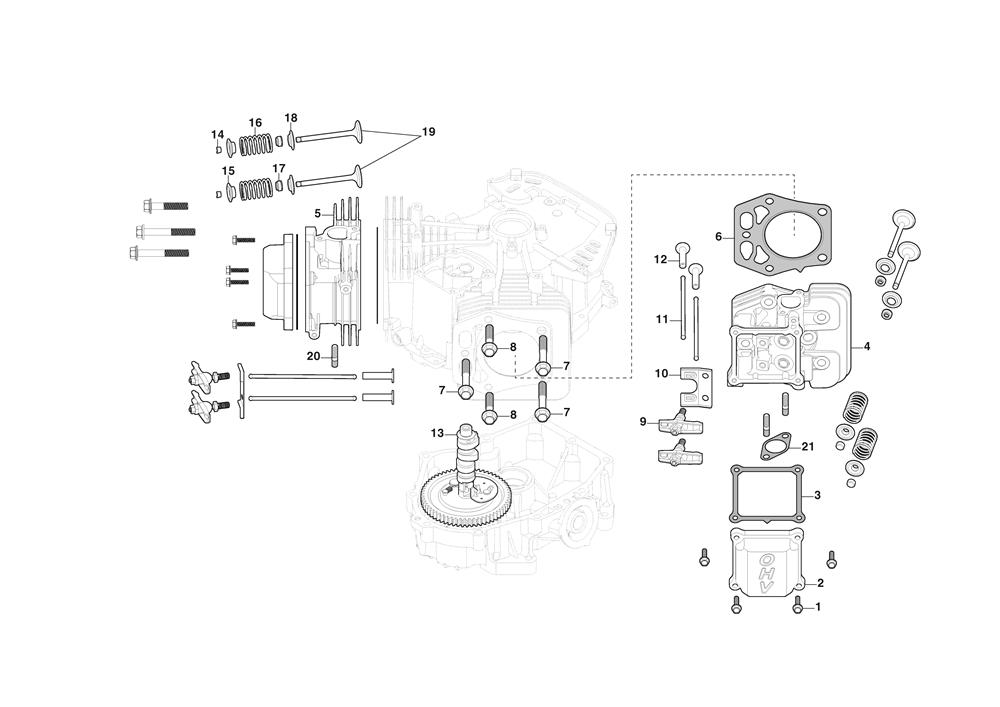

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551535/0HEXAGONAL BOLT£1.87 Add to
002118551549/0COVER, CYLINDER HEAD£10.36 Add to
003118551550/0GASKET, CYLINDER COVER£12.55 Add to
004118551546/1CYLINDER HEAD£140.59 Add to
005118551547/1CYLINDER HEAD£140.59 Add to
006118551627/0GASKET, CYLINDER HEAD£21.82 Add to
009118551558/0VALVE ROCKER ASSY£9.41 Add to
010118551561/0PLATE, PUSH ROD GUIDE£4.91 Add to
011118551559/0PUSH ROD£6.27 Add to
012118551560/0LIFTER, VALVE£13.23 Add to
013118551556/1CAMSHAFT£132.33 Add to
014118551247/0VALVE PLATE£2.06 Add to
015118551246/0VALVE SPRING RETAINER£4.68 Add to
016118550529/0VALVE SPRING£6.42 Add to
017118551248/0VALVE STEM SEAL£8.60 Add to
018118551245/0SEAT VALVE PLATE£3.55 Add to
019118551616/0VALVE KIT£34.35 Add to
020118551336/0STUD BOLT 8 X 40£1.39 Add to
021118551272/0MUFFLER GASKET£2.87 Add to
