FRAME

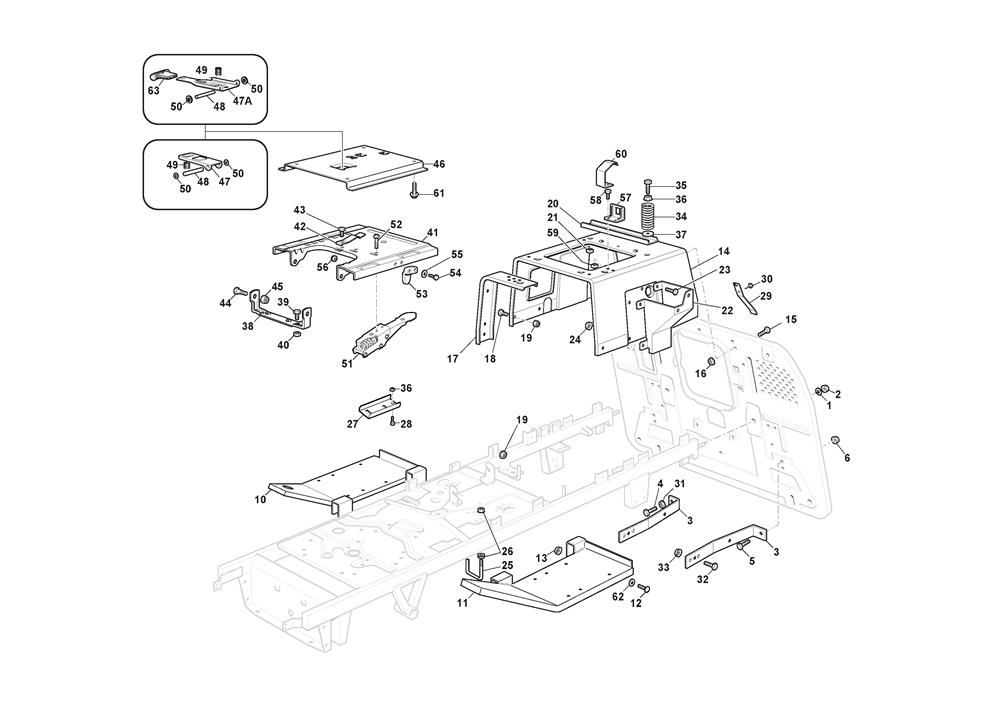

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0029739-1031-22NUT M10£2.32 Add to
003325774273/2REINFORCING BRACKET£9.28 Add to
004112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
005112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
006112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
010325500052/0RIGHT FOOTBOARD [PLASTIC]£110.47 Add to
011325500053/0LEFT FOOTBOARD [PLASTIC]£110.47 Add to
012112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014325785133/5SEAT SUPPORT£65.02 Add to
015112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
016112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
017325650065/1REINFORCING BRACKET£9.54 Add to
018112791213/1SCREW M6 X 18£1.74 Add to
019112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
020325650067/1REINFORCING PLATE£6.27 Add to
021112360420/0NUT£2.06 Add to
022325785137/1SUPPORT PLATE£30.26 Add to
023112791213/1SCREW M6 X 18£1.74 Add to
024112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
025125580019/1BELT GUIDE£4.37 Add to
026112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
027325774805/0FIXING BRACKET£67.53 Add to
028112818700/0SCREW M8 x 25£2.81 Add to
029125430238/1SPRING£4.52 Add to
030112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
031112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
032112800815/0SCREW TE FL M8 x 16£2.06 Add to
033112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
034125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
035125943001/1SCREW£2.06 Add to
036112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
037112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
038382774305/0SEAT SUPPORT BRACKET£11.76 Add to
039112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
040112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
041382785301/0FIXED SEAT SUPPORT£45.26 Add to
042125430203/1SPRING£3.69 Add to
043112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
044122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
045112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
046325785147/2MOVING SEAT SUPPORT£38.26 Add to
047325318109/1STOP LEVER£4.91 Add to
048125510000/0PIN£1.79 Add to
049125430202/1SPRING£2.06 Add to
050112604897/0STARLOCK WASHER D=5£2.06 Add to
051382318316/1OPC SPRING LEVER ASSEMBLY£42.53 Add to
052112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
053325060049/0SEAT SWITCH CAM£2.74 Add to
054112815050/0SCREW M5 x 25£2.06 Add to
055112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
056112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
057325755025/3SEAT SWITCH SUPPORT£6.14 Add to
058112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
0599739-0531-22NUT M5£2.47 Add to
060325430255/0SEAT PROTECTION SPRING£4.37 Add to
0619959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
062122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
063322394505/0WHEEL LEVER KNOB [BLACK]£2.87 Add to
