GUARDS AND CONVEYOR

Parts list

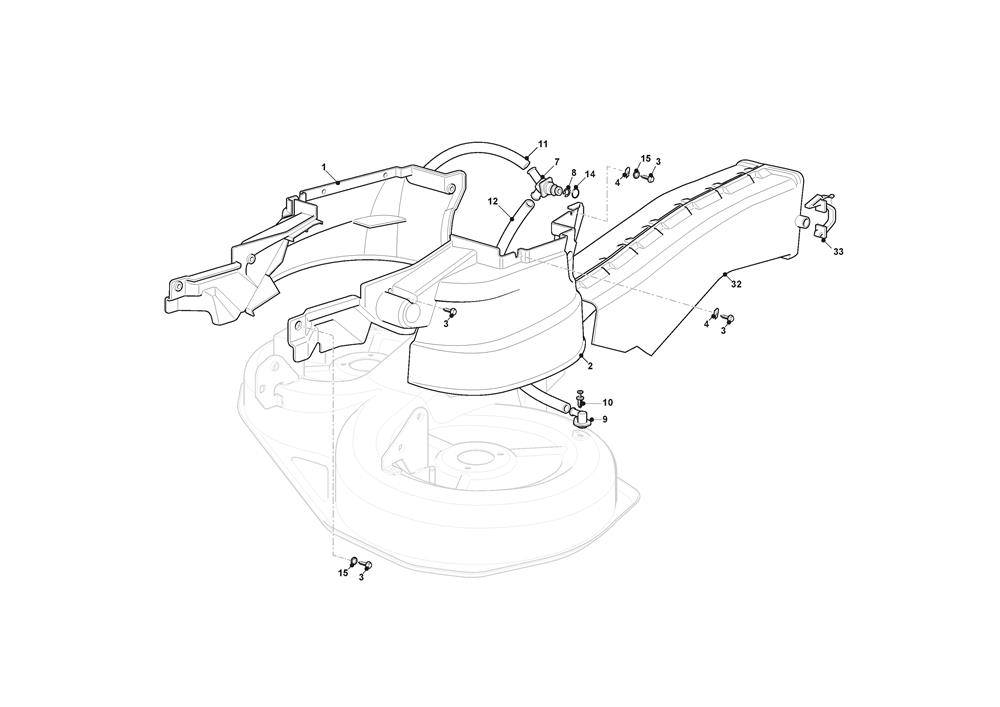

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060193/0R/H BELT PROTECTION GUARD£208.89 Add to
002325060195/0L/H BELT PROTECTION GUARD£208.89 Add to
003125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
0041134-4176-01CLIP£5.19 Add to
007325033066/0CUTTING DECK WASHING FITTING£3.69 Add to
008112000970/0CIRCLIP D=12£2.02 Add to
009325033065/0CUTTING DECK WASHING FITTING£2.87 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011325869069/0WASHING TUBE L=980£19.54 Add to
012325869068/0WASHING TUBE L=350£9.14 Add to
014119035000/0O RING 10.77 x 2.62£5.46 Add to
015112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
032382108024/0DISCHARGE CHUTE£18.79 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
