Product details and specs

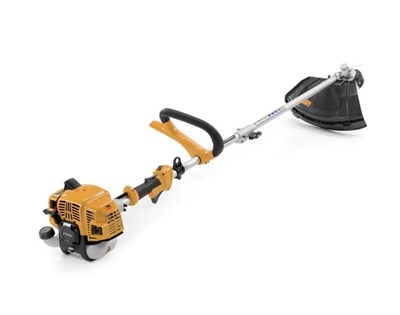

The STIGA BC 330 A brushcutter is powered by a 25.4 cc (0.7 kW) 2-stroke petrol engine and has a cutting width of 43 cm. This brushcutter has a jointed shaft meaning it can be separated into two parts to save storage space and for easier transportation. The single loop handle is ergonomic and makes the machine very manoeuvrable thanks to the supplied single harness. The BC 330 A has a nylon Tap&Go head which quickly releases the line by simply tapping it on the ground and a 255 mm 3T blade which is ideal for cutting brushwood.
GENERAL INFO
POWER
Power source
Petrol 2-stroke
Power
0.7 kW
Displacement
25.4 cm³
Engine rotation speed
11000 rpm
Maximum engine speed
11000 rpm
Idling speed (+/- 100)
3100 rpm
Starter
Easy start recoil
Primer
Yes
Choke
Manual
Fuel tank capacity
0.65 l
Carburettor type
Rotary valve
Ignition coil type
Analogic
Air filter type
Sponge
CUTTING SYSTEM
Nylon line diameter (millimeter)
2,4
Cutting width
43 cm
Nylon head type
Tap & Go dual line
Nylon line length
4 m
Blade type
3 T
Blade diameter
255 mm
EQUIPMENT
Handle type
Loop
Vibe Control System (VCS)
Yes
Shaft type
Straight split
Shaft tube diameter
26 mm
Inner shaft diameter
8 mm
Soft grip handle
Yes
Harness
Single
TOOLS KIT
Included tools kit
Spark plug key, screwdriver
VIBRATION AND NOISE DATA
Measured sound power level dB(A)
107.02
Vibration level rear handle (m/s2)
7.13
Guaranteed sound power level (LwA) - dB(A)
109
Vibration level front handle (m/s2)
5.76
Measured sound pressure level at operator ear dB(A)
89.2
OVERALL DIMENSIONS
Pack weight
10.4 kg
Product weight without cutting system
6.3 kg
Product length
1890 mm
Product width
385 mm
Product height
300 mm
Weight
7.1 kg
