PRODUCT DETAILS AND SPECS

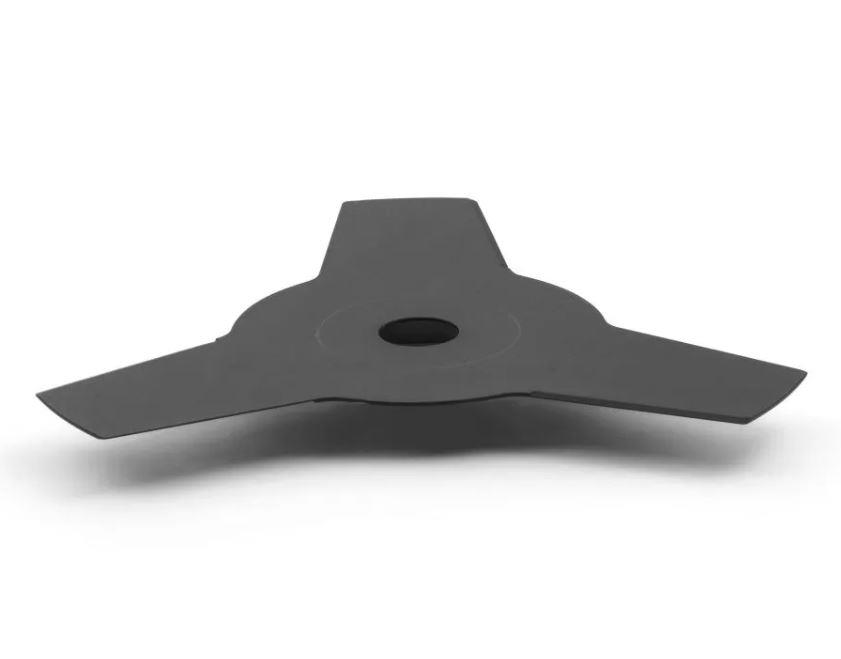

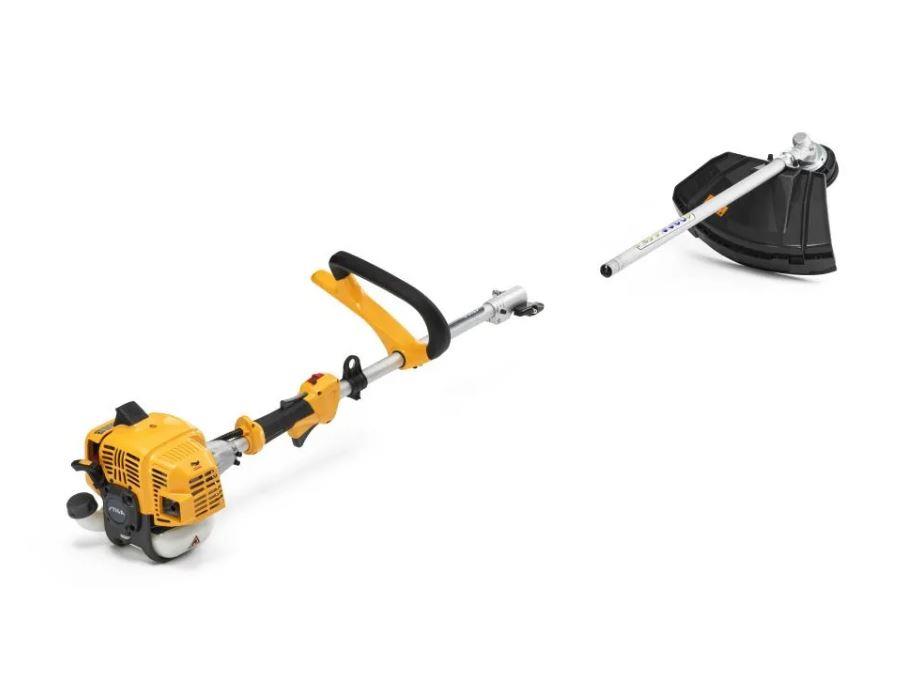

The STIGA MT 330 - 5 in 1is a 5-in-1 multifunctional machine which can be used with various tools, all powered by the same 25.4 spark ignition motor with a net power output of 0.7 kW. It can be used as a brushcutter using the straight shaft and nylon head with Tap&Go technology for quick release of the line. The 3T blade can tackle the densest vegetation. The hedge trimmer function works using the accessory with 40 cm blade and 180° rotating head, while the 25 cm bar makes short work of pruning. All the parts and accessories can be used with a 70 cm extension pole included with the single harness.
A 5-year manufacturer's warranty is included with this model (T&C's apply).
POWER
Power source
Petrol 2-stroke
Power
0.7 kW
Displacement
25.4 cm³
Engine rotation speed
11000 rpm
Maximum engine speed
11000 rpm
Idling speed (+/- 100)
3100 rpm
Starter
Easy start recoil
Primer
Yes
Choke
Manual
Fuel tank capacity
0.65 l
Carburettor type
Rotary valve
Ignition coil type
Analogic
Air filter type
Sponge
CUTTING SYSTEM
Nylon line diameter (millimeter)
2,4
Cutting width
43 cm
Cutting length
40 cm
Blade length
43 cm
Nylon head type
Tap & Go dual line
Nylon line length
4 m
Blade type
Dual action - Laser cut
Teeth distance
25 mm
Blade diameter (brushcutter)
255 mm
Blade type (brushcutter)
3 T
Blade rotation angle
180 °
Bar type
Sprocket nose
Bar length
25 cm
Bar length (inches)
10 in
Chain type
3/8" .050" (91PJ-40X)
Chain speed
5.2 m/s
Chain oil tank capacity
0.12 l
Chain oil pump
Automatic
Chain tensioning system
Front screw tensioning
EQUIPMENT
Handle type
Loop
Vibe Control System (VCS)
Yes
Shaft tube diameter
26 mm
Inner shaft diameter
8 mm
Brushcutter attachment
Yes
Hedger attachment
Yes
Soft grip handle
Yes
Shaft extension
70 cm
Harness
Single
Pruner attachment
Yes
TOOLS KIT
Included tools kit
Spark plug key, screwdriver
VIBRATION AND NOISE DATA
Hedger measured sound pressure level at operator ear (LpA) dB(A)
92
Hedger guaranteed sound power level (LwA) dB(A)
107
Brushcutter guaranteed sound power level (LwA) dB(A)
109
Pruner guaranteed sound power level (LwA) dB(A)
111
Pruner measured sound pressure level at operator ear (LpA) dB(A)
94
OVERALL DIMENSIONS
Pack weight
15.98 kg
Product weight (brushcutter version)
8.2 kg
Product weight (hedger version)
9.2 kg
Product weight (pruner version)
8.9 kg
Product weight (trimmer version)
8.4 kg
Product length
1890 mm
Product width
385 mm
Product height
300 mm
Weight
7.1 kg
