Description

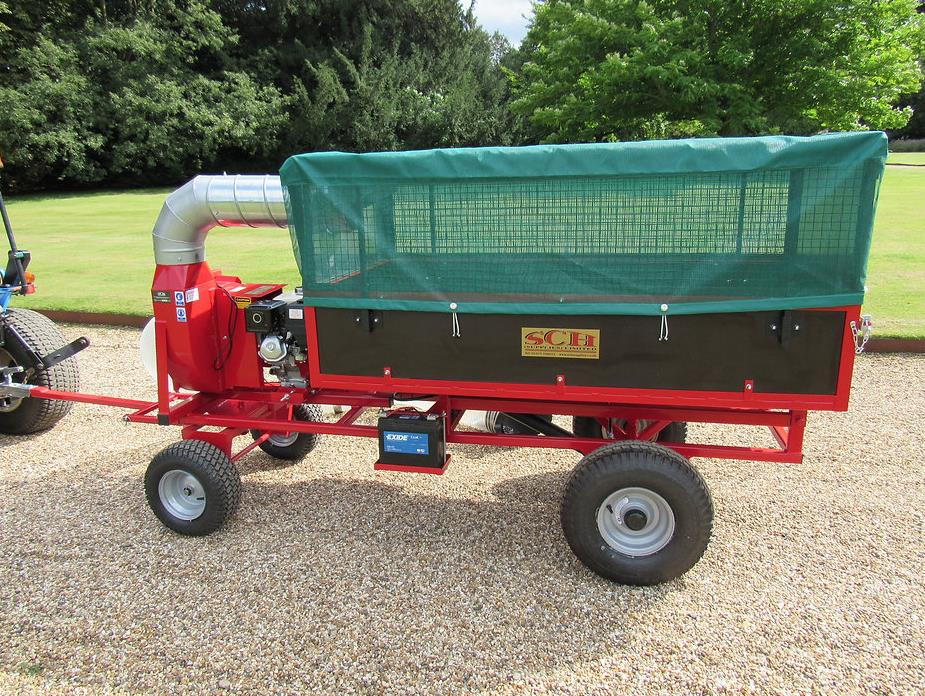

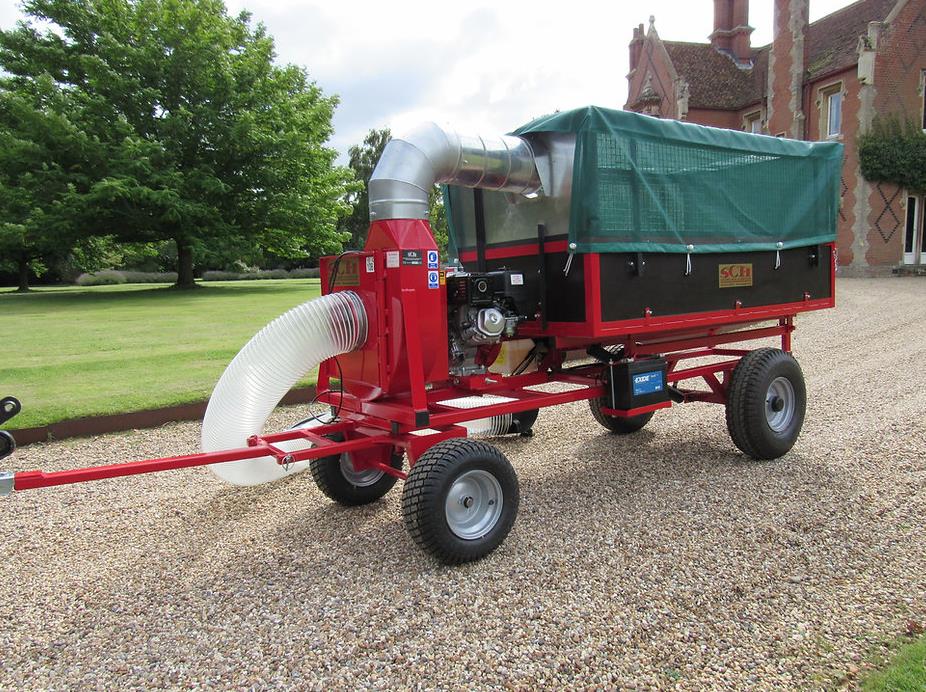

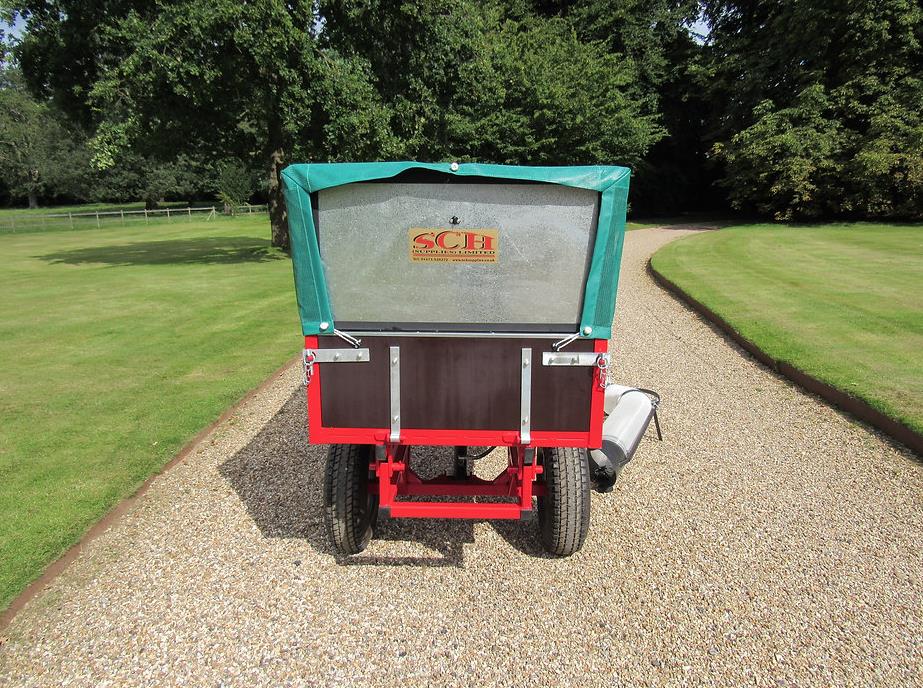

The TPSU combines two of our best-selling machines - the powerful PSU Leaf Suction Unit with the HTRL Trailer and PSUTK Trailer Kit, onto a 4-wheel trailer.
As the weight of the trailer is not on the towing vehicle, it can be pulled by small tractors, ATVs and RTVs.

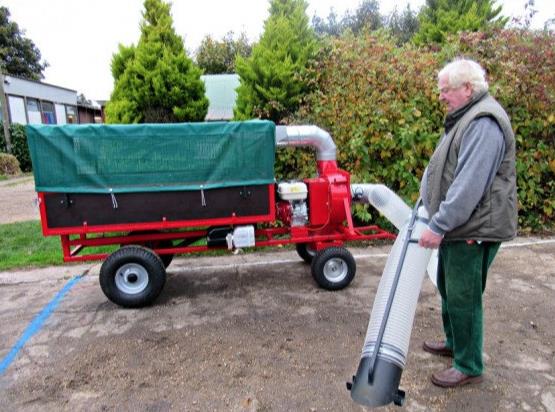

The unit has an 8" diameter collection hose, and a hand handle to make for comfortable operation and copes with large quantities of leaves being drawn up and then chopped by the fan.
Specification
| Engine | 9.0hp Honda Petrol Engine |
| Dimensions | L (not incl. tow bar): 3048mm (120") x W: 939mm (37") |
| Wheel Type | 600x9 ball bearing hubs at rear 16x650 with bearings at front |
| Weight | Approx 370kg |
| Hose | 200mm (8") Diameter |
| Trailer Tipping | Electric powered hydraulics or hydraulic lines from your compact tractor - available in 1 or 2 line options |
| Hitch Type | Clevis hitch as standard (ball hitch optional) |
The TPSU range of leaf suckers can cope with large quantities of leaves being drawn up and then chopped by the fan. This means that much smaller pieces go into the trailer, thereby effectively increasing capacity due to there being fewer trips to empty.
If wet leaves or other debris block the inlet, cleaning is simple via the removal of just one bolt. There is also an inspection door fitted with a safety interlocking switch.
- Clevis Hitch Standard
- 50mm Ball Hitch £54.89 Extra
The fan is belt-driven, so there is no shock loading on the crankshaft. The tips of the fan itself are easily and cheaply replaceable.
The trailer is narrow enough to fit down small paths, and when not used to collect leaves, the suction unit can be removed, thus supplying you with a trailer for many other purposes.
Hydraulic Options
Tractor Hydraulics - 1 Line
Tractor Hydraulics - 2 Lines - Extra £164.66
Electric Pump & 12V Battery Extra £539.70

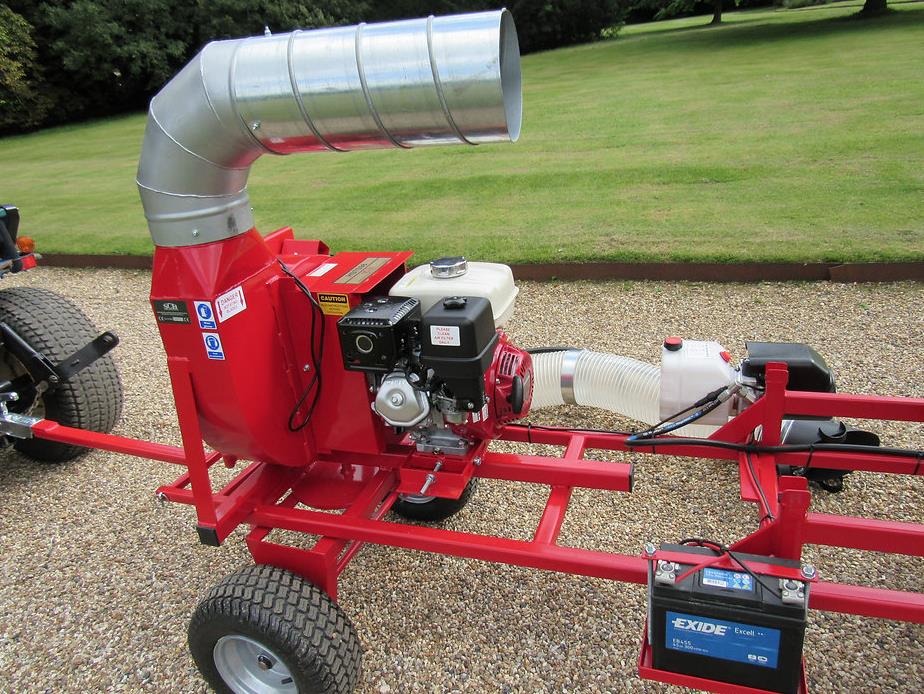

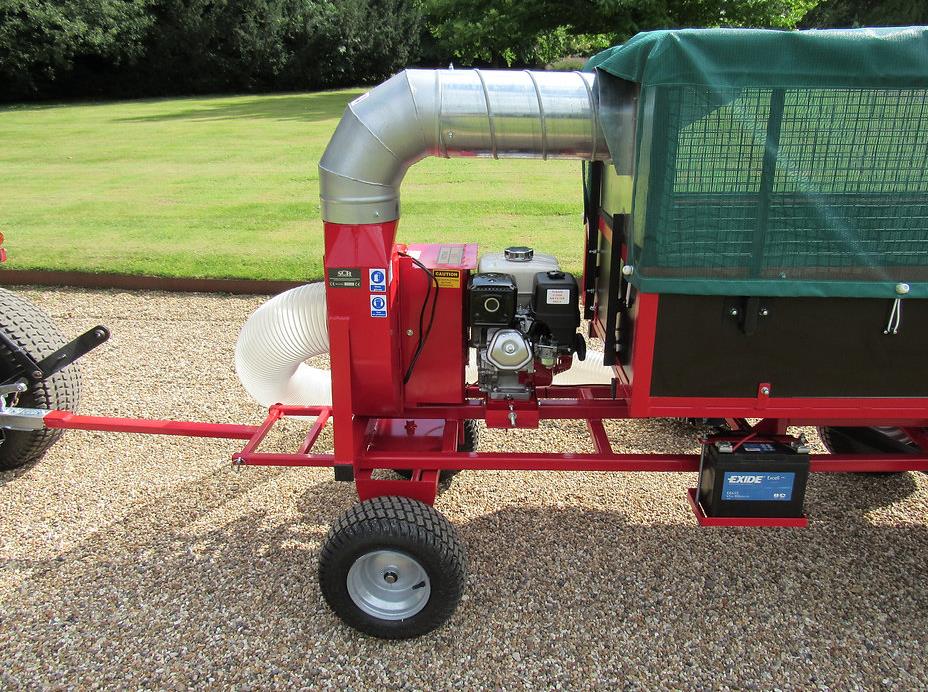

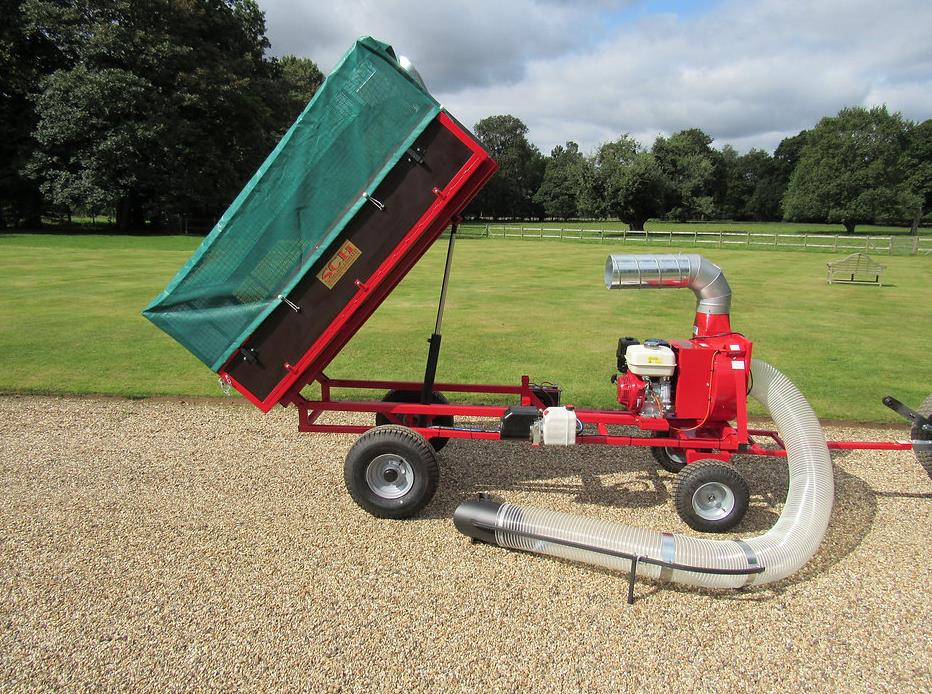

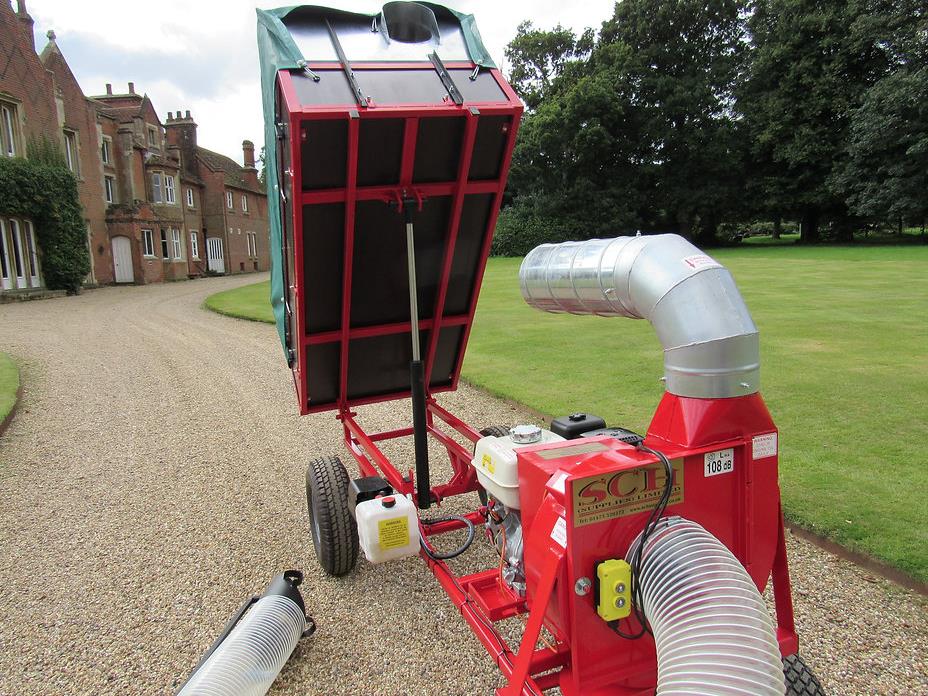

The trailer's hydraulic tipping mechanism can be powered by an integral battery and electric hydraulic pump, or it can be powered from your tractor's own 1 or 2 line hydraulic system. Please select the required system in the product options. Pictures show the electric pump & battery version.
Free Delivery Arrives assembled.
