Grillo

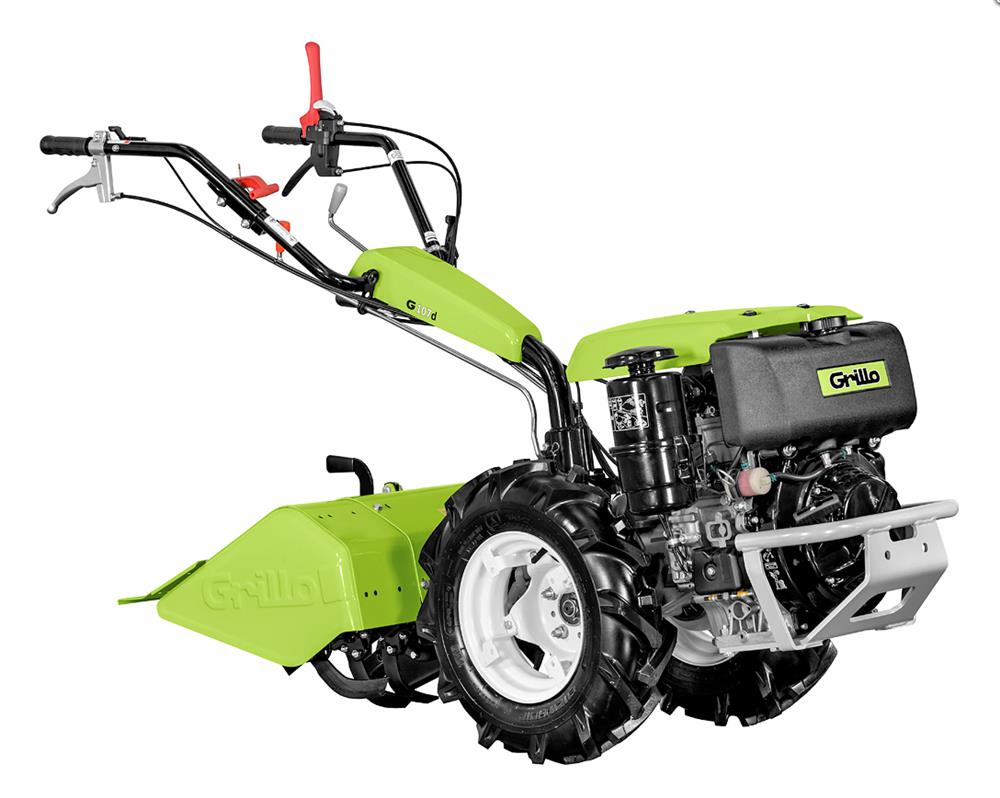

The Grillo G 107 d is a walking tractor equipped with a reversible handlebar and ideal for working on medium-sized areas. The six-speed gearbox with gears in oil-bath 3 forward gears and 3 reverse gears. The differential lock comes as a standard feature on this machine.
The G 107 d is also fitted with an automatic quick gear-inverter, a device that manages the drive when turning the handlebar of 180°.
The reverse gear handlebar is placed on the handlebar, and is easily achievable.
Together with its broad offer implements and its reversible handlebar, G 107 d turns out to be an extremely versatile walking tractor.
The implements can be attached via a flanged coupling or a quick coupling, available as an extra, without the need of tools.
A plough kit containing larger wheels, adjustable extensions, 180° turn-wrest plough and wheel weights is available as an optional attachment.
To achieve a greater stability on slopes you can widen the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

Free Delivery Comes Built up Ready to Use

Technical Data

EngineKohler KD15 440
Start recoil starter
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
 EngineKohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
 EngineHonda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
 EngineLoncin G300FA
Start recoil starter
Supply fuel
Displacement 302 cc, 1 Cylinder
Power 9.3 HP (6.8 kW)
Air cooled
Dry air filter
 EngineRato R300D
Start recoil starter and electric with 12V battery
Supply fuel
Displacement 301 cc, 1 Cylinder
Power 8.2 HP (6 kW)
Air cooled
Dry air filter
Fuel tank capacity5.3 L eng. GX270 - 5.4 L eng. R300D - 6.1 L eng. G300FA - 5.0 L eng. KD15 440
Transmissionwith oil bath gears
 GearboxWith clutch engagement. The walking tractor version has 3 forward gears + 3 reverse gears. The sickle bar version has 3 forward gears + 3 reverse gears
 Reverse gear unitInverter: rapid type with lever
 Clutchconic active
Standard rotary tillerAdjustable rotary tiller with x 4 tines, includes extension kits. Working width 680 mm
 Hoes system diametre31,5 cm
 Working widthAdjustable at 680, 470 at 370 mm
 Working depth16 cm
 Item no. standard rotary tiller984611
 P.T.O.965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Differential lockingDifferential with locking device by lever on the handlebar
Available tyresPneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels Tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed)
 SpeedWith 5.00-10 wheels 1st gear 1,3 km/h, 2nd gear 3,1 km/h, 3rd gear 3,6 km/h
 Service brakeBrake drum (kit upon request cod. 978111)
 Handlebarheight and side adjustment, reversible
 Safety devicesActive clutch, reverse speed – PTO cut-out
WeightWeight: standard version 136 kg


PRICE ON APPLICATION
