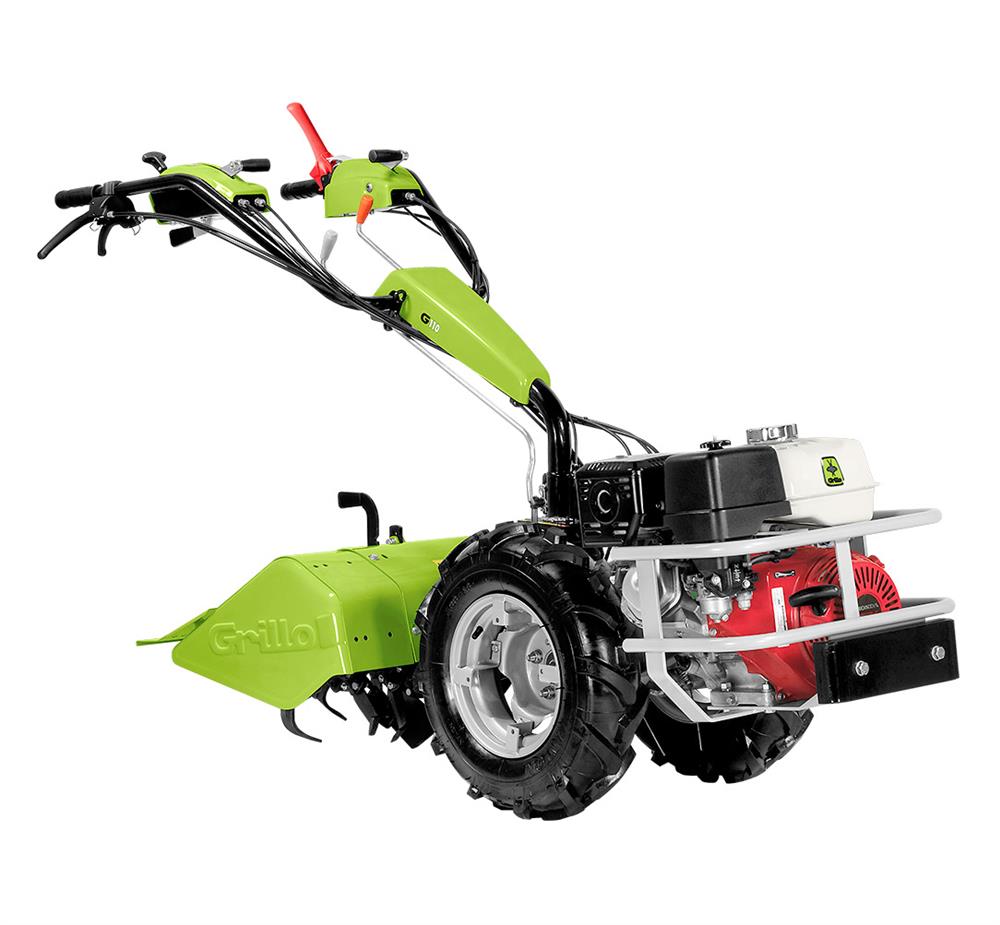

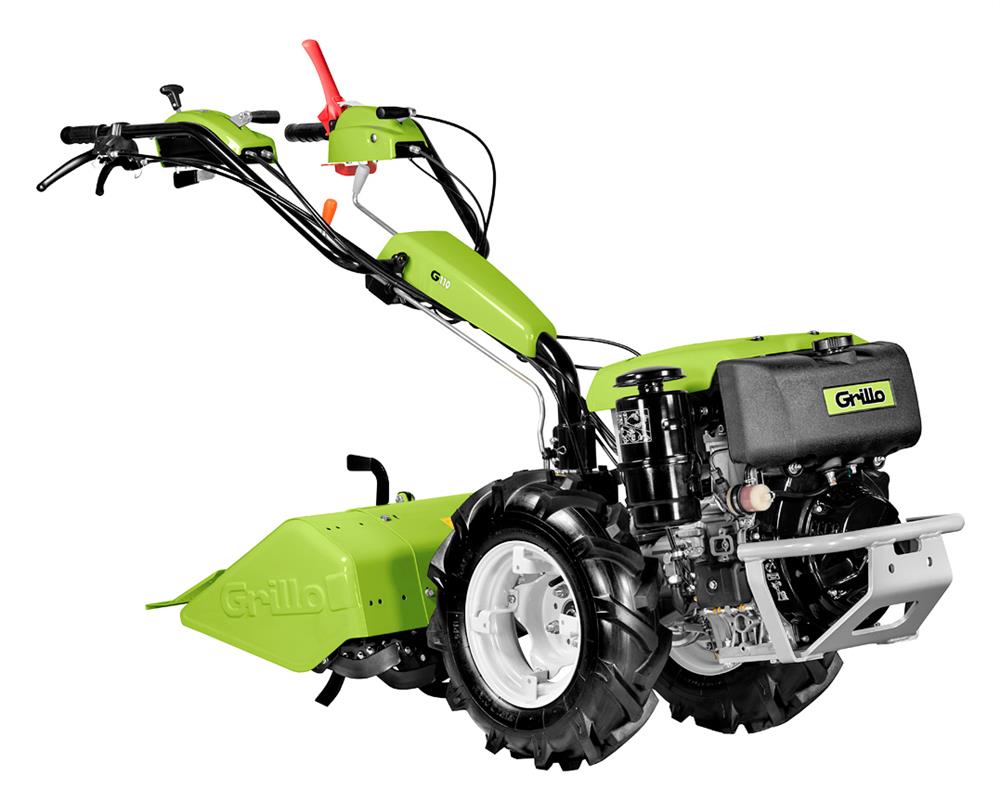

Grillo G110 A Powerful and Versatile Walking Tractor (

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.

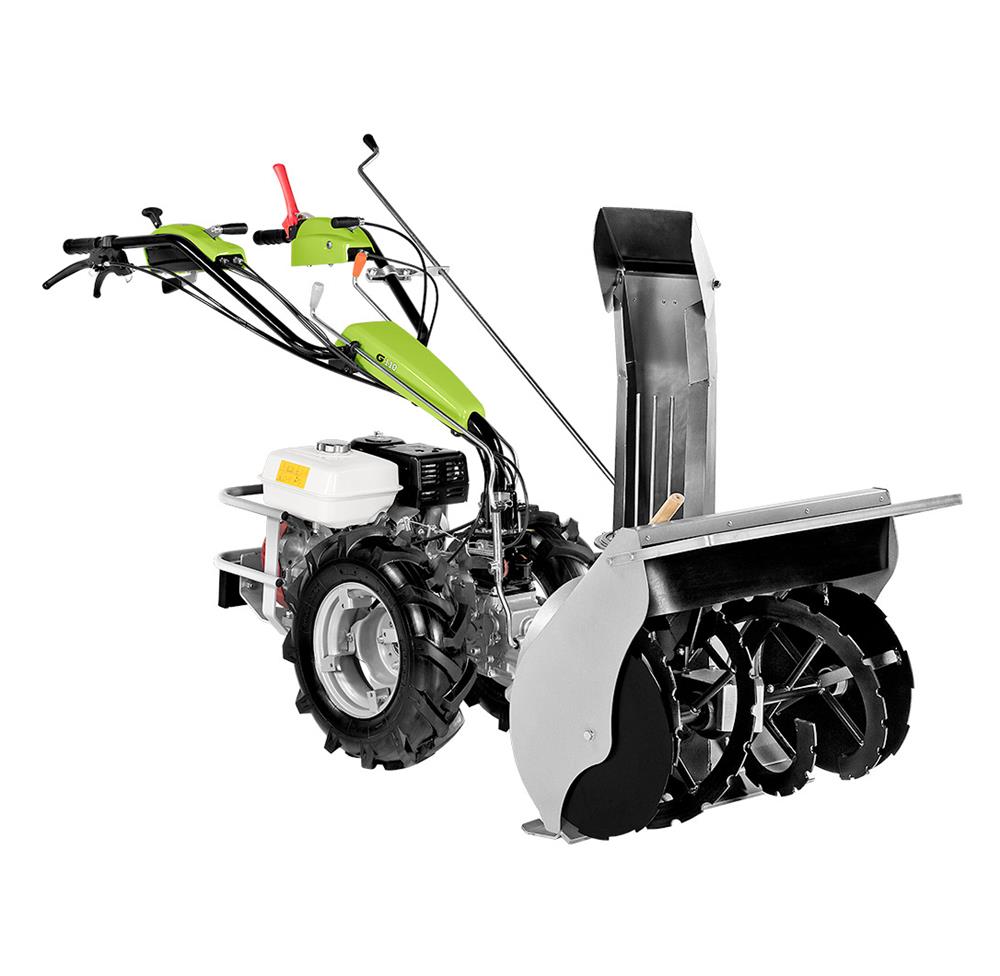

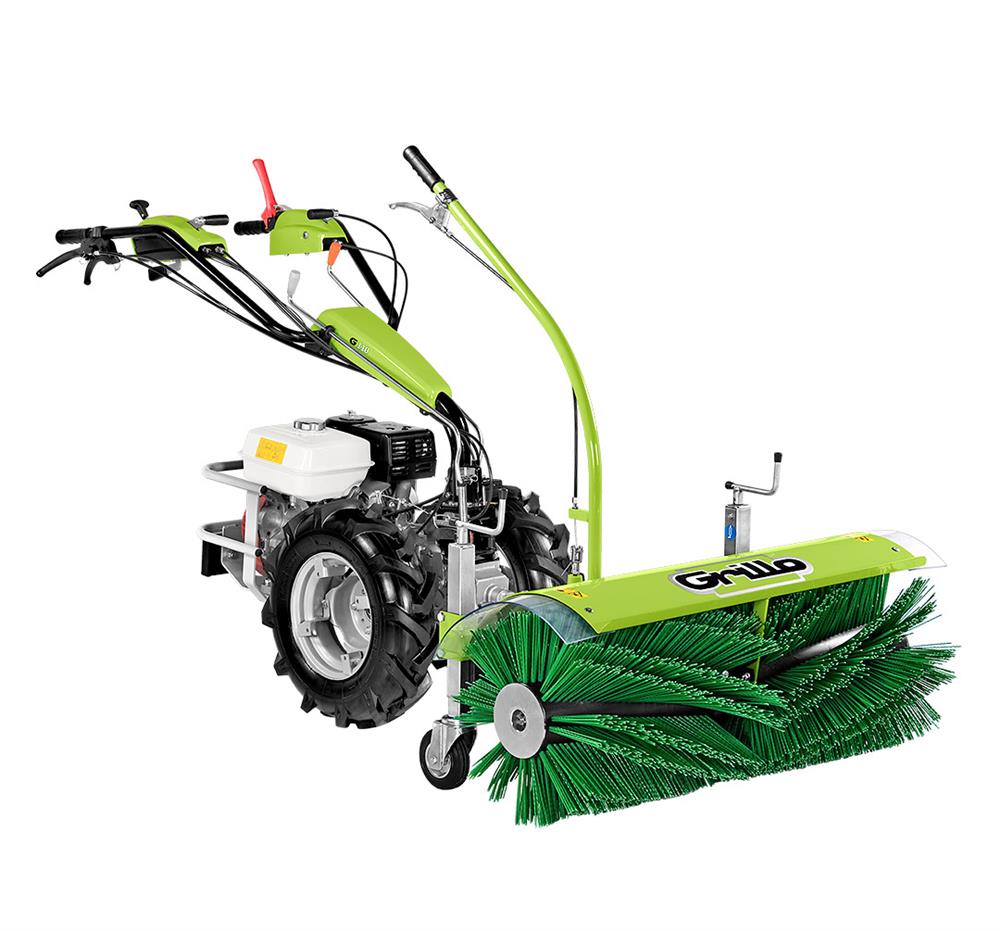

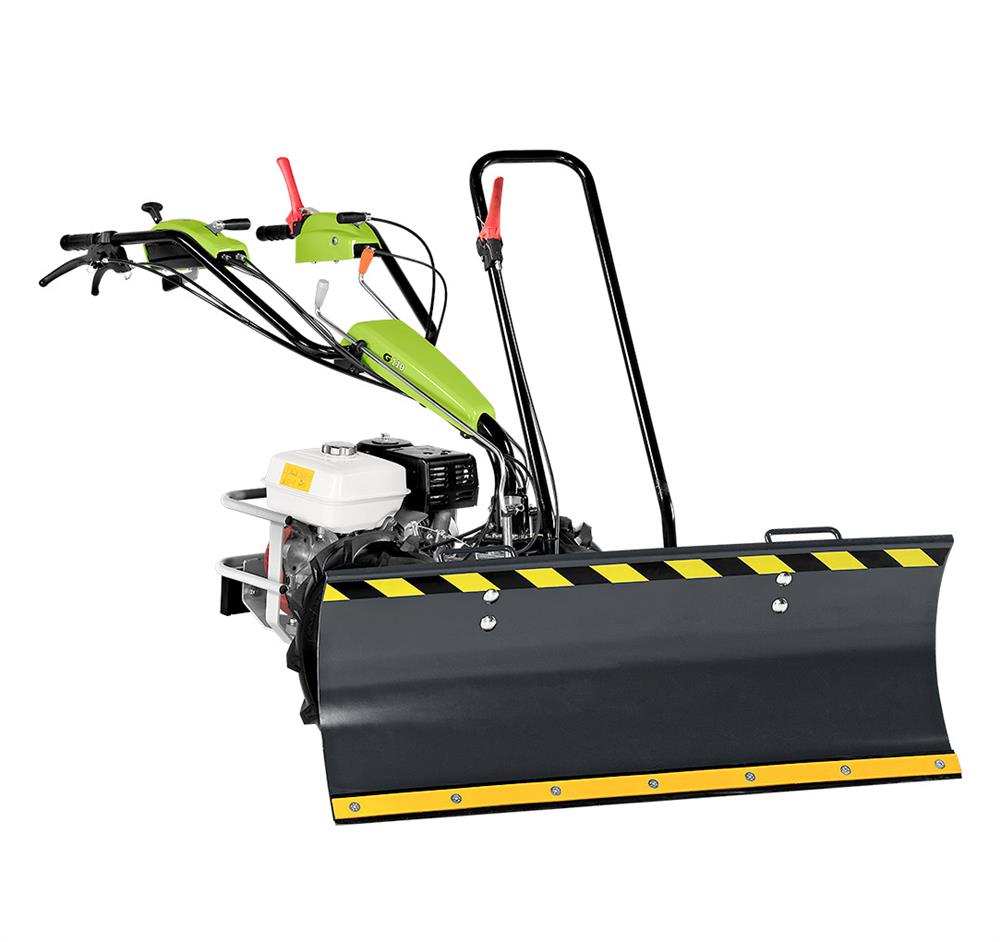

A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.
The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.
To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

Free Delivery comes Built up and Ready to Use

Specifications

Technical Data

Engine	Honda GX390 OHV Start recoil starter Supply fuel Displacement 389 cc, 1 Cylinder Power 11.7 HP (8.7 kW) Air cooled Oil bath air filter
	Fuel tank capacity	6,1 Lt. (GX390) - 5,0 Lt. (KD15 440)
	Transmission	Gear type in oil bath.
	Gearbox	With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears.
	Reverse gear unit	Rapid through lever.
	Clutch	Conic and active.
	Standard rotary tiller	Adjustable, with tines x4. Working width: 68 cm.
	Hoes system diametre	31,5 cm
	Working width	Adjustable 37, 47, 58, 68 cm.
	Working depth	16 cm.
	Item no. standard rotary tiller	984611
	P.T.O.	965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation).
	Differential locking	With lock device through lever.
	Available tyres	4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed)
	Speed	With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h.
	Service brake	Drum brake, as a standard feature.
	Handlebar	With height and side adjustment and reversible.
	Safety devices	Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed.
	Weight	142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 164 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels.
