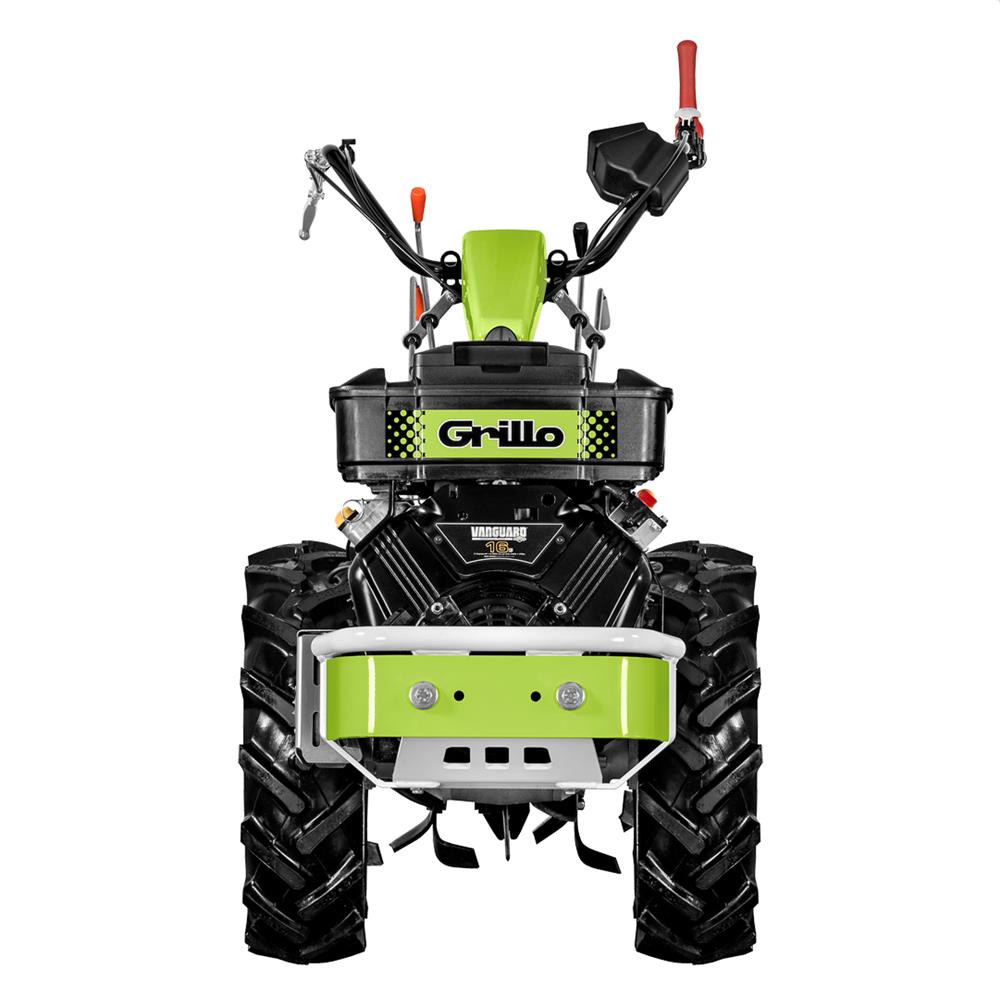

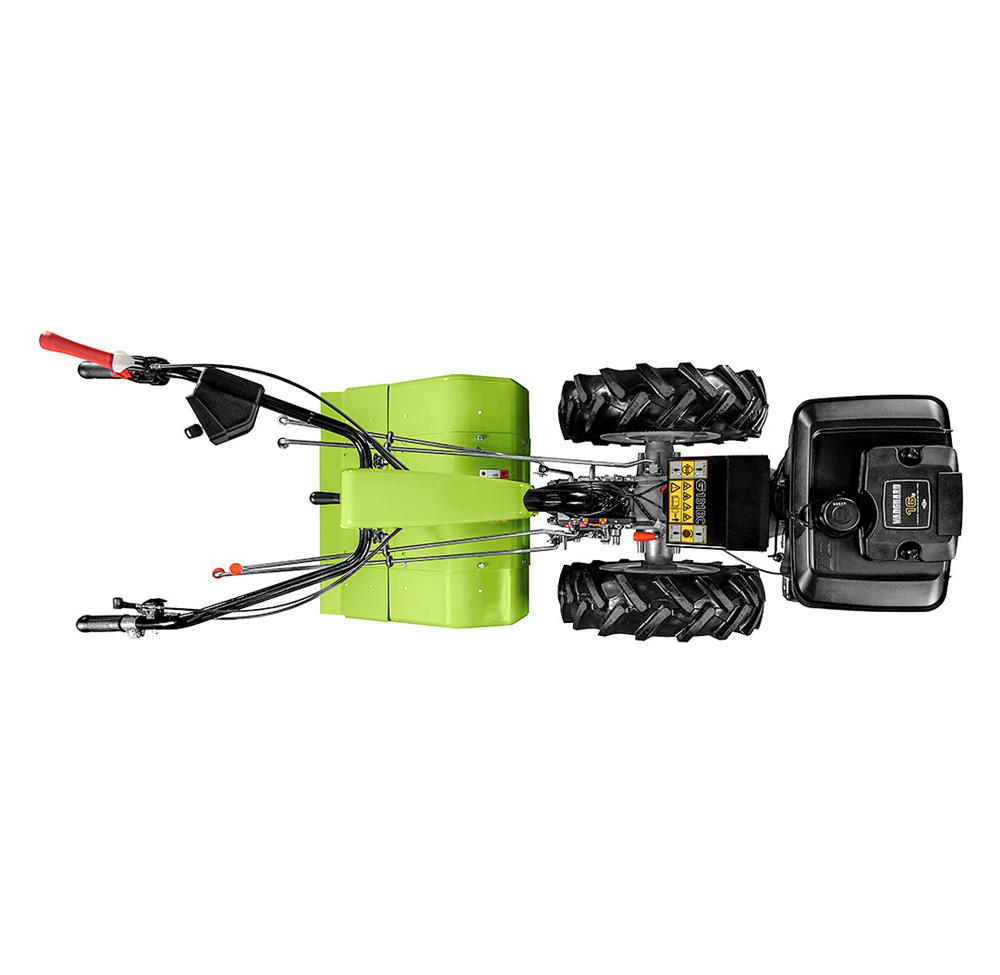

Grillo G131 BC Walking Tractor with Strength and Outstanding Performance (

The G 131 is an ideal walking tractor for working in large areas in agriculture, horticulture, and in vegetable gardens.
It is a well-balanced machine, fitted with a 6-speed gearbox in oil-bath with 4 forward gears + 2 reverse gears.

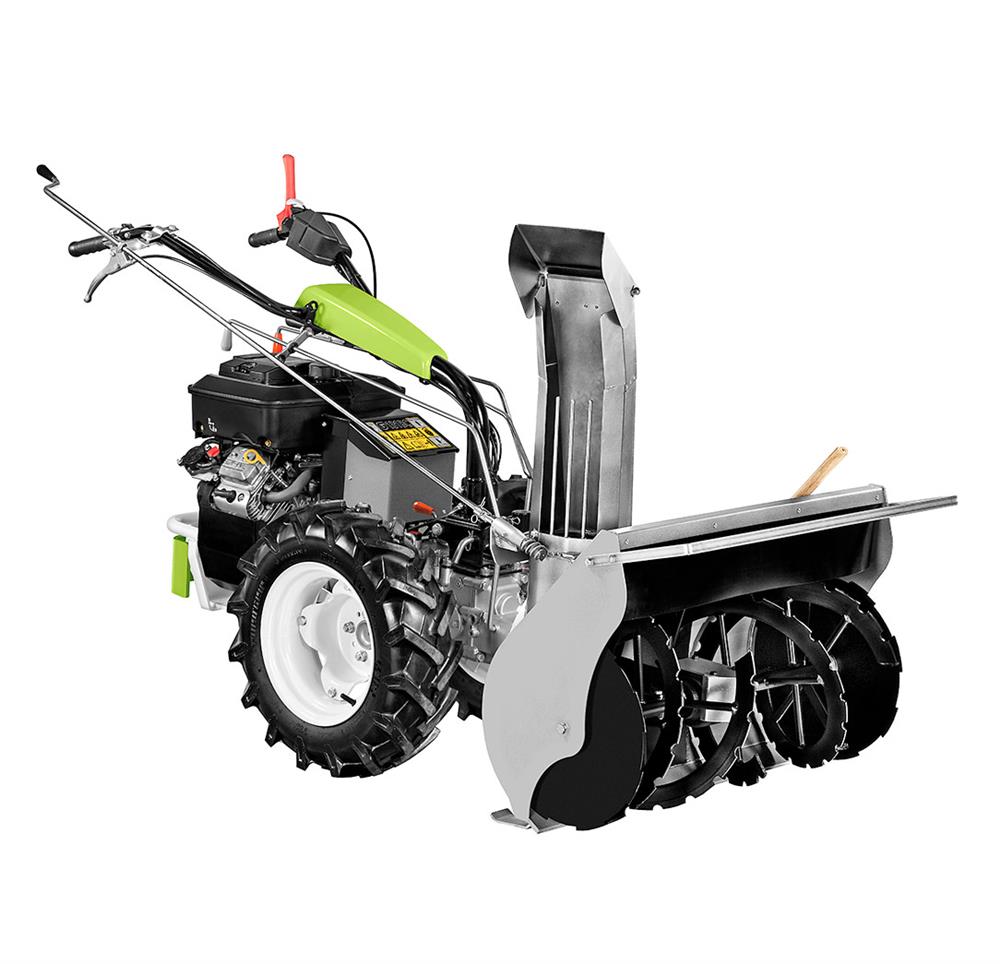

Due to the possibility to reverse the handlebar, several front and rear implements can be mounted to this machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower, power harrow etc.
They can be connected via a flanged coupling. An optional plough kit containing large wheels, wheel extensions, turn-wrest plough and wheel weights.
To make transport easier when the engine is turned off, you can disengage the wheel axle.
A greater stability can be achieved by widening the wheel track from 12 to 24 cm using the appropriate Grillo wheel extensions.

Free Delivery Comes Built up and Ready to Use

Specifications

Technical Data

Engine	Briggs & Stratton 16 Vanguard V-Twin OHV Start electric, with 12 V battery Supply fuel Petrol Displacement 479 cc, 2 Cylinders Power 14 HP (10.3 kW) - Gross power 16 HP Air cooled Dry air filter with interchangeable filter cartridges

	Fuel tank capacity	8.5 L (Vanguard 16) - 5 L. (KD15 440)
	Transmission	with oil bath gears
	Gearbox	With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
	Clutch	single dry disc with manual control

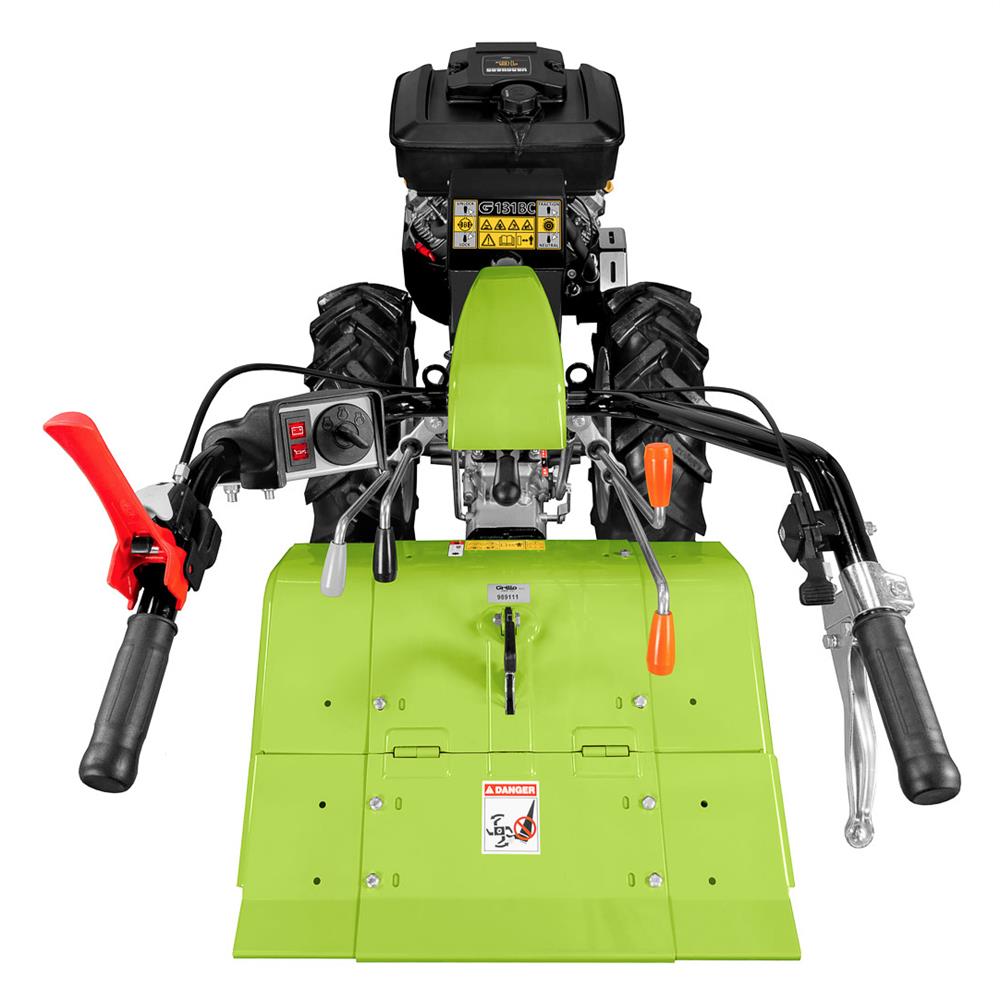

	Standard rotary tiller	Adjustable rotary tiller with x 4 tines Working width 700 mm
	Hoes system diametre	36 cm
	Working width	Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312)
	Working depth	18 cm
	Item no. standard rotary tiller	989011
	P.T.O.	a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm
	Differential locking	Differential with locking device by lever on the handlebar
	Available tyres	Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm
	Speed	In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h
	Service brake	Brake drum (kit upon request cod. 978611)
	Handlebar	height and side adjustment, reversible
	External sizes of the wheels	55, 60, 70 or 75 cm with 5.00-12 wheels
	Weight	195 kg (with Vanguard 16) - 192 kg (with KD15 440)

~~Was £6,735.00~~

NOW £6299.00

Add to basket
