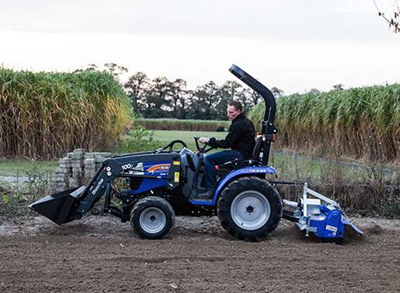

Very lightweight, compact and highly manoeuvrable in tight areas, the TM Range of tractors are ideally suited to gardens, schools and small sports turf areas like tennis courts. With these attributes the TM can also be found maintaining artificial turf, where its light footprint is an advantage.
TM3187 Compact Tractor feature an ISEKI 3 cylinder, clean burn, liquid cooled, 928cc, 11.5kW (16hp) diesel engine with a 14 L fuel tank. Category one 3-point linkage lift capacity of 540kgs. Standard equipment includes; power steering; mechanical transmission 6F/2R; selectable 2WD & 4WD with differential lock; folding ROPS, rear PTO; front & rear hitch; road homologation including headlights, turn signals, mirror and reflectors; 7-pin trailer lighting socket. With Agri Tyres or Turf Tyres.
Free Local Delivery Within 30 Miles by our own Driver to your door fully built and ready to cut grass
Power Engine: Type Diesel indirect injection, overhead valve
Displacement 761cc
No of cylinders 3
Power 11.8kW (16hp) at 2700rpm
Fuel capacity 14ltr (3.2gal)
Rated engine speed 2700rpm
Transmission Main Clutch Mech
Gear forward/reverse F6/R2
Speed 1.2km/h to 20.1km/h
Driven Wheels 4WD
Differential Lock Standard
Brakes Type Wet discs
Tyres Type Turf or Ag
Front 5.00-12 (Ag) 20x8-10 (Turf)
Rear 9.5-16 (Ag) 212/80D-15 (Turf)
PTO Engagement Mechanical Clutch
Rear PTO at engine rpm 540 @ 2500rpm
Hydraulics Steering Power Steering
Main System Engine mounted gear pump Max output Steering: 4.4 L/min Main system 13.5 L/min @2700rpm
Three point lift Category 0
Lift Capacity 540kg at ball ends, 280kg @ 24”
ROPS Type Rear foldable
Dimensions Length 2.46m
Width 1.105m across rear at ROPS mounted lamps
Height with ROPS 2.28m
Weight 575kg
Wheelbase 1.27m
