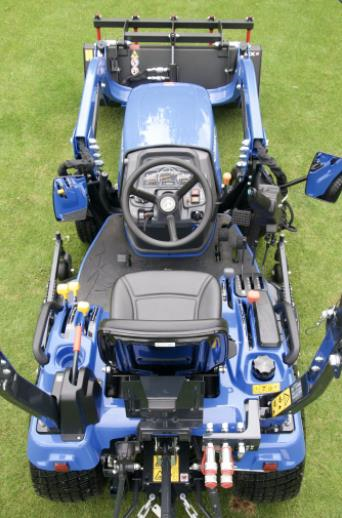

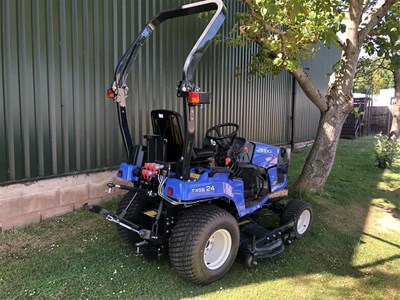

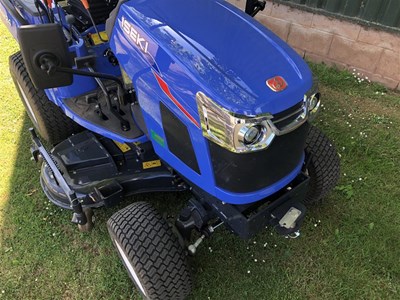

The TXGS24 benefits from a flat easy-access platform, clear automotive style dashboard and controls, with switchable four-wheel drive makes the TXGS24 very user friendly. Individual forward and reverse pedals give the operator precise control.

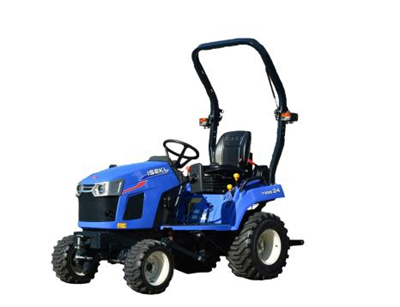

Its compact dimensions and powerful 23hp diesel engine makes the TXGS24 a multi-purpose grounds care tractor. Robust enough to take a front loader or back hoe and other implements via a Cat 1 3-point hitch including collectors and centre mounted mowing decks; this is a versatile machine for any application. The model comes with 3 auxillary valve levers in place of the joystick shown.
23hp (16.8kW) 540kg at ball ends Independent PTO, high ground clearance, includes auxillary hydraulic valve with two double acting spools, easily attached/detached mower deck. Choice of either Agricultural or Turf Tyres. Options available Mid mounted decks, front buckets, rear implements.
Package without rear outlets
Free Local Delivery Within 30 Miles of Nottingham by our own Driver to your door fully built and ready to Go to work

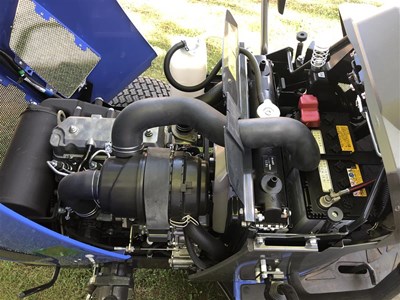

Power Engine: Type Diesel indirect injection, overhead valve
Displacement 1123cc
No of cylinders 3
Power 16.8kW (23hp) at 2600rpm
Fuel capacity 25ltr
Rated engine speed 2600rpm
Transmission Type
Hydrostatic Gear forward/reverse 2/2
Speed 0 to 14.3km/h (8.8mph)
Driven Wheels 4WD
Differential Lock Standard
Brakes Type Wet discs
Tyres Type Turf or Semi-Ag or Ind
Front 18 x 8.50-10
Rear 26 x 12.0-12
PTO Engagement Hydraulic
Rear PTO at engine rpm 540 @ 2532rpm
Mid PTO at engine rpm 2000 @ 2476rpm
Hydraulics Steering Hydrostatic (power)
Main System Transmission mounted gear pup with flow divider
Max output 24 ltr/min (5.1gal/min) @ 2500rpm

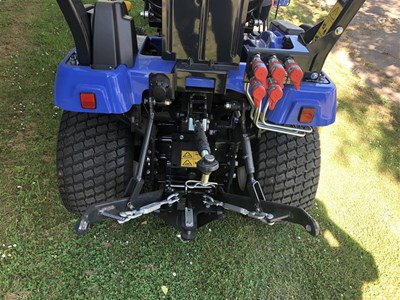

Three point lift Category 1
Lift Capacity 540kg (1190lb) at ball end
ROPS Type Rear foldable
Dimensions Length 2.58m
Width 1.22m
Height with ROPS 2.352m (1.61m folded)
Weight with ROPS 690kg
Ground Clearance 215mm (8.4”)

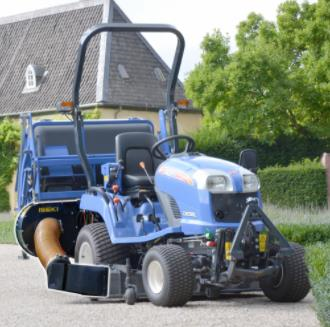

Optional Equipment 550 litre low dump collector with 540rpm blower and collector frame available

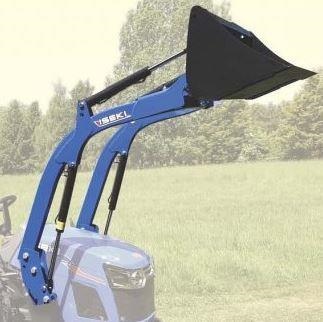

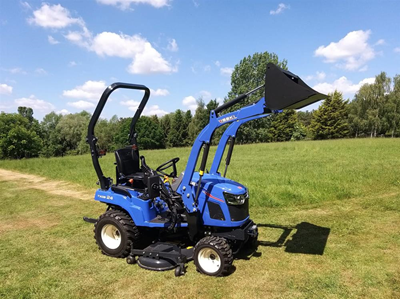

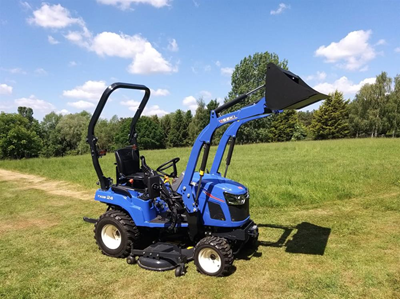

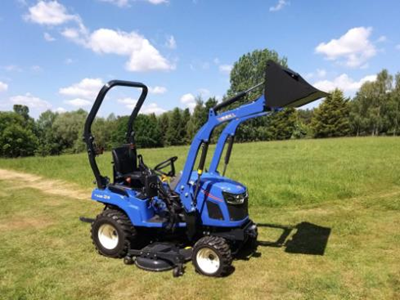

MX Loader plus a range of buckets, grabs and forks.

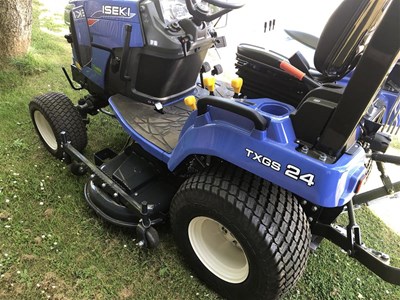

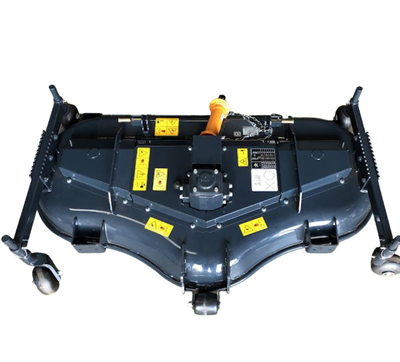

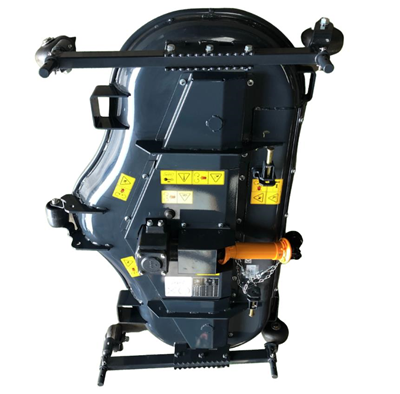

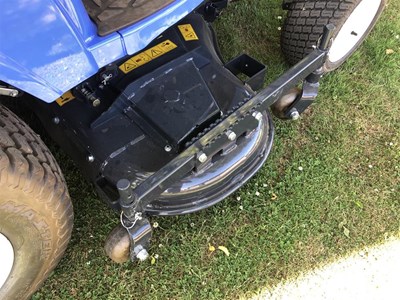

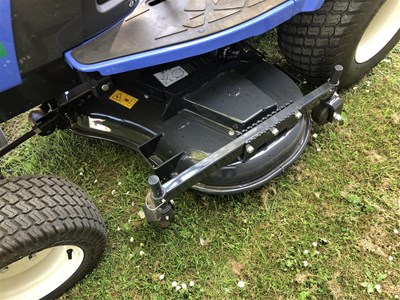

Mid-mount decks - rear or side discharge.
