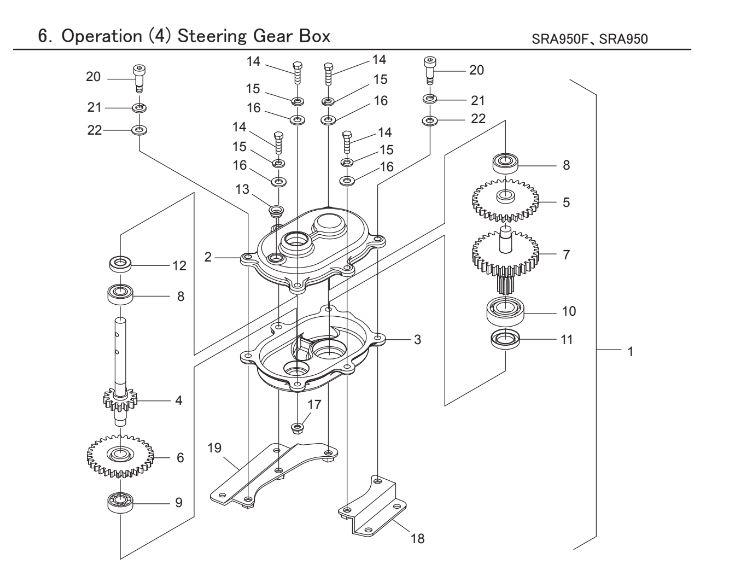

OPERATION (4) STEERING GEAR BOX

OPERATION (4) STEERING GEAR BOX assembly details for Iseki SRA950F-950 RIDE ON BRUSHCUTTER SRA 800 - 950F model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00106756302001STEERING GEAR BOX ASSYN/A POA
00206756302010STEERING GEAR BOX (UPPER)N/A POA
00306756302020STEERING GEAR BOX (LOWER)N/A POA
00406756312100INPUT SHAFT N COMPN/A POA
00506756312200GEAR (A) N COMPN/A POA
00606756312300GEAR (B) N COMPN/A POA
00706756312400OUTPUT SHAFT N COMPN/A POA
008V6001506202BEARINGN/A POA
009V6001106202BEARING 6202N/A POA
010V6001106005BEARING 6005N/A POA
011V7441254007OIL SEAL TC25407N/A POA
012V7441153007OIL SEAL TC25407N/A POA
01304551300390PE CAP (16)N/A POA
014V2014608030BOLT M8X30N/A POA
015V4011600080SPRING WASHER 8N/A POA
016V4112600080WASHER 8N/A POA
017V3622600080FLANGE NUT M8N/A POA
01806756302500STAY (FRONT) COMPN/A POA
01906756302600STAY (REAR) COMPN/A POA
02006756302030BOLT (10X20)N/A POA
021V4011600100SPRING WASHER 10N/A POA
022V4102600100WASHER 10N/A POA
