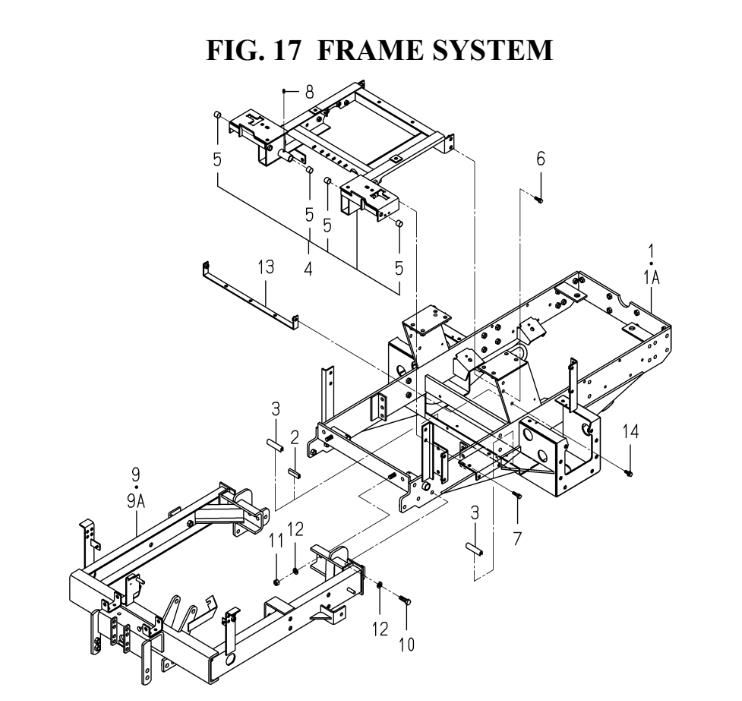

FRAME SYSTEM(1752-410-0100)

FRAME SYSTEM(1752-410-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-110-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175241020010FRAME/LOWER COMP(-481)N/A POA
001A175241020020FRAME/LOWER COMPN/A POA
002366620200500PROTECTOR (SXG19 -1793) (SXG22 -640) (SXG19 1794-) (SXG22 641-) (-194)N/A POA
003P11320100700TRIM/70N/A POA
004175241035010FRAME/SEAT ASSYN/A POA
005365920320410BUSH/17X19X15N/A POA
006V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
007V21156100300BOLT,S/M10X30/7T (-469)N/A POA
008V76015000000NIPPLE, GREASE£3.96 Add to
009175241040000FRAME/FRONT COMPN/A POA
009A175241040010FRAME/FRONT COMP (-100334)N/A POA
010V20136120350BOLT/M12X35/7T (SXG22 -35)£2.59 Add to
011V30446001200NUT/M12/7T£3.48 Add to
012V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
013175241050000PLATE COMPN/A POA
014V21136080250BOLT,SP/M8X25£1.90 Add to
