WATER PUMP(6005-420A-0100)

WATER PUMP(6005-420A-0100) assembly details for Iseki ENGINE(E3CDVG02) PC SZ330 (1752-097-110-10) SZ330 model

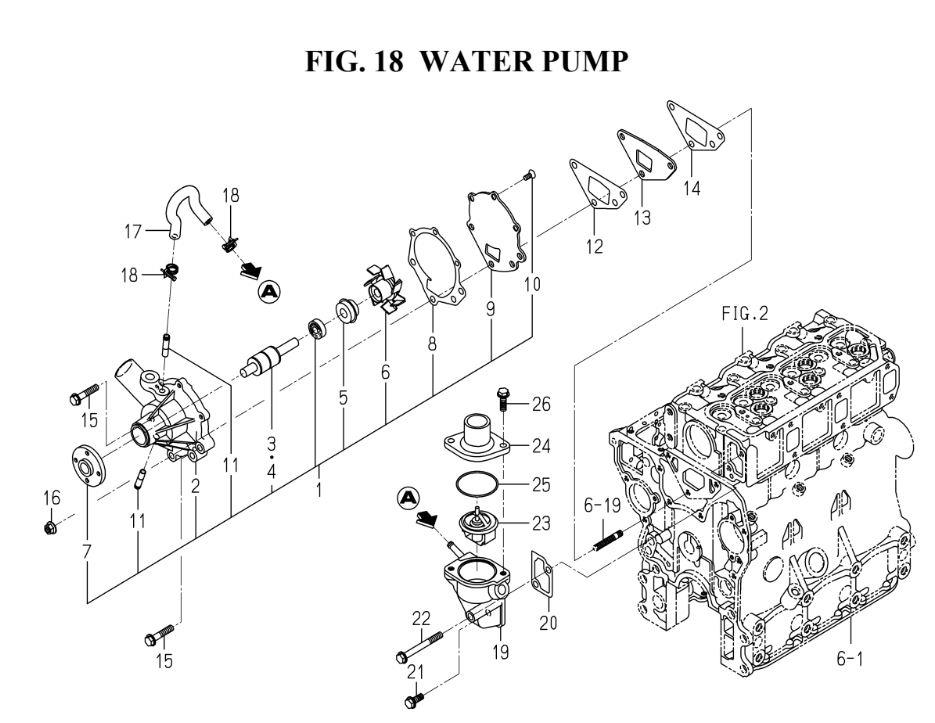

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	621361000440	WATERPUMP ASSY(-218006)	N/A	POA
002	621361100320	BODY/WATER PUMP	£98.48	Add to
003	621363100200	BEARING/WATER PUMP	N/A	POA
004	621363100500	BEARING/WATER PUMP	£38.97	Add to
005	621362200210	SEAL SET/WATER PUMP (-218006)	£29.38	Add to
006	621362100300	ROTOR/WATER PUMP	£30.87	Add to
007	621364200200	SEAL/WATER PUMP PULLEY	£18.08	Add to
008	621361300210	GASKET	£12.22	Add to
009	621361200400	PLATE/WATER PUMP	£19.12	Add to
010	621361900300	SCREW/WATER PUMP	£3.27	Add to
011	621361900200	PIPE/WATER PUMP	£3.06	Add to
012	621361400110	GASKET,WATER PUMP	£7.56	Add to
013	621361900710	SPACER/WATER PUMP	N/A	POA
014	621361400110	GASKET,WATER PUMP	£7.56	Add to
015	V23136080400	FLANGEBOLT/M8X40	£2.28	Add to
016	381740100100	NUT/M08 (206026-)	£1.53	Add to
017	621372901310	HOSE/RUBBER	£10.40	Add to
018	J06121001500	CLAMP/WIRE/10-15 (-100135)	£5.44	Add to
019	621371600150	HOUSING/THERMOSTAT (-215523)	N/A	POA
020	621374300210	GASKET/HOUSING	£9.50	Add to
021	V23136080200	FLANGEBOLT/M8X20	£1.66	Add to
022	V23136080750	FLANGEBOLT/M8X75	£2.38	Add to
023	651377002210	THERMOSTAT	£48.75	Add to
024	621371100320	PIPE, WATER OUTLET	N/A	POA
025	V72310200550	O-RING/1A,S55	£3.10	Add to
026	V23136080250	FLANGEBOLT/M8X25 (SXG19 9114-) (SXG22 3050-)	£1.61	Add to
