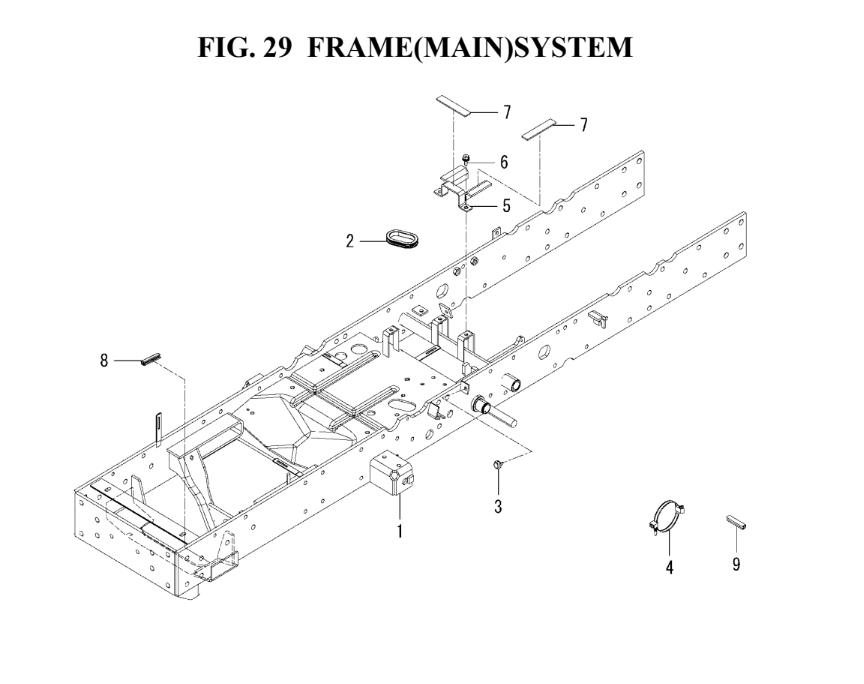

FRAME(MAIN)SYSTEM(1845-410-0100)

FRAME(MAIN)SYSTEM(1845-410-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184541021000FRAME/MAIN/E4 COMPN/A POA
002183641000100GROMMET (53X59X06)N/A POA
003183641000210INSULATOR/STOPPERN/A POA
004156066600400BAND£1.77 Add to
005183641045000STAY/FLOOR COMPN/A POA
006V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
007183611104500INSULATOR/20X100N/A POA
008182110200700PAD/50N/A POA
009183661104600INSULATOR/30N/A POA
