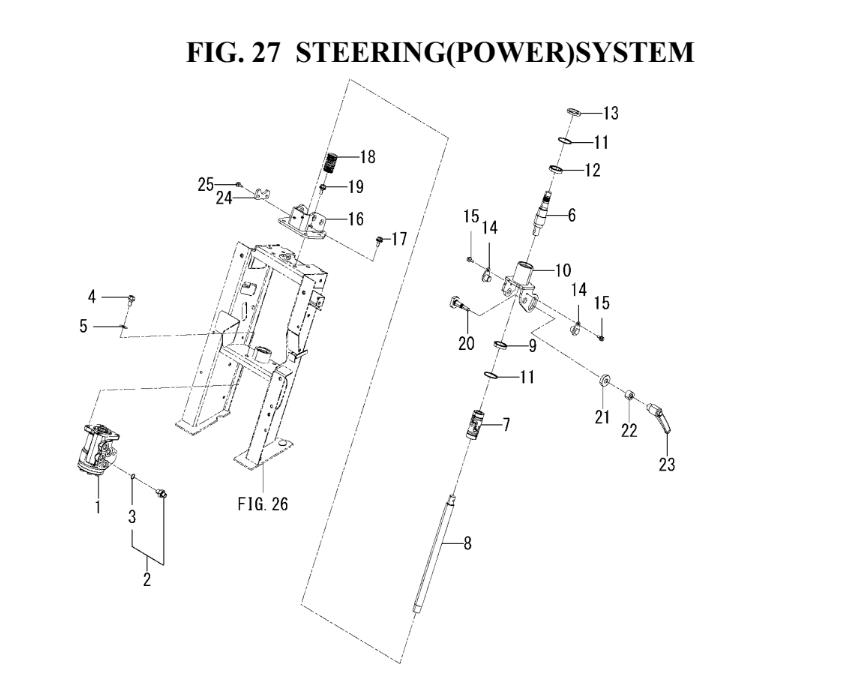

STEERING(POWER)SYSTEM(1836-407A-0100)

STEERING(POWER)SYSTEM(1836-407A-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001183640741000CONTROLLER/STEERINGN/A POA
002183640756000ADAPTER/G1/4 ASSYN/A POA
003V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
004183610100100BOLT/S/7N/A POA
005V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
006183640704810SHAFT/STEERING/UPPERN/A POA
007183640755000JOINT/16 ASSYN/A POA
008183640704900SHAFT/STEERING/LOWERN/A POA
009172527302400BEARING/BALLN/A POA
010183640752010BRACKET/STEERING COMPN/A POA
011V70514003700RING,SNAP/37 CN/A POA
012172527302400BEARING/BALLN/A POA
013V74212538050SEAL,OIL/VC25385N/A POA
014183640754000PIN/SWING COMPN/A POA
015V21066060120BOLT,SP/M6X12/7TN/A POA
016183640751000BASE/COLUMN COMPN/A POA
017V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
018183640704100SPRING/HC072N/A POA
019V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
020183640704400BOLT/HANDOLN/A POA
021183640704300WASHER/LOCKN/A POA
022183640704500SLEEVEN/A POA
023180940500800LEVER/TILT£66.41 Add to
024183640704610PLATE/STOPPERN/A POA
025V23036060120FLANGEBOLT/M6X12 (226314-)£1.59 Add to
