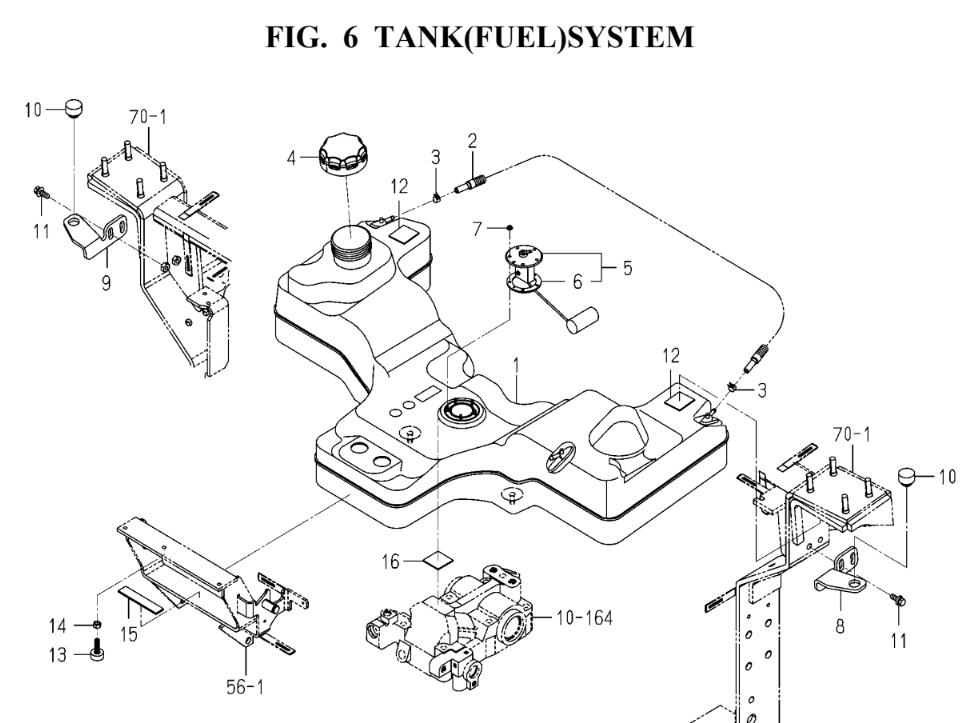

TANK(FUEL)SYSTEM(1845-111-0100)

TANK(FUEL)SYSTEM(1845-111-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00117251104100TANK/FUELN/A POA
002183611100300HOSE/06X10X960N/A POA
003J06210411100CLIP/HOSE/10.4-11.1N/A POA
004173911131000CAP/TANK/NONLEA ASSYN/A POA
005172511120000GAUGE/FUEL ASSY£40.69 Add to
006141662103700PACKING/RUBBER£19.57 Add to
007V36026000400NUT/WASHER/M4 (100039-)N/A POA
008183611104200BRACKET/TANK/LHN/A POA
009183611104300BRACKET/TANK/RHN/A POA
010183611100410INSULATORN/A POA
011V21136080250BOLT,SP/M8X25£1.90 Add to
012142711122900CUSHION,RUBBER£3.35 Add to
013156063002400INSULATOR (-630)£4.87 Add to
014V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
015183611104500INSULATOR/20X100N/A POA
016142711122900CUSHION,RUBBER£3.35 Add to
