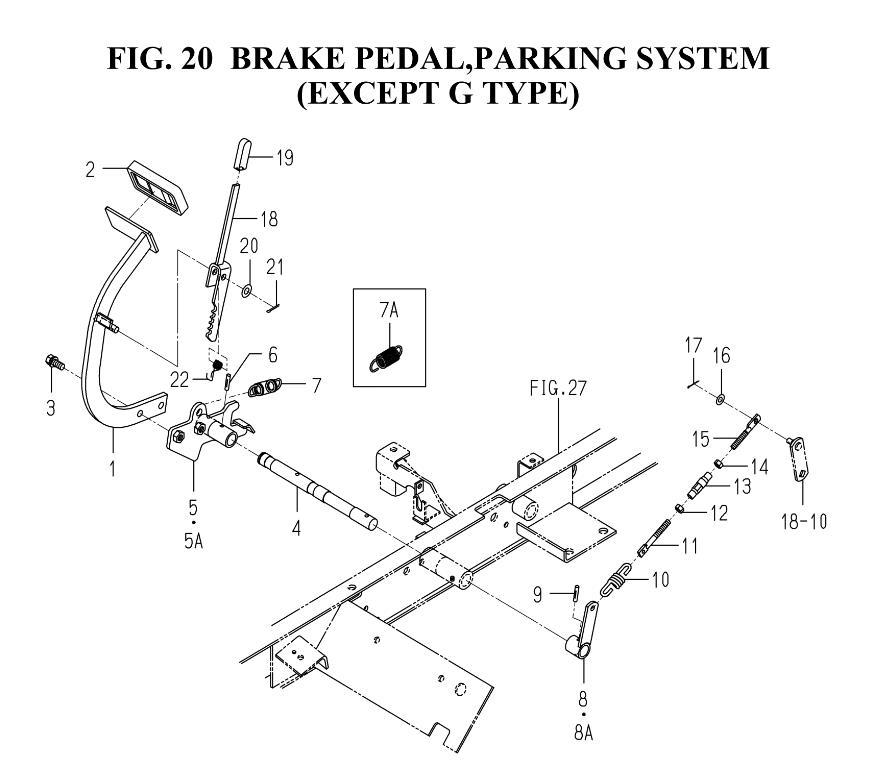

BRAKE PEDAL,PARKING SYSTEM(EXCEPT G TYPE)(1728-312-0100)(1608-313-0100)

BRAKE PEDAL,PARKING SYSTEM(EXCEPT G TYPE)(1728-312-0100)(1608-313-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001172831220000PEDAL/BRAKE£40.07 Add to
002163631301110PAD/BRAKE£8.24 Add to
003V21126100250BOLT,S/M10X25£2.12 Add to
004172831200100SHAFT/BRAKE£31.01 Add to
005172831221000ARM/BRAKE/PEDAL COMP (SXG19 -621) (SXG22 -115)N/A POA
005A172831221010ARM/BRAKE/PEDAL COMP (SXG19 622-) (SXG22 116-)£66.69 Add to
006148030400200PIN 6X28 (SXG19 -10124) (SXG22 -3324)N/A POA
007156040400230SPRING (SXG19 -1520) (SXG22 -581)£4.84 Add to
007A214931201560SPRING/HE068 (SXG19 1471-) (SXG22 582-)£20.09 Add to
008172831222000ARM/BRAKE COMP (SXG19 -621) (SXG22 -115)N/A POA
008A172831222010ARM/BRAKE COMP (SXG19 622-) (SXG22 116-)£15.09 Add to
009148030400200PIN 6X28 (SXG19 -10124) (SXG22 -3324)N/A POA
010214451900910SPRING/HE060£8.82 Add to
011310421021300ROD/M08X67£9.68 Add to
012V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
013144412200200TURNBUCKLE/M8£11.70 Add to
014156013200730NUT/LH/M08£2.30 Add to
015172831200200ROD/M08/LHX60£6.64 Add to
017V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
018160831320010PLATE(PARKING) COMP£14.53 Add to
019217121300200GRIP/04X12X50£5.63 Add to
020V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
021V50016300200PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)£1.52 Add to
022159331205620SPRING/HT013£3.15 Add to
