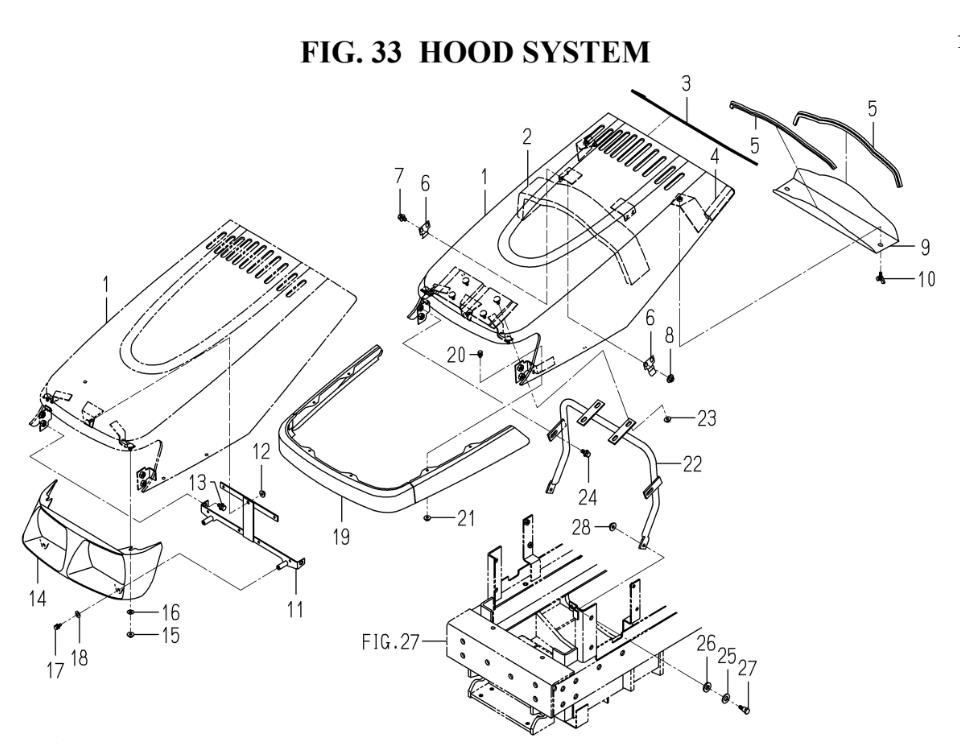

HOOD SYSTEM (1728-601A-0100)

HOOD SYSTEM (1728-601A-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001173960122000HOOD COMP£562.30 Add to
002172560100300SEAL/70X20X680£15.83 Add to
003170560101800INSULATOR£29.57 Add to
004170560102100SEAL/20X20X100£3.24 Add to
005159360107200TRIM/1X6X360£5.78 Add to
006170360100910SPRING£7.61 Add to
007V21136080160BOLT,SP/M8X16£2.10 Add to
008V36226000800NUT/WASHER/M8£1.77 Add to
009170560100700NET/HOOD£68.79 Add to
010V27336060150BOLT/M6X15N/A POA
011173960221000BRACKET/LAMP COMP£59.65 Add to
012V36126000600NUT,WASHER/M6£1.64 Add to
013V21136080160BOLT,SP/M8X16£2.10 Add to
014173960200400HOOD/LAMP£71.06 Add to
015V36126000600NUT,WASHER/M6£1.64 Add to
017V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
019170560123001SPACER COMP£70.92 Add to
020V21036060120BOLT,SP/M6X12£1.85 Add to
021V36026000600NUT/WASHER/M6£1.47 Add to
022172560121000ARM/HOOD COMP£66.90 Add to
023V36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
024V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
025V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
026168962100700WASHER/12X26X04£4.04 Add to
027168962100800BOLT£8.49 Add to
028V36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
