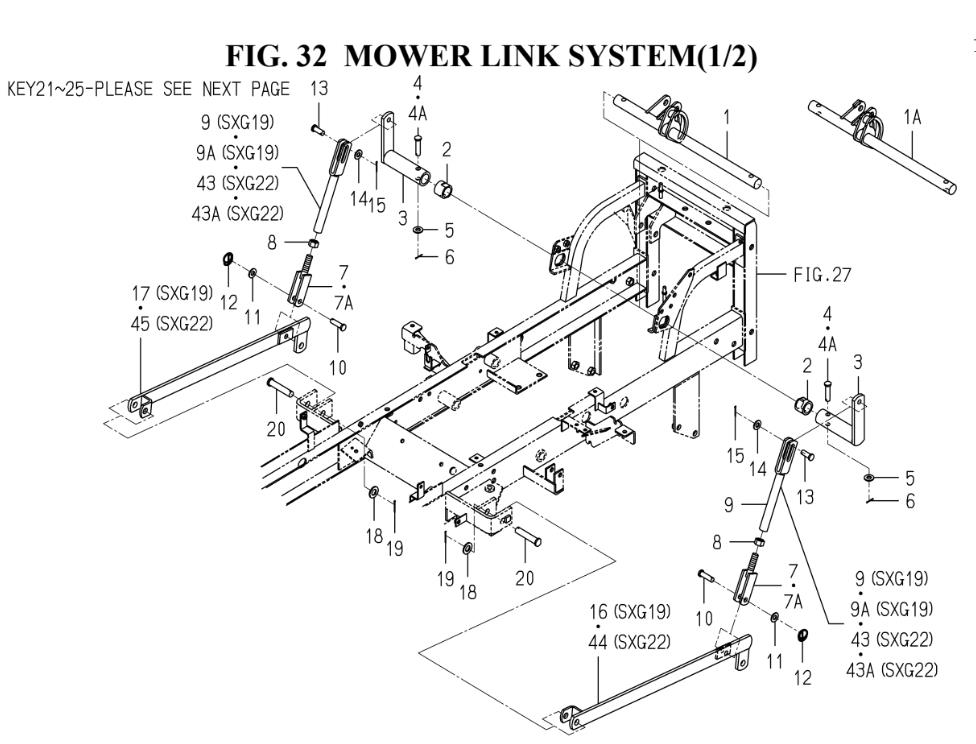

MOWER LINK SYSTEM (1/2)(1728-553-0100,1728-553A-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 001 | 172855321000 | SHAFT/LIFT COMP (SXG19 -1190)(SXG22 -534) | £137.31 | Add to |
| 001A | 172855321010 | SHAFT/LIFT COMP (SXG19 1191-) (SXG22 535-) | £94.33 | Add to |
| 002 | 172555300200 | HUB/28X38X30 | £21.28 | Add to |
| 003 | 172855324000 | ARM/LIFT COMP | £55.84 | Add to |
| 004 | 172555300300 | PIN/12X50 (SXG19 -1426) (SXG22 -579) | £4.59 | Add to |
| 004A | 796361100300 | PIN/12X48 (SXG19 1427-) (SXG22 580-) | £17.25 | Add to |
| 005 | V41126001200 | WASHER,PL/M12 (SSM54 100001-) | £2.64 | Add to |
| 006 | V50016300200 | PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116) | £1.52 | Add to |
| 007 | 172855325000 | LINK/LOWER COMP (SXG19 -1326) (SXG22 -579) | £23.77 | Add to |
| 007A | 172855325010 | LINK/LOWER COMP (SXG19 1327-) (SXG22 580-) | N/A | POA |
| 008 | V33426001600 | NUT | N/A | POA |
| 009 | 172855326000 | LINK/UPPER/19 COMP (SXG19 -1324) | £31.77 | Add to |
| 009A | 172855326010 | LINK/UPPER/19 COMP (SXG19 1325-) | N/A | POA |
| 010 | 865760805310 | PIN/12X42 | £12.95 | Add to |
| 011 | V41126001200 | WASHER,PL/M12 (SSM54 100001-) | £2.64 | Add to |
| 012 | 142731700300 | CLIP,PIN | £3.99 | Add to |
| 013 | 172855300700 | PIN/12X32 | N/A | POA |
| 014 | V41126001200 | WASHER,PL/M12 (SSM54 100001-) | £2.64 | Add to |
| 015 | V50016300200 | PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116) | £1.52 | Add to |
| 016 | 172855328010 | ARM/MID/LH/19 COMP | £56.36 | Add to |
| 017 | 172855329010 | ARM/MID/RH/19 COMP | £49.33 | Add to |
| 018 | V41126001600 | WASHER,PL/M16 | £1.67 | Add to |
| 019 | V50016300300 | PIN,SPLIT/3X30 (-511) | £1.64 | Add to |
| 020 | 172855301100 | PIN/16X78 | £11.11 | Add to |
| 021 | 172855300100 | STAY/ADJUST | £14.62 | Add to |
| 022 | V20136120300 | BOLT/M12X30/7T | N/A | POA |
| 023 | V40116001200 | WASHER,SP/M12 (SSM60 -100000) | £1.64 | Add to |
| 024 | 172855323000 | SHAFT/ADJUST COMP (SXG19 -3623) (SXG22 -1178) | £38.15 | Add to |
| 024A | 172855323010 | SHAFT/ADJUST COMP (SXG19 3624-) (SXG22 1179-) | £35.20 | Add to |
| 025 | V50016250250 | PIN,SPLIT/2.5X25 | N/A | POA |
