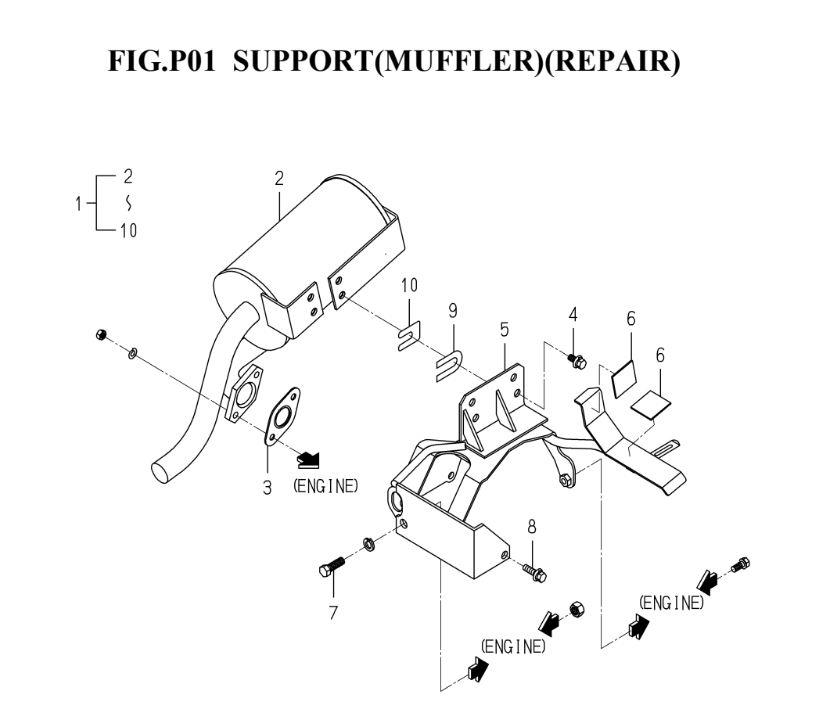

SUPPORT(MUFFLER)(REPAIR)(1782-103Z-0100)

SUPPORT(MUFFLER)(REPAIR)(1782-103Z-0100) assembly details for Iseki CHASSIS SXG15(F2 & C TYPE)(1782-095-200-00) SXG15 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001178210352000SUPPORT/MUFFLER SETN/A POA
002178210330010MUFFLER COMP£519.13 Add to
003365930100100GASKET£8.72 Add to
004V21166080200BOLT,SP/M8X20/7T£2.69 Add to
005178210351010BRACKET/MUFFLER COMPN/A POA
006142711122900CUSHION,RUBBER£3.35 Add to
007V20336100350BOLT (SXG19 5486-) (SXG22 1870-)N/A POA
008V21166080300BOLT,SP/M8X30/7T£2.56 Add to
009381430202300SHIM,1.2N/A POA
010172510300200SHIM/0.6/B (SXG19 -5485 5486-) (SXG22 -1869 1870-)N/A POA
