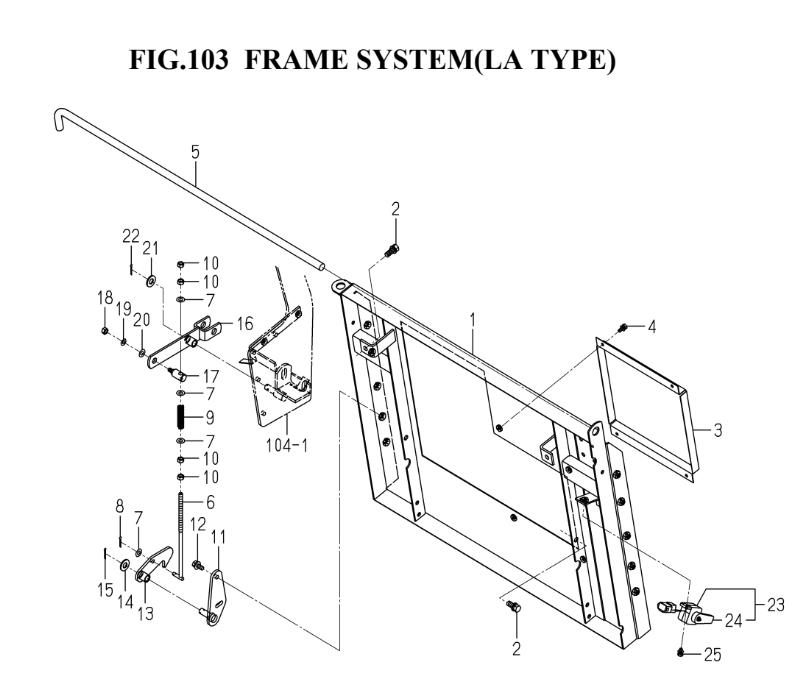

FRAME SYSTEM(LA TYPE)(8671-155-0100)

FRAME SYSTEM(LA TYPE)(8671-155-0100) assembly details for Iseki COLLECTOR SBC400X (8671-095-100-00) SXG15 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867110521020	FRAME/COLLECTOR COMP	N/A	POA
002	V21126100250	BOLT,S/M10X25	£2.12	Add to
003	867110500210	COVER/CASE/COUNTER	N/A	POA
004	V21036060120	BOLT,SP/M6X12	£1.85	Add to
005	867110500300	BAR	£25.76	Add to
006	867115527000	ROD/LOCK COMP	N/A	POA
008	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
009	139640400620	SPRING/HC054	£3.09	Add to
010	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
011	867115528000	BRACKET/LOCK/RH COMP	N/A	POA
012	V21166080200	BOLT,SP/M8X20/7T	£2.69	Add to
013	867115529000	PLATE/HOOK COMP	£34.53	Add to
014	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
015	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
016	867115531000	LINK/LOCK COMP	£48.41	Add to
017	859621300210	PIN(JOINT)	£15.19	Add to
018	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
019	V40116000800	WASHER,SP/M8 (100545-)	£1.60	Add to
021	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
022	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
023	171668033000	SWITCH/LEVER ASSY (-100531)	£73.08	Add to
024	171668022200	ARM	£6.13	Add to
025	V12036600160	SCREW,SP/M6X16	£1.71	Add to
