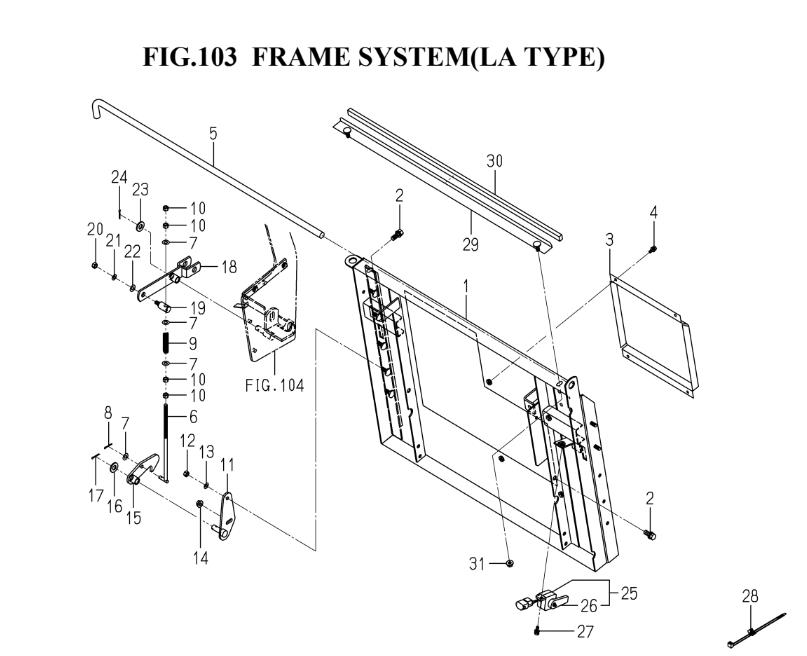

FRAME SYSTEM(LA TYPE)(8671-155A-0100)

FRAME SYSTEM(LA TYPE)(8671-155A-0100) assembly details for Iseki COLLECTOR SBC400X (8671-095-200-00) SXG15 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867110531000	FRAME/COLLECTOR COMP	N/A	POA
002	V21126100250	BOLT,S/M10X25	£2.12	Add to
003	867110500220	COVER/CASE/COUNTER	£27.04	Add to
004	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
005	867110500300	BAR	£25.76	Add to
006	867115527010	ROD/LOCK COMP	£17.38	Add to
008	V50016250200	PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)	£1.64	Add to
009	139640400620	SPRING/HC054	£3.09	Add to
010	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
011	867115528010	BRACKET/LOCK/RH COMP	£34.53	Add to
012	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
013	V40116000800	WASHER,SP/M8 (100545-)	£1.60	Add to
014	V36226000800	NUT/WASHER/M8	£1.77	Add to
015	867115529000	PLATE/HOOK COMP	£34.53	Add to
016	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
017	V50016250200	PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)	£1.64	Add to
018	867115531000	LINK/LOCK COMP	£48.41	Add to
019	859621300210	PIN(JOINT)	£15.19	Add to
020	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
021	V40116000800	WASHER,SP/M8 (100545-)	£1.60	Add to
023	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
024	V50016250200	PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)	£1.64	Add to
025	171668033000	SWITCH/LEVER ASSY (-100531)	£73.08	Add to
026	171668022200	ARM	£6.13	Add to
027	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
028	156066600400	BAND	£1.77	Add to
029	867110529000	PLATE/L/780X15 COMP	N/A	POA
030	433441130800	TAPE/13X10X7	£5.11	Add to
031	V36226000800	NUT/WASHER/M8	£1.77	Add to
