Hand Held Accessories (2)

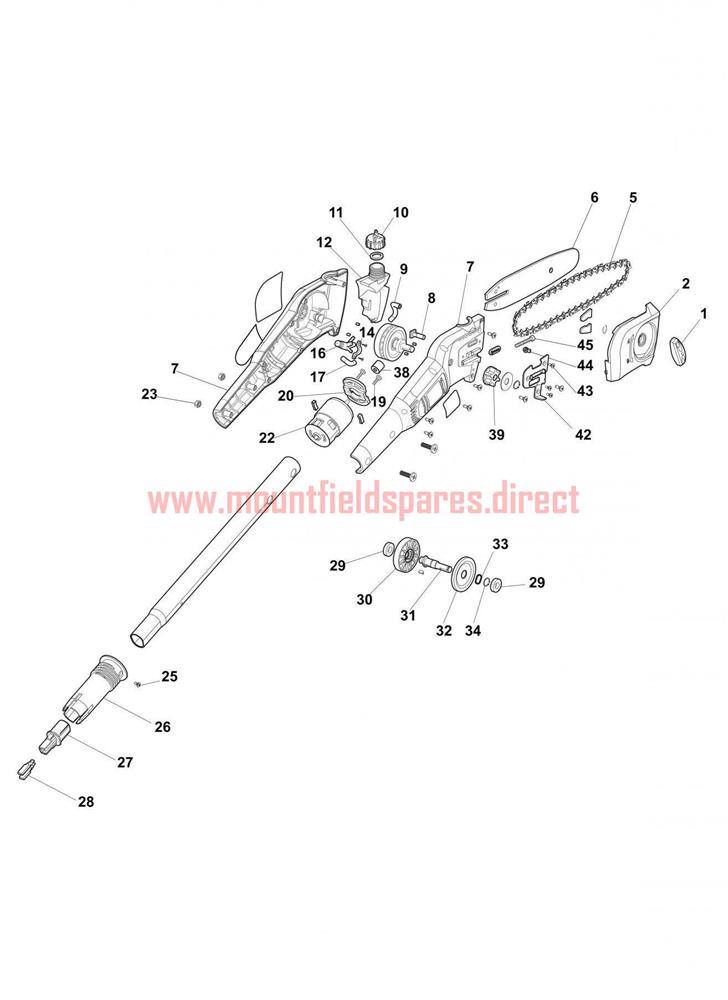

Hand Held Accessories (2) assembly details for Mountfield MM 48 Li MULTITOOL 277340003 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803816/0KNOB [SILVER GREY]£3.69 Add to
002118803451/0SIDE COVER [GREY]£4.10 Add to
0051430133-01ACHAIN 91VG-33E, N1C-BL£19.37 Add to
006118804540/0GUIDE BAR 8"-3/8"£25.52 Add to
007118803787/0Housing Assy£10.82 Add to
008118803394/0TENSION BOLT (OBSOLETE) (OBSOLETE)N/A
009118803328/0INPUT OIL TUBE£2.00 Add to
010118803802/0OIL TANK CAP [SILVER GREY]£1.79 Add to
011118803327/0OIL TANK WASHER£1.79 Add to
012118803316/0OIL TANK£3.00 Add to
014118803436/0Clamp£4.19 Add to
016118803375/0OIL PUMP ASSEMBLY£6.23 Add to
017118803329/0OUTPUT OIL TUBE£1.79 Add to
019112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
020118803357/0MOTOR FIXED BOARD (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
022118803368/048V MOTOR (OBSOLETE) (OBSOLETE)N/A
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0256981431Screw (OBSOLETE) (OBSOLETE)N/A
026118803806/0Clamp£4.61 Add to
027118803309/0MALE CONNECTOR£1.79 Add to
028118803262/0Terminal | Insert£20.09 Add to
029118803246/0BEARING£2.18 Add to
030118803318/0Cam£4.87 Add to
031118803392/0Output shaft (OBSOLETE)N/A
032118805005/0MOTOR ASSY POLE SAW MT 24V£87.85 Add to
033112520032/0WASHER 12 x 18 x 1£2.06 Add to
034112608600/0CIRCLIP D=12£2.08 Add to
038118803249/0SMALL GEAR (OBSOLETE) (OBSOLETE)N/A
039118803294/0SPROCKET£5.29 Add to
042118803272/0CHAIN BAR PLATE£3.15 Add to
0436981268SCREW£2.00 Add to
044118803398/0TENSION SCREW£1.79 Add to
