Battery Brushcutter

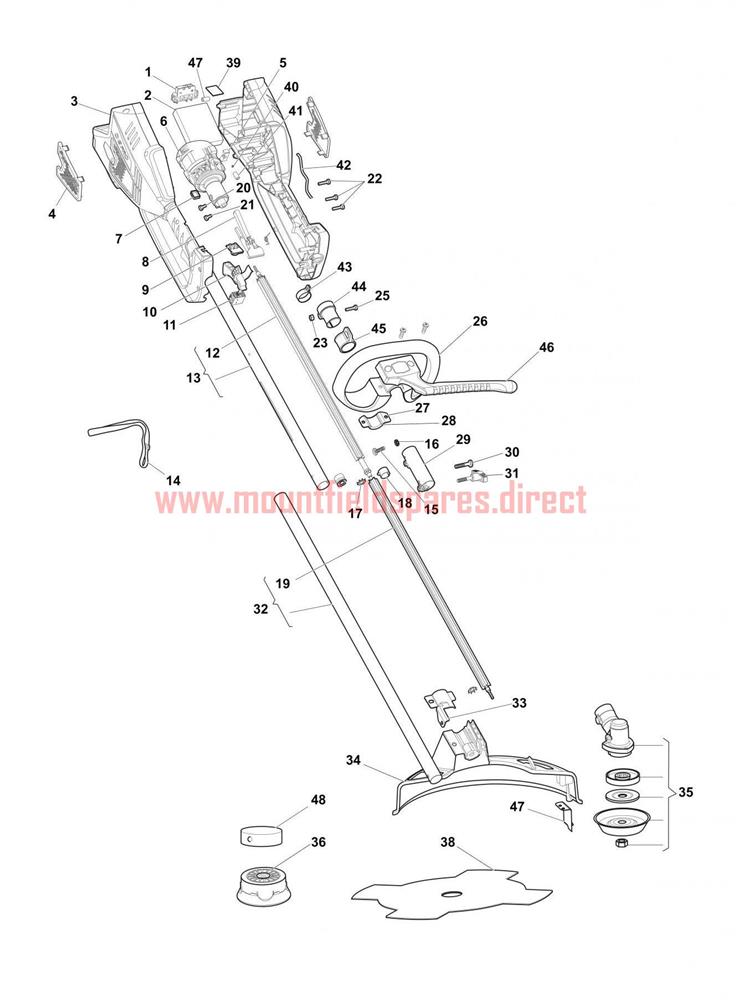

Battery Brushcutter assembly details for Mountfield MB 48 Li 272361003 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803304/0INSERT BLOCK£7.63 Add to
002118804126/0PCB BOARD 48V£136.64 Add to
003118803789/0Cover Left and Right Part£27.93 Add to
004118803791/0Cover£5.08 Add to
005118804125/0RUBBER WASHER£2.23 Add to
006118803366/0MOTOR (OBSOLETE)N/A
007118804124/0RUBBER WASHER£1.83 Add to
008118803410/0SELF-LOCK BUTTON£1.79 Add to
009118803293/0SELF-LOCK SPRING£2.00 Add to
010118803799/0Trigger£4.74 Add to
011118803473/0VARIABLE SPEED SWITCH£15.13 Add to
012118803236/0UPPER FLEXIBLE SHAFT ASSEMBLY£20.01 Add to
013118804118/0UPPER TRANSMISSION TUBE ASSEMBLY£28.90 Add to
014118803347/0SHOULDER STRAP£6.69 Add to
015112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
0166981300Washer (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
017118803284/0RING WASHER£1.79 Add to
018118803283/0RING WASHER£1.79 Add to
019118803382/0LOWER FLEXIBLE SHAFT ASSMEBLY£18.61 Add to
020112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
022112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
023112291000/0HEXAGON NUT M5£2.06 Add to
025112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
026118803418/1FRONT HANDLE£13.97 Add to
027118803270/0CLAMP£2.32 Add to
028118803326/0GROMMET£1.79 Add to
029118803274/0CLAMP (OBSOLETE) (OBSOLETE)N/A
0309988-3545-12SCREW U6S 1/4 UNC x 45£2.78 Add to
031118803425/0T KNOB [YELLOW] (OBSOLETE) (OBSOLETE)N/A
032118804119/0LOWER TRANSMISSION TUBE ASSEMBLY£31.89 Add to
033118803282/0ATTACHING BRACKET£2.18 Add to
034118803449/0SAFETY GUARD£13.91 Add to
035118803239/1GEARBOX ASSEMBLY£60.24 Add to
036118803238/0TRIMMER HEAD ASSEMBLY£24.57 Add to
038118804120/04 TOOTH BLADE (OBSOLETE) (OBSOLETE)N/A
039118804115/0SHOCK ABSORBING SPONGE£4.10 Add to
040118804116/0U CONNECTING PIN£1.58 Add to
041118804114/0HEAT SHRINKABLE TUBE£2.47 Add to
042118804117/0CONDUCTOR WIRE£34.40 Add to
043118804121/0RING CLIP£2.87 Add to
044118804130/0HARNESS CLIP SUPPORT£2.61 Add to
045118804129/0HARNESS CLIP£2.47 Add to
046118804128/0FRONT HANDLE BARRIER£2.74 Add to
047118804122/0LINE CUTTER BLADE£2.61 Add to
048118804123/0SPOOL COVER£6.27 Add to
049118810717/0NYLON HEAD BC 48 LI 2018£24.18 Add to
