HandHeld Accessories (1)

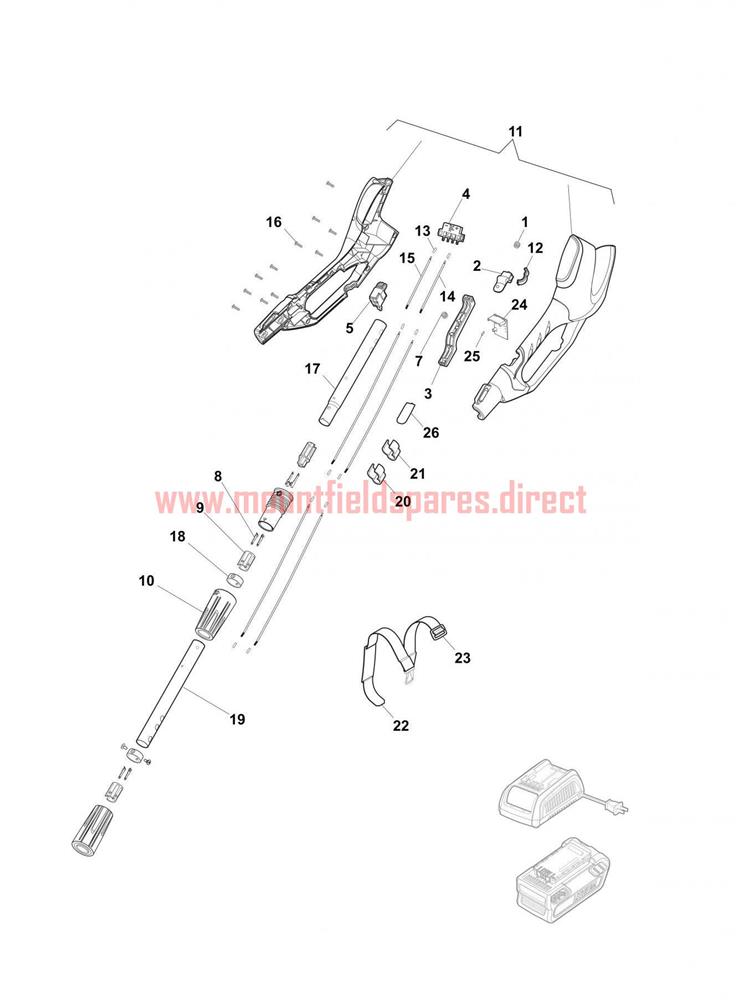

HandHeld Accessories (1) assembly details for Mountfield MM 48 Li 277340003 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803228/0SELF-LOCK SPRING£1.79 Add to
002118803810/0Button£4.55 Add to
003118803820/0Button£4.90 Add to
004118803304/0INSERT BLOCK£7.63 Add to
005118803472/1MICROSWITCH (OBSOLETE) (OBSOLETE)N/A
007118803475/0Spring£4.01 Add to
008118803268/0BATTERY CONNECTER£2.00 Add to
009118805009/0HANDLE JOINT KIT MT 24V-48V£18.27 Add to
011118803776/0HANDLE ASSEMBLY [RED] (OBSOLETE) (OBSOLETE)N/A
013118804114/0HEAT SHRINKABLE TUBE£2.47 Add to
014118804143/0ELECTRIC CABLE - POSITIVE£9.07 Add to
015118804144/0ELECTRIC CABLE - NEGATIVE£7.71 Add to
016123878021/0TORX SCREW M4 x 14£1.79 Add to
017118804166/0TRANSMISSION TUBE£16.87 Add to
018118805009/0HANDLE JOINT KIT MT 24V-48V£18.27 Add to
019118804148/0TRANSMISSION TUBE£20.82 Add to
020118804156/0RUBBER MAT£3.24 Add to
021118804149/0SHOULDER STRAP TUBE LOCK£3.41 Add to
022118804145/0Straps componentsN/A POA
023118804165/0FAST TRIPPING CONNECTORS£6.58 Add to
024118804162/0PRINTED CIRCUIT BOARD£64.13 Add to
025118803335/0MAGNET RING£2.14 Add to
026118804175/0SPONGE£2.87 Add to
