HandHeld Accessories (2)

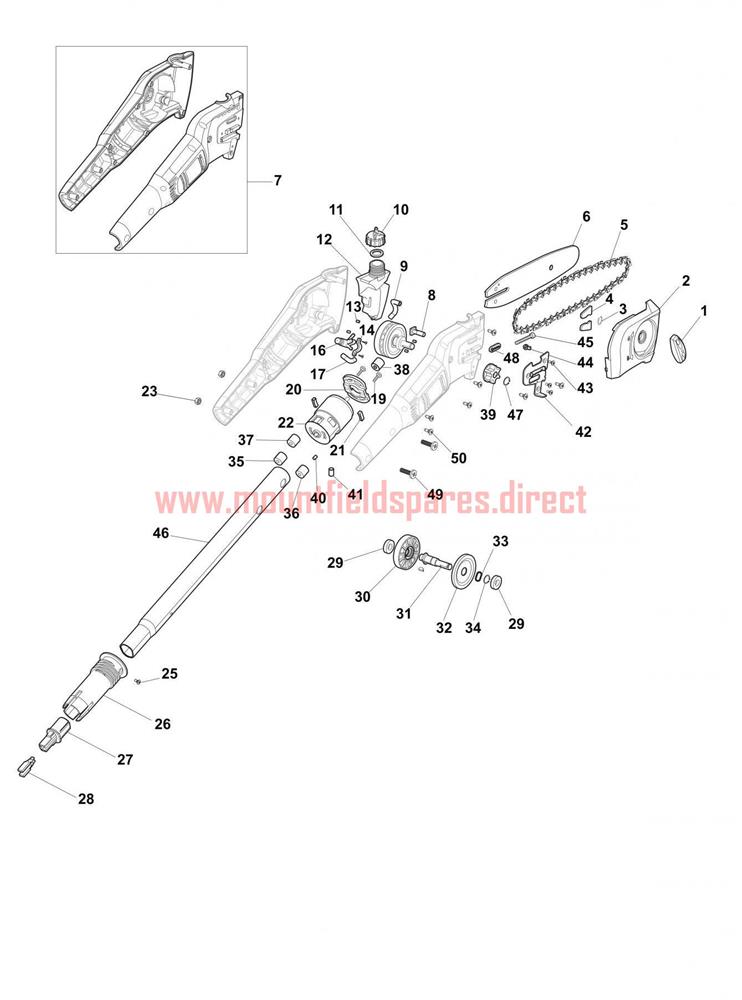

HandHeld Accessories (2) assembly details for Mountfield MM 48 Li 277340003 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803816/0KNOB [SILVER GREY]£3.69 Add to
002118803451/0SIDE COVER [GREY]£4.10 Add to
003118804147/0WASHER£1.58 Add to
004118804155/0STEEL BLOCK£1.79 Add to
007118803787/0Housing Assy£10.82 Add to
008118803394/0TENSION BOLT (OBSOLETE) (OBSOLETE)N/A
008118803394/0TENSION BOLT (OBSOLETE) (OBSOLETE)N/A
009118803328/0INPUT OIL TUBE£2.00 Add to
010118803802/0OIL TANK CAP [SILVER GREY]£1.79 Add to
011118803327/0OIL TANK WASHER£1.79 Add to
012118803316/0OIL TANK£3.00 Add to
013118804154/0NEEDLE BEARING RUBBER£1.58 Add to
014118803436/0Clamp£4.19 Add to
016118803375/0OIL PUMP ASSEMBLY£6.23 Add to
017118803329/0OUTPUT OIL TUBE£1.79 Add to
019112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
020118803357/0MOTOR FIXED BOARD (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
021118804152/0ANTI-VIBRATION RUBBER£1.79 Add to
022118803368/048V MOTOR (OBSOLETE) (OBSOLETE)N/A
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0256981431Screw (OBSOLETE) (OBSOLETE)N/A
026118803806/0Clamp£4.61 Add to
027118803309/0MALE CONNECTOR£1.79 Add to
028118803262/1TERMINAL£2.00 Add to
029118803246/0BEARING£2.18 Add to
030118804151/0CAM£4.10 Add to
031118803392/0Output shaft (OBSOLETE)N/A
032118805005/0MOTOR ASSY POLE SAW MT 24V£87.85 Add to
033118804146/0WAVE WASHER-NLA£1.58 Add to
034112608600/0CIRCLIP D=12£2.08 Add to
035118804158/0CIRCULAR SPACER£4.10 Add to
036118804157/0CYLINDRICAL MAGNETIC RING£3.64 Add to
037118804159/0COMMON MODE CIRCULAR£4.42 Add to
038118803249/0SMALL GEAR (OBSOLETE) (OBSOLETE)N/A
039118810453/0SPROCKET£3.89 Add to
040118803335/0MAGNET RING£2.14 Add to
041118850046/0MAGNETIC RING£5.61 Add to
042118803272/0CHAIN BAR PLATE£3.15 Add to
043112728449/0SELF-TAPPING SCREW TCB 2.9 x 9.5£1.79 Add to
044118804161/0CHAIN TENSIONER SCREW£1.79 Add to
045118803394/0TENSION BOLT (OBSOLETE) (OBSOLETE)N/A
046118803395/0ALUMINIUM TUBE£13.80 Add to
047118804142/0CIRCLIP D=10£1.58 Add to
048118804153/0WASHER£1.58 Add to
049112727793/0SCREW M6 x 30£2.06 Add to
050123878021/0TORX SCREW M4 x 14£1.79 Add to
