HandHeld Accessories (3)

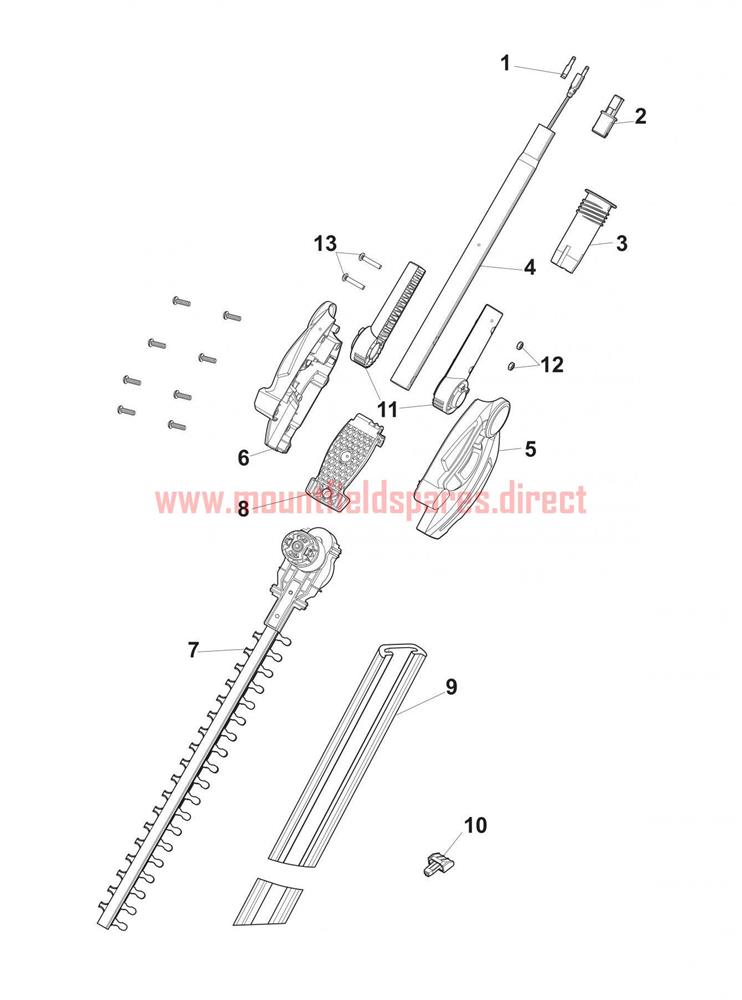

HandHeld Accessories (3) assembly details for Mountfield MM 48 Li 277340003 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803262/0Terminal | Insert£20.09 Add to
002118803309/0MALE CONNECTOR£1.79 Add to
003118803806/0Clamp£4.61 Add to
004118803395/0ALUMINIUM TUBE£13.80 Add to
005118803796/0LEFT HOUSING - MOUNTFIELD RED£7.63 Add to
006118803794/0RIGHT HOUSING - MOUNTFIELD RED£6.95 Add to
007118803390/0MOTOR AND BLADE ASSEMBLY (OBSOLETE)N/A
008118803363/0ROTATION LEVER [YELLOW]£7.51 Add to
009118803315/0BLADE COVER [GREY]£4.64 Add to
010118803413/0CAP£4.19 Add to
011118804163/0TURN COMPONENTS ASSEMBLY [GREY] (OBSOLETE) (OBSOLETE)N/A
012112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
013112727793/0SCREW M6 x 30£2.06 Add to
